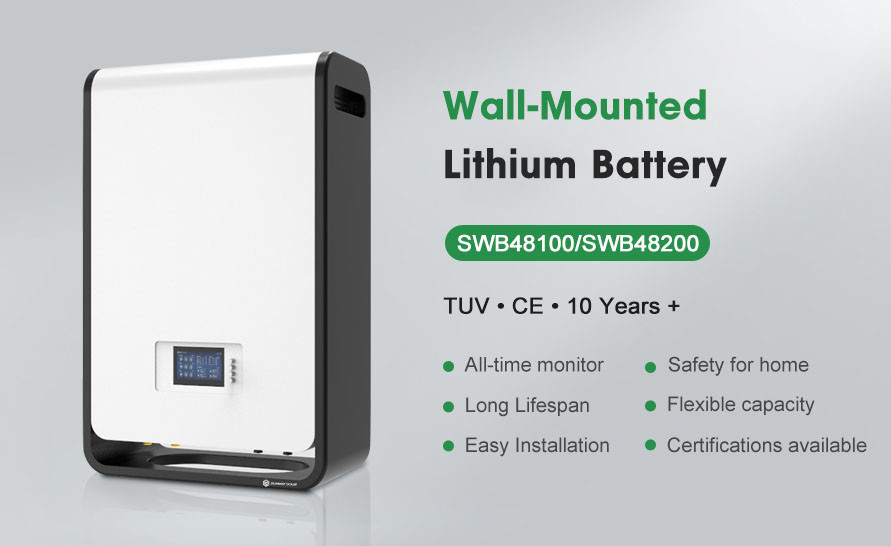

OEM ODM LiFePO4 lithium battery Household Powerwall Energy Storage System 5KWH 10KWH 15KWH 48V 100AH 200AH

Product Description

OEM ODM LiFePO4 lithium battery Household Powerwall Energy Storage System 5KWH 10KWH 15KWH 48V 100AH 200AH

If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.

Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.

● Compact Sze & LIght Welght
● HIgh Power Outout & Usable Energy Ratlo
● Modular DesIgn & Expandable System
● Safest Battery & Pertect Compatlillity
● Natural Coollng & Easy Installatlon
● Certlflcatlons Avallable

Nomal
Model	SWB48100	SWB48200
Battery Type	LiFePO4 (LFP)
Nominal Voltage (V)	51.2V
Nominal Capacity (WH)	5120WH	10240WH
Usable Capacity (WH)	4096WH/80%DOD	8192WH/80%DOD
Design Life	10+ Years (25℃/77℉)
Physical
Dimension(mm)	610*450*200	950*580*250
Weight(kg)	59	115
Electrical
Cycle Life	>6000, 25℃
Discharge Voltage(V)	40-58.4
Charge Voltage(V)	56-58.4
Charge/Discharge Current (A)	50A(Recomemended)
	100A(Max)
Internal Resistance	≤30mΩ
BMS
Power Consumption	<2W(Work)<100mW(Sleep)
Monitoring Parameters	System voltage, current, cell voltage, cell temperature, module temperature
SOC	Intelligent algorithm
Communication	CAN/RS-485/RS-232
Warranty
Product Warranty	5 Years
Performance Warranty	10 Years

To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:

:

FAQs:

Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!

Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed

Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.

Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.

Contact us for more informations!
