24V 60AH AGV robot lithium battery design

April 16, 2024

Latest company case about 24V 60AH AGV robot lithium battery design

AGV lithium battery is a green, environmentally friendly and durable lithium iron phosphate battery designed according to market demand, suitable for most types of storage equipment products.

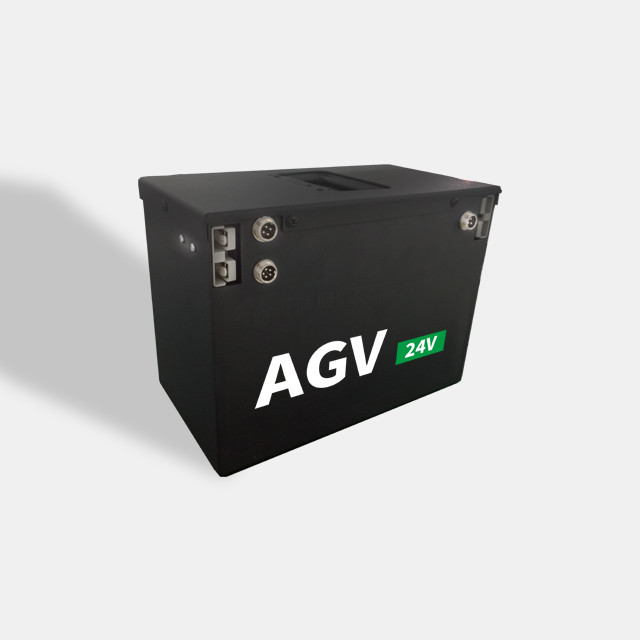

latest company case about 24V 60AH AGV robot lithium battery design  0

I. Project introduction

Product name :NPD-24V-60AH AGV/RGV car power lithium battery pack

Battery nominal voltage :24V

Battery specifications/model :NPD-24V-60AH

Nominal capacity :60AH

Continuous working current (A):≤60A

Pulse discharge current (A):≤180A

Charging current (A):≤60A

Battery operating voltage range (V):29.2V-20V

Charge protection cut-off voltage (V):29.2V

Discharge protection cut-off voltage (V):20V

Charge and discharge output port: Anderson plug

Battery size (mm) : 380*290*100mm

Battery weight (kg) : approximately 22kg

Charging temperature (℃) : 0℃ ~ 45℃

Discharge temperature (℃) : -20℃ ~ 60℃

Storage temperature (℃) : -20℃ ~ 45℃

Packaging process: sheet metal painting

Color: available on request

Features: Long service life, light battery weight, green environmental protection

Widely used in :AGV, logistics trucks, disinfection robots, medical robots and other robots



2. Project advantages

1. Lithium iron phosphate battery, long service life

2. Light weight, small size, easy installation

3. Lithium battery green environmental protection, no heavy metals

4. Beautiful shape design, size suitable for most models of products

5. Good safety performance, assembly in strict accordance with battery assembly standards, shipped after passing the test

6. Lithium battery customized lithium battery solution
