CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial

Minimum Order Quantity : 1SET Packaging Details : Standard Export UN box
Delivery Time : 20working days
Place of Origin: China Brand Name: CLF
Certification: UN38.3,MSDS, CE, etc. Model Number: CLF-R4117

Detail Information

Battery Type: LiFePO4 Output Power Range: Above 50 KWh
Voltage: 512V , Can Oem 480V / 409.6V/256V /192V /756V/1024V Capacity: 200Ah, 150Ah , 100Ah / OEM 230AH, 280AH/300AH Battery Cell Type EV/CATL Brand 200Ah/150Ah /100Ah Prismatic LiFePo4 CELL BMS Type RS485/RS232/CAN , SMART BMS 100A Size ( L*W*H)mm 850*`1100*2200mm, PLUG M8 TERMINALS Max Charge Current Fast Charge 0.5c , Max
Energy: 100kWh / 76.8KWh/ 50KWh Can Oem 10kwh Application: Industrial And Commercial, Construction, Data Center, Public Facility Etc
Dimension (L*W*H): 850*1100*2210mm: 100KWH Battery Cell Type: EVE/CATL Brand 200Ah/150Ah /100Ah Prismatic LiFePo4 CELL
BMS Type: RS485/RS232/CAN , SMART BMS 100A Communication Port: CAN, RS232, RS485
Max Charge Current: Fast Charge 0.5c , Max 200A/150A/100A, Which Is Good For Battery Life Max Discharge Current: 200A/150A/100A Max Continous
Grid Connection: Off Grid, Hybrid Grid Cycle Life: 6000cycles
Design Life: 10years
Highlight:

Solar Storage Cabinet 512V

,

OEM HV Solar Storage Cabinet

,

CLF Energy Storage Lithium Battery

Product Description

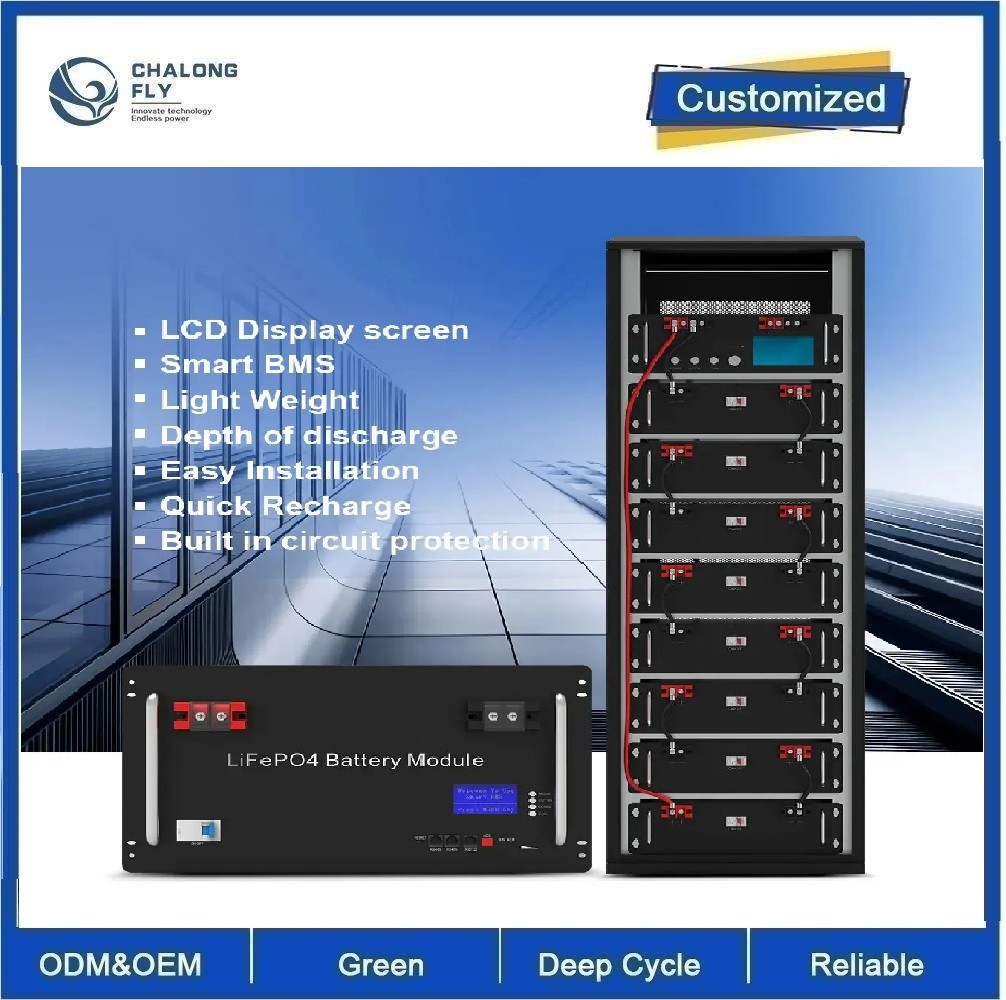

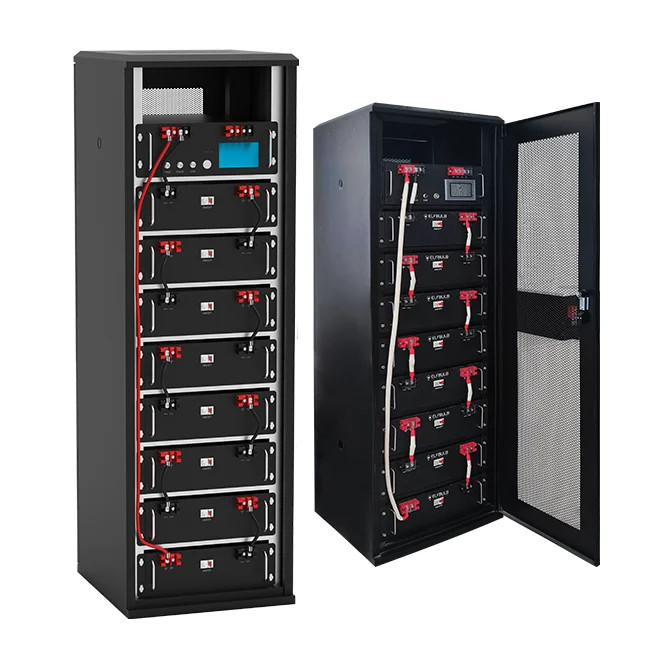

CLF OEM HV High Voltage Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial Energy Storage System

CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 0

Industrial Commercial Energy Storage System 100kWh 50kWh 76.8kWh
It matches with Inverters Communications Protocols RS485/RS232/CAN
It can be it storaged for industrial and commercial use energy avoding peak hours running, and emergency power use. With our Cabinets storage containers batteries 100kwh/76.8kwh/50kwh,
You can get the cheapst electricity costs on your running system hybrid system ,
and also can sell the energy to your Grid System as well !



CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 1

CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 2CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 3

Technical Parameter


Product Name CLF High Voltage Solar Storage Cabinet
512V 100KWh 76.8kWh 50kwh for Industrial Commercial Energy Storage System
1 Model MDS-HV512150RM-768kWh MDS-HV512200RM-51.2KWh MDS-HV480100RM-48kWh MDS-HV256200-RM-51.2kWh
Energy Wh 76.8kwh 100kwh 48kwh 51.2kwh
  Connection Way
2 Nominal Capacity 150Ah 200Ah 100Ah 200Ah
3 Nominal Voltage High Voltage512V High Voltage512V High Voltage480V High Voltage256V
  Connection Ways Series with Modular
  Series Units Numbers 10S series 10 Series 10 Series 5 Series
4 Per Modular Dimenssions (L*W*H)mm 480*550*177 480*620*240 480*420*177 480*420*177
5 Battery Cells Type uses PRISMATIC CELL 150Ah Prismatic LFP Cell 200Ah Prismatic LFP Cell 100Ah Prismatic LFP Cell 100Ah
Charge Charge full Voltage/
Charger Voltage
584V 584V 547.5V 292V
6 Max. Charge Current Max charge 100A, 70A fast which is good for battery lifelong Max 200A.
0.5c 100A fast which is good for battery lifelong
Max charge 100A, 70A fast which is good for battery lifelong Max charge 100A, 70A fast which is good for battery lifelong
Discharge Discharge Cut-off Voltage 400V 400V 377.5V 400V
7 Max. Discharge Current 150A 1C Max continous max 200A continous, over 200A will be protected or burned. 100A Max discharge continous, Over 100A Protected 100A Max discharge continous, Over 100A Protected
8 Max load 7KW 10KW -12KW 5KW 5KW
10 Solar Inverter Power Matches High Voltage HYBRID INVERTER 400V-580V
  Communication Protocol RS485/RS232/CAN , Compatible 98% Main inverters brands!
12 Work temp -20-55°C
13 Storage Tempr 0-45°C
14 Quality Guarantee 10 Years warranty, free maintainess performances, if quality defeced, free replacement with new ones .
15 Cylce times 6000 times at 80% dod at ideal tempreature 25°C
16 Lifespan 6000 times at 80% dod at ideal tempreature 25°C

Features:


* Match the international mainstream inverter brand
* With UN38.3,MSDS, CE and other international certification
* Rated voltage: 48V/51.2V
* Maximum discharge current: 100A
* Communication interface: RS485, CAN

Application


CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 4

CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 5

CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 6

CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 7CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 8



CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 9

CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 10

CLF OEM HV Solar Storage Cabinet 512V 100KWh 76.8kWh 50kwh For Industrial Commercial 11
