As an important logistics equipment, the truck is widely used in warehousing, logistics, production lines and other occasions. With the enhancement of environmental awareness and the development of electrification technology, power lithium battery packs, as a clean and efficient power source, have gradually replaced the traditional internal combustion truck power system. According to the customer's requirements, we customized 48V-60Ah. The following are the characteristics, advantages and applications of the carrier power lithium battery pack in the carrier industry.
Product Parameter

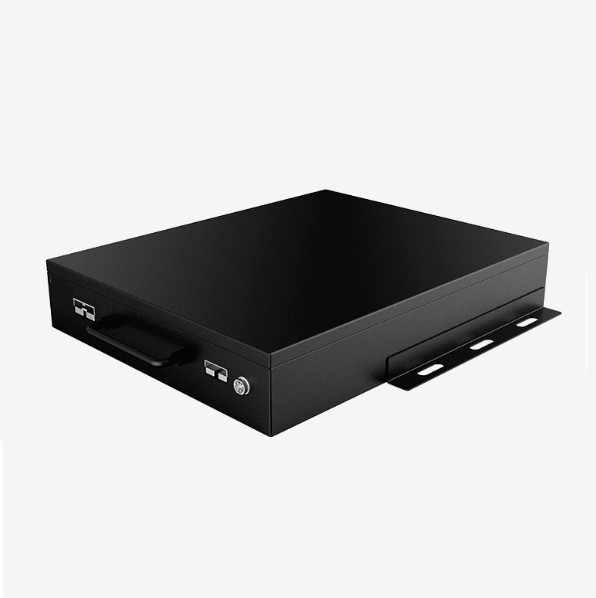

48V/60Ah AGV power lithium battery
Product Number: 37DZ039-01
Cell type: 26650/3.7V/5Ah
Battery specifications: 13S12P/48V/60Ah
Nominal voltage: 48V
Nominal capacity: 60Ah
Charging voltage: 54.6V
Charging current: ≤30A
Discharge current: 100A
Instant discharge current: 150A
Discharge cut-off voltage: 39V
Internal resistance of finished product: ≤100mΩ
Battery weight: 34Kg
Product size: 400*500*90mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ℃
Temperature protection: 70℃±5℃
Battery case: sheet metal case
Communication: RS485
Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance and so on
Application: AGV vehicle
Features and advantages
- High energy density: The 48V-60Ah carrier power lithium battery pack uses lithium-ion battery technology and has a high energy density. Compared with traditional lead-acid batteries, lithium battery packs can provide more energy storage and output capacity, thus extending the use time and driving range of the truck.
- Fast charging: As a device that needs to be charged frequently, the fast charging ability is a big advantage of the lithium battery pack. The 48V-60Ah carrier power lithium battery pack can achieve a shorter charging time and improve the efficiency of the carrier by using fast charging equipment and charging algorithm.
- Long life: Lithium battery packs have a long service life and can reach thousands of charge and discharge cycles. Through reasonable charge and discharge management and battery protection measures, the 48V-60Ah carrier power lithium battery pack can maintain high performance and stable output for a long time.
- Environmental friendly: Compared with traditional internal combustion engine trucks, the use of power lithium battery trucks have better environmental friendliness. Lithium battery packs do not produce exhaust gas and noise pollution, reducing the negative impact on the environment.
Application Scenarios
- Warehousing and logistics: In the warehousing and logistics industry, trucks undertake important tasks such as cargo loading and unloading, handling and stacking. The 48V-60Ah carrier power lithium battery pack can provide lasting and stable power support for the carrier to meet the efficient handling needs of goods in the warehouse.
- Production line: In the production line, the truck undertakes the supply of raw materials, the transportation of finished products and the transfer of semi-finished products. The high energy density and long life characteristics of the 48V-60Ah carrier power lithium battery pack can provide continuous power support for the carrier and improve the efficiency and flexibility of the production line.
- Material yard: In the material yard, the trucks need to perform frequent cargo loading and unloading and stacking operations. The fast charging capability and stable output performance of the 48V-60Ah carrier power lithium battery pack can meet the needs of the carrier in the busy material yard.
The future development trend
- Improve energy density: With the continuous progress of science and technology, the future lithium battery technology will increase the energy density, and further extend the use time and mileage of the carrier.
- Intelligent management: The intelligent management of the carrier power lithium battery pack will become the future development trend. By installing sensors and monitoring systems, real-time monitoring of battery status and performance, as well as battery health management, improve battery life and safety performance.
- As a clean and efficient power source, 48V-60Ah carrier power lithium battery pack has a wide application prospect in the carrier industry. Its characteristics of high energy density, fast charging and long life can provide stable and durable power support for the truck, improve the handling efficiency and save energy. With the continuous progress of technology and the application of intelligent management, the carrier power lithium battery pack will play a greater role in the future development.
