CLF Lithium Battery LiFePO4 battery Energy Storage Cabinet Vehicle Mobile Energy Storage System 100kwh 200kwh

Minimum Order Quantity : 1units Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLF
Certification: MSDS,UN38.3 Model Number: CLF-R4820

Detail Information

Model: CLF258KWh Capacity: 280Ah
Rated Power: 125KW Rated Charge/discharge Current: 182A
Battery Type: LiFePO4 Battery Cooling Mode: Intelligent Liquid Cooling
OEM/ODM: Available Storage Temperature: -40~60°C
Cycle Life: ≥6000 Times Application: Industrial And Commercial Energy Storage System

Product Description

In the context of the increasing global energy crisis and environmental problems, the human demand and exploration of renewable energy is more and more urgent. In this context, mobile energy storage vehicles came into being and have become a new engine to promote the energy revolution.

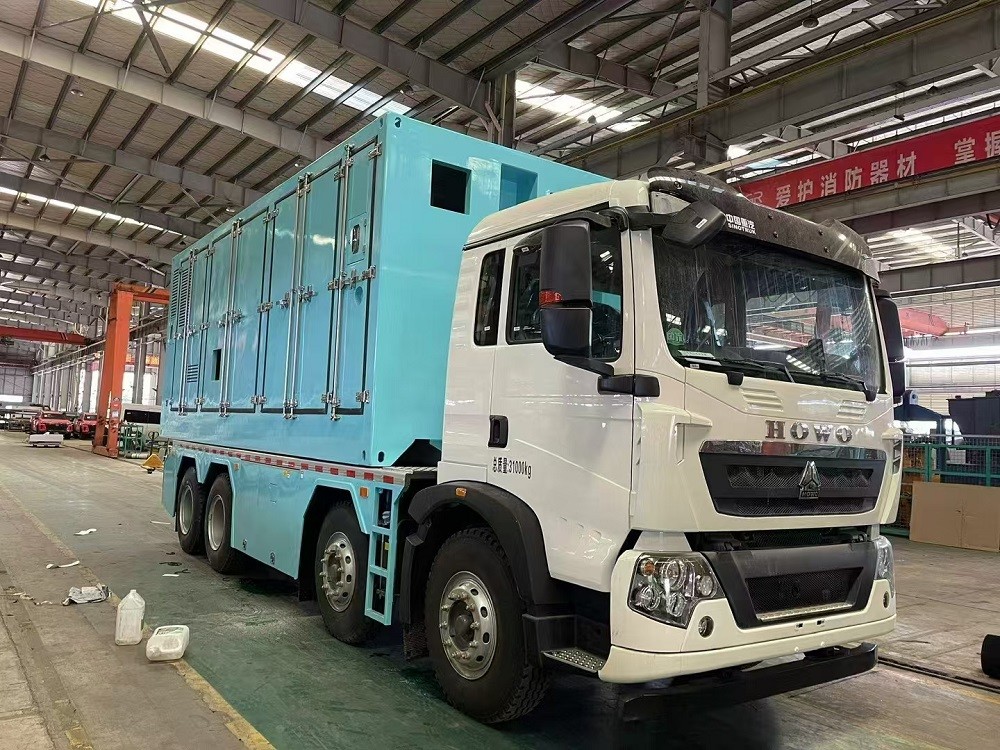

What is a mobile energy storage vehicle? In simple terms, the mobile energy storage vehicle is a vehicle equipped with efficient batteries or other energy storage devices, which can release the stored energy when needed to provide power support for users. This innovative technology combines energy storage and transportation, bringing unprecedented convenience and flexibility to energy utilization.

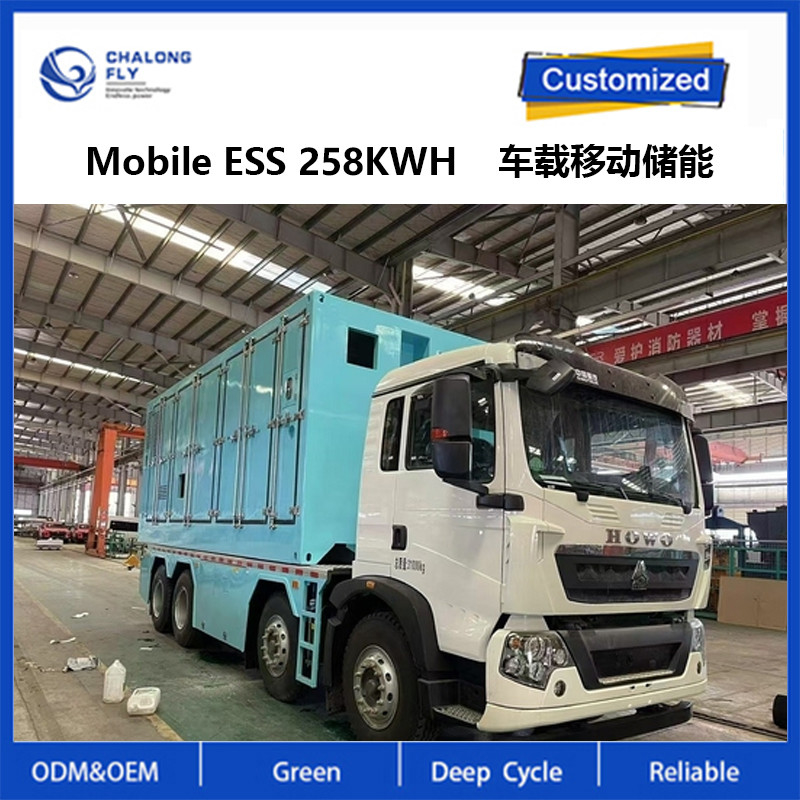

Specification for 258KWH Battery System


No. Category Name Parameter
1 System Dimension(WxDxH) 1578mm×1380mm×2450mm
2 Weight ≤3.1T
3 Rated capacity 258kWh
4 Rated power 125kW
5 Max cycle efficiency >89%
6 IP grade IP54
7 Auxiliary power supply Self-powered /external power supply
8 Working humidity range ≤95%
9 Workingtemperature range -30℃~55℃(>45℃ Derating)
10 Maximum working altitude 1500 m
11 Cooling mode Intelligent liquid cooling
12 Fire extinguishing Aerosol
13 Communication RS485/CAN
14 Communication protocol Modbus RTU/CAN2.0
15 Mode of connection Three-phase four-wire
16 Complied standard IEC62619,EMC EN61000-6-2/4,G99,
EN 50549-1/2:2019,UN38.3
17 AC Rated charge &discharge power 125kW
18 Max charge &discharge power 150kW
19   Rated charge &discharge current 182A
20 Rated grid current 400V
21 DC Max DC voltage 1000V
22 Min DC voltage 720V
23 DC voltage working range 720~1000V
24 DC side max current 173.6A





CLF Lithium Battery LiFePO4 battery Energy Storage Cabinet Vehicle Mobile Energy Storage System 100kwh 200kwh 0

CLF Lithium Battery LiFePO4 battery Energy Storage Cabinet Vehicle Mobile Energy Storage System 100kwh 200kwh 1CLF Lithium Battery LiFePO4 battery Energy Storage Cabinet Vehicle Mobile Energy Storage System 100kwh 200kwh 2CLF Lithium Battery LiFePO4 battery Energy Storage Cabinet Vehicle Mobile Energy Storage System 100kwh 200kwh 3

Application


Mobile energy storage vehicles have a wide range of applications. It can be used as an urban transportation tool to provide charging services for electric vehicles, solve the problem of insufficient capacity of traditional charging piles, and improve the convenience and penetration rate of electric vehicles. Mobile energy storage vehicles can also be applied to emergency power support, such as natural disasters, traffic accidents and other situations, to provide emergency power support for the affected areas, to ensure people's lives and safety. Mobile energy storage vehicles can also be used as temporary energy reserves for large-scale activities, field expeditions and other occasions to provide stable and reliable power protection for activities.
These application scenarios show the great potential of mobile energy storage vehicles in the energy field. By combining energy storage technology with vehicles, mobile energy storage vehicles not only provide users with convenient energy services, but also inject new impetus into energy transformation and sustainable development.
