| Minimum Order Quantity : | 1SET | Packaging Details : | Standard Export UN box |
|---|---|---|---|
| Delivery Time : | 20working days |
| Place of Origin: | China | Brand Name: | CLF |
|---|---|---|---|
| Certification: | UN38.3，MSDS, CE, etc. | Model Number: | CLF-R4119 |
|
Detail Information |
|||
| Battery Type: | LiFePO4 | Output Power Range: | Above 50 KWh |
|---|---|---|---|
| Voltage: | 512V , Can Oem 480V / 409.6V/256V /192V /756V/1024V | Capacity: | 200Ah, 150Ah , 100Ah / OEM 230AH, 280AH/300AH Battery Cell Type EV/CATL Brand 200Ah/150Ah /100Ah Prismatic LiFePo4 CELL BMS Type RS485/RS232/CAN , SMART BMS 100A Size ( L*W*H)mm 850*`1100*2200mm, PLUG M8 TERMINALS Max Charge Current Fast Charge 0.5c , Max |
| Energy: | 100kWh / 76.8KWh/ 50KWh Can Oem 10kwh | Application: | Industrial And Commercial, Construction, Data Center, Public Facility Etc |
| Dimension (L*W*H): | 850*1100*2210mm: 100KWH | Battery Cell Type: | EVE/CATL Brand 200Ah/150Ah /100Ah Prismatic LiFePo4 CELL |
| BMS Type: | RS485/RS232/CAN , SMART BMS 100A | Communication Port: | CAN, RS232, RS485 |
| Max Charge Current: | Fast Charge 0.5c , Max 200A/150A/100A, Which Is Good For Battery Life | Max Discharge Current: | 200A/150A/100A Max Continous |
| Grid Connection: | Off Grid, Hybrid Grid | Cycle Life: | 6000cycles |
| Design Life: | 10years | ||
| Highlight: | CLF Solar Storage Battery Cabinet,Solar Storage Battery Cabinet 20KW,100KWH Industrial Energy Storage System |
||
Product Description

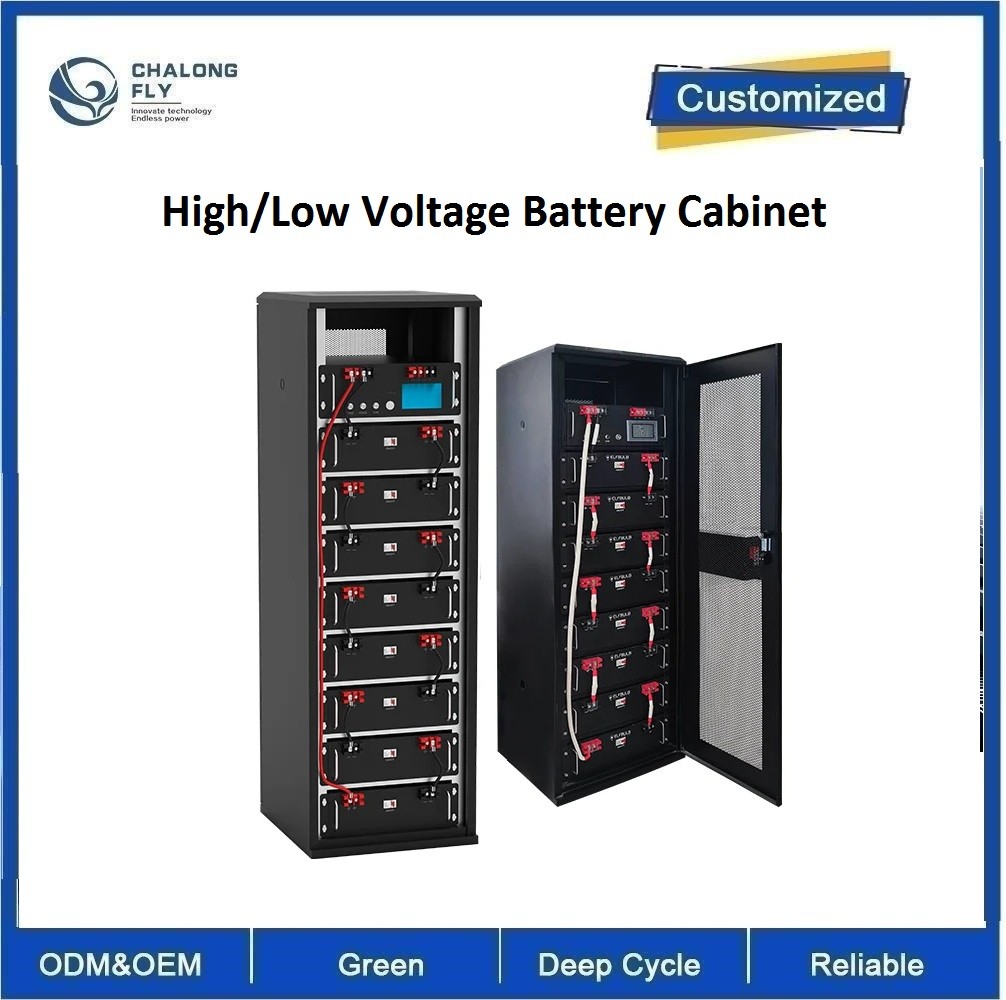

CLF OEM Solar Storage Battery Cabinet 20KW 30KW 40KW 50KW 50KWH 100KWH For Industrial Commercial Energy Storage System
Technical Parameter
| Product Name | CLF High Voltage Solar Storage Cabinet | ||||
| 512V 100KWh 76.8kWh 50kwh for Industrial Commercial Energy Storage System | |||||
| 1 | Model | MDS-HV512150RM-768kWh | MDS-HV512200RM-51.2KWh | MDS-HV480100RM-48kWh | MDS-HV256200-RM-51.2kWh |
| Energy Wh | 76.8kwh | 100kwh | 48kwh | 51.2kwh | |
| Connection Way | |||||
| 2 | Nominal Capacity | 150Ah | 200Ah | 100Ah | 200Ah |
| 3 | Nominal Voltage | High Voltage512V | High Voltage512V | High Voltage480V | High Voltage256V |
| Connection Ways | Series with Modular | ||||
| Series Units Numbers | 10S series | 10 Series | 10 Series | 5 Series | |
| 4 | Per Modular Dimenssions (L*W*H)mm | 480*550*177 | 480*620*240 | 480*420*177 | 480*420*177 |
| 5 | Battery Cells Type uses | PRISMATIC CELL 150Ah | Prismatic LFP Cell 200Ah | Prismatic LFP Cell 100Ah | Prismatic LFP Cell 100Ah |
| Charge | Charge full Voltage/ Charger Voltage |
584V | 584V | 547.5V | 292V |
| 6 | Max. Charge Current | Max charge 100A, 70A fast which is good for battery lifelong | Max 200A. 0.5c 100A fast which is good for battery lifelong |
Max charge 100A, 70A fast which is good for battery lifelong | Max charge 100A, 70A fast which is good for battery lifelong |
| Discharge | Discharge Cut-off Voltage | 400V | 400V | 377.5V | 400V |
| 7 | Max. Discharge Current | 150A 1C Max continous | max 200A continous, over 200A will be protected or burned. | 100A Max discharge continous, Over 100A Protected | 100A Max discharge continous, Over 100A Protected |
| 8 | Max load | 7KW | 10KW -12KW | 5KW | 5KW |
| 10 | Solar Inverter Power Matches | High Voltage HYBRID INVERTER 400V-580V | |||
| Communication Protocol | RS485/RS232/CAN , Compatible 98% Main inverters brands! | ||||
| 12 | Work temp | -20-55°C | |||
| 13 | Storage Tempr | 0-45°C | |||
| 14 | Quality Guarantee | 10 Years warranty, free maintainess performances, if quality defeced, free replacement with new ones . | |||
| 15 | Cylce times | 6000 times at 80% dod at ideal tempreature 25°C | |||
| 16 | Lifespan | 6000 times at 80% dod at ideal tempreature 25°C | |||
Application
