48V 280AH Lithium Battery Scheme In Agricultural machine

With the increasing awareness of environmental protection and the continuous development of new energy technologies, the electric transformation of agricultural machinery and equipment has become one of the current hot topics. The traditional agricultural oil power system has the problems of emission pollution, loud noise and high maintenance cost, and the use of large battery pack to replace the oil power system can realize the characteristics of zero emission, low noise, high efficiency and energy saving.

51.2V/280Ah lithium iron phosphate battery, in line with China's IP65 waterproof standard, its safety performance and cycle life beyond the traditional battery, in high temperature and high pressure and rainy days and other harsh environment can still continue to output power, to meet the harvest season of high-intensity operation.

PRODUCT PARRAMETER

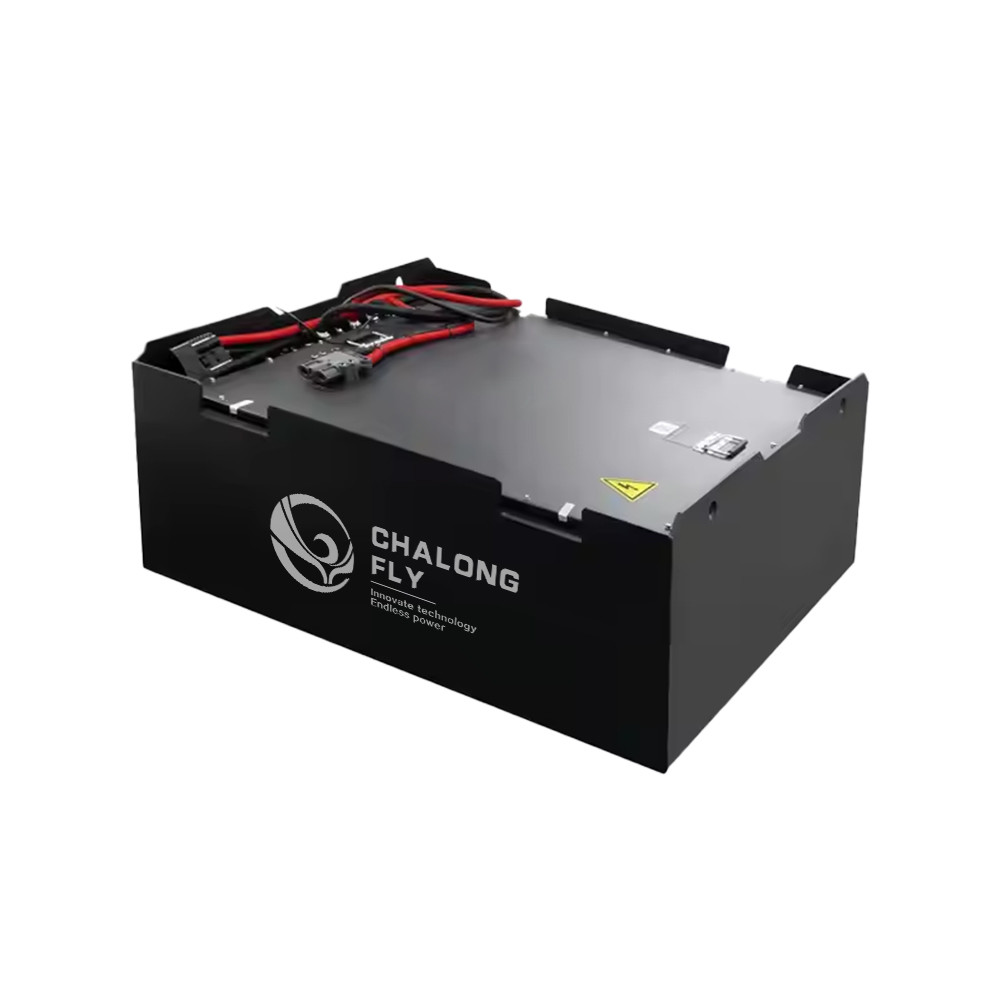

51.2V/280Ah AGV power lithium battery

Cell type:3.2V280AH

Battery specifications: 16S1P

Nominal voltage: 48V

Nominal capacity: 280Ah

Charging voltage: 56.8V

Charging current: 120A

Discharge current: 280A

Instant discharge current: 350A

Battery weight: 120Kg

Product size: 700*420*250mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Temperature protection: 70℃±5℃

Battery case: sheet metal case

Waterproof: IP65

Communication: RS485

Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance and so on

1. Application advantages of large battery pack in agricultural machinery

Zero emission: As a power source, the large battery pack does not produce exhaust emissions, which meets the environmental protection requirements and is conducive to protecting the farmland ecological environment.

Low noise: Compared with the traditional oil power system, the large battery pack works with lower noise, reducing the interference to the surrounding environment and farmers' lives.

High efficiency and energy saving: The large battery pack has the characteristics of high efficiency energy conversion and energy storage, which can improve the power performance and use efficiency of agricultural machinery and save energy costs.

2. Agricultural oil to electricity use large battery package program

Selection design: According to the power requirements and use scenarios of agricultural machinery, select the appropriate large battery pack type, capacity and configuration scheme.

Power system transformation: Replace the traditional agricultural oil power system with a large battery pack power system, including the replacement and debugging of components such as motors and electronic control systems.

Construction of charging facilities: The construction of farmland charging facilities, including charging piles, charging Bridges and other equipment, to facilitate the charging of agricultural machinery in the working interval.

Intelligent management system: The intelligent management system is installed to monitor, manage and maintain the large battery pack in real time to ensure its safe and stable operation.

3. The advantages of using large battery packs to change agricultural oil to electricity
Environmental protection and energy saving: As a clean energy source, the large battery pack realizes the characteristics of zero emission and low noise, which is conducive to reducing environmental pollution and saving energy resources.

Cost reduction: Although the initial investment of a large battery pack is higher, the overall cost will be lower over the long term due to the elimination of fuel costs and oil maintenance costs.

Improve efficiency: The large battery pack has efficient energy conversion and fast response characteristics, which improves the working efficiency and response speed of agricultural machinery.

4. The promotion prospect of agricultural oil to electricity using large battery packs

With the continuous maturity of new energy technologies and the increase of policy support, the promotion of large battery packs for agricultural oil to electricity has broad prospects. In the future, with the continuous innovation of technology and the reduction of costs, the application of large battery packs in the field of agricultural machinery will be more extensive, bringing more environmental protection, high efficiency and energy saving opportunities for agricultural production.

The use of large battery packs for converting agricultural oil to electricity is a new energy power scheme that meets the requirements of environmental protection, energy saving and high efficiency, and has positive significance for improving the sustainable development of agricultural machinery and equipment and improving agricultural production efficiency. It is hoped that in the future development, more agricultural production enterprises and relevant departments can pay attention to technological innovation and promotion and application in this field, and jointly promote the development of agricultural production methods to a more environmentally friendly and efficient direction.
