Cabinet ESS 258KWH 289KWH 385KWH LiFePO4 Energy Storage Cabinet for Industrial and Commercial Energy Storage Cabinet
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsAPP : +8618975107916
| Minimum Order Quantity : | 2 unit | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 1000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | Chalong Fly |
|---|---|---|---|
| Certification: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | Model Number: | CLFLE148 |
|
Detail Information |
|||
| Voltage: | 48V | Capacity: | 100Ah, 150Ah, 200Ah |
|---|---|---|---|
| Waterproof: | IP65 | Cycle Life: | >6000 |
| Controller Type: | MPPT | OEM/ODM: | Acceptable |
| BMS: | Built-in BMS Protection | Solar Panel Type: | Monocrystalline Silicon |
| Certificate: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, Etc | Application: | Home, Solar System, Industrial, Villa, Telecom |
| Highlight: | 48v 100Ah Household Energy Storage System,Lifepo4 Household Energy Storage System,Lifepo4 Battery Pack 48v 200ah |
||
Product Description
If you don't see products matching your requirements, please contact us. We may not have it listed on our website yet. Chalong Fly provides ODM & OEM services with quality assurances for our products and services.
We distribute battery packs and cells from reputable brands and manufacture custom battery packs and power supplies made to customer specifications.
| Parameter | SWB48100 | SWB48200 |
|---|---|---|
| Battery Type | LiFePO4 (LFP) | |
| Nominal Voltage | 51.2V | |
| Nominal Capacity (WH) | 5120WH | 10240WH |
| Usable Capacity (WH) | 4096WH/80%DOD | 8192WH/80%DOD |
| Design Life | 10+ Years (25℃/77℉) | |
| Dimensions (mm) | 610*450*200 | 950*580*250 |
| Weight (kg) | 59 | 115 |
| Cycle Life | >6000 cycles, 25℃ | |
| Discharge Voltage | 40-58.4V | |
| Charge Voltage | 56-58.4V | |
| Charge/Discharge Current | 50A (Recommended) 100A (Max) |
|
| Internal Resistance | ≤30mΩ | |
| BMS Power Consumption | <2W (Work) <100mW (Sleep) |
|
| Communication | CAN/RS-485/RS-232 | |
| Product Warranty | 5 Years | |
| Performance Warranty | 10 Years | |

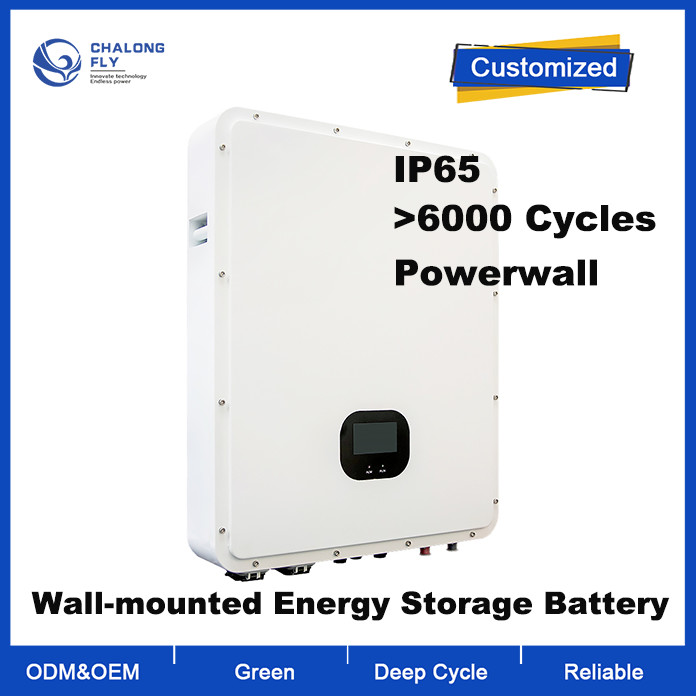

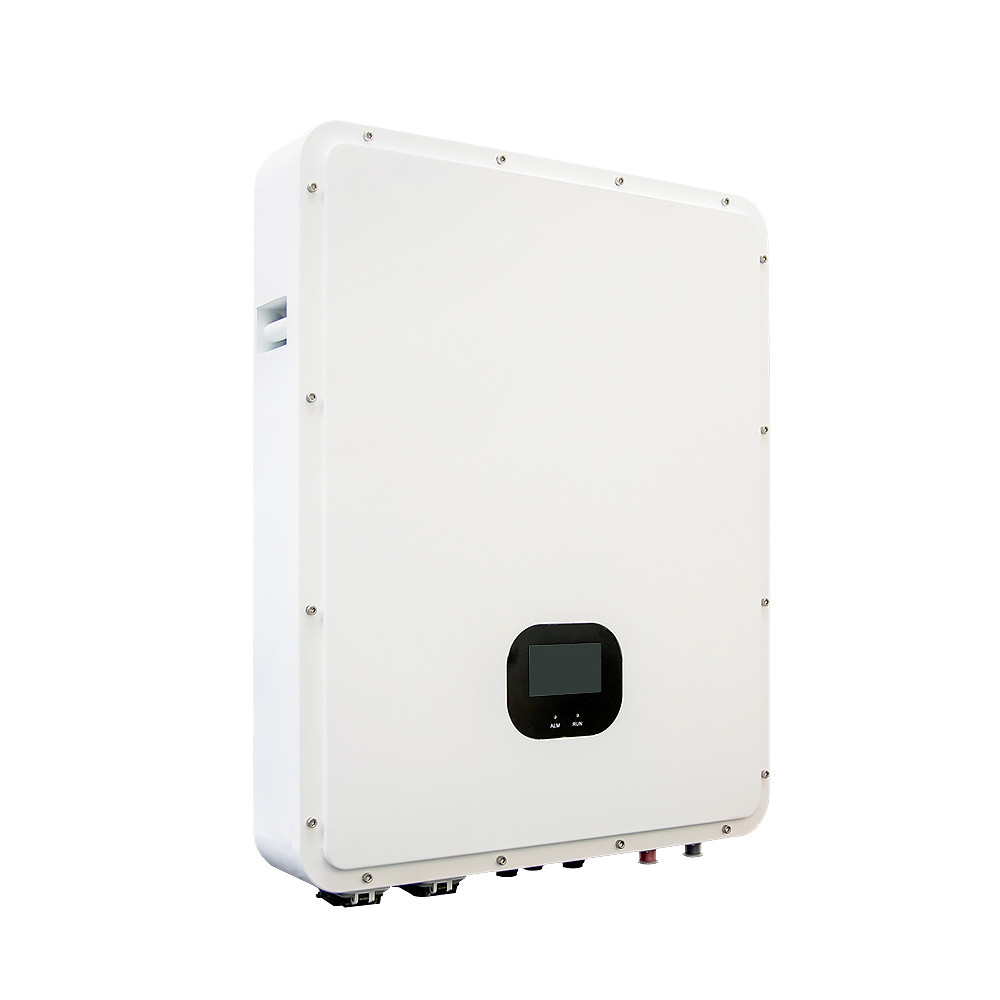

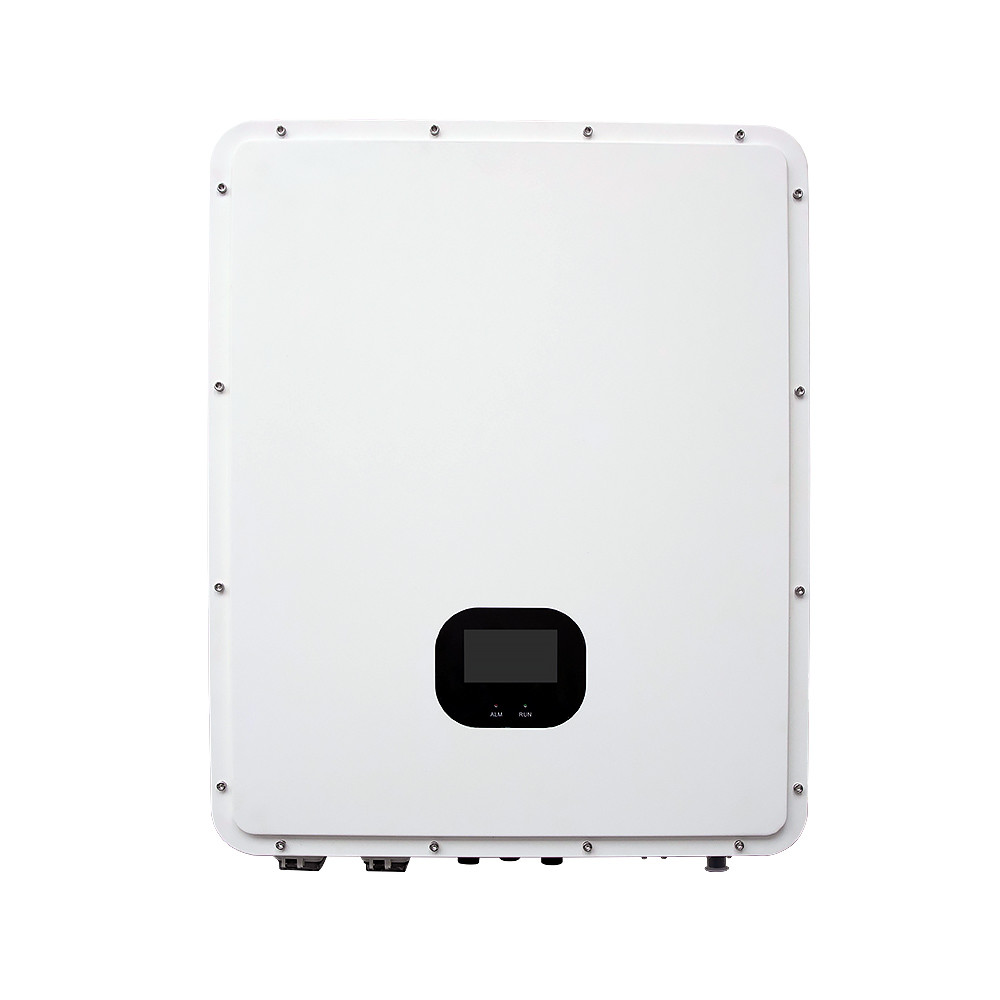

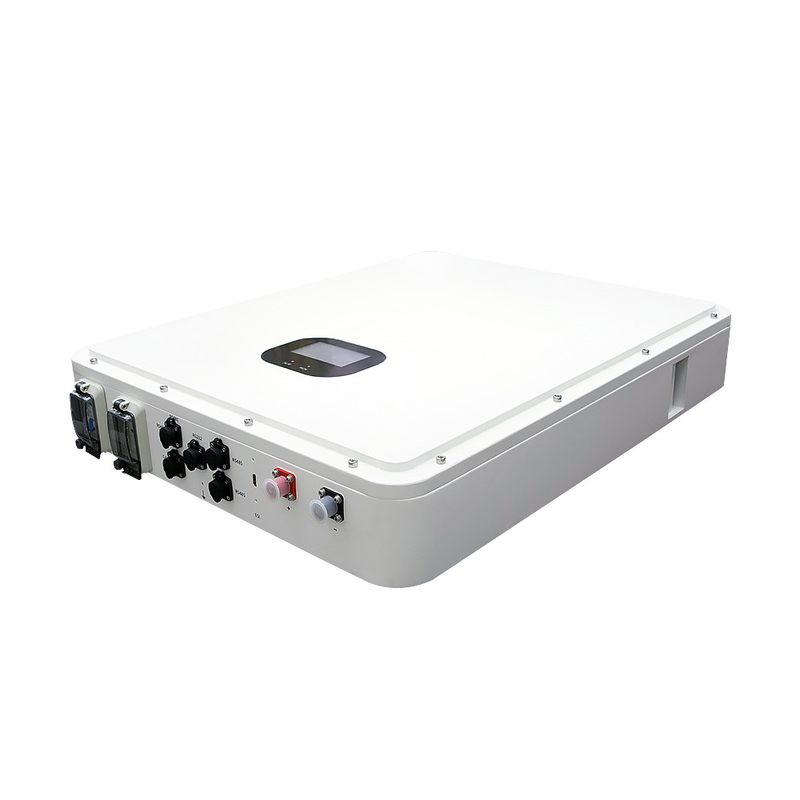

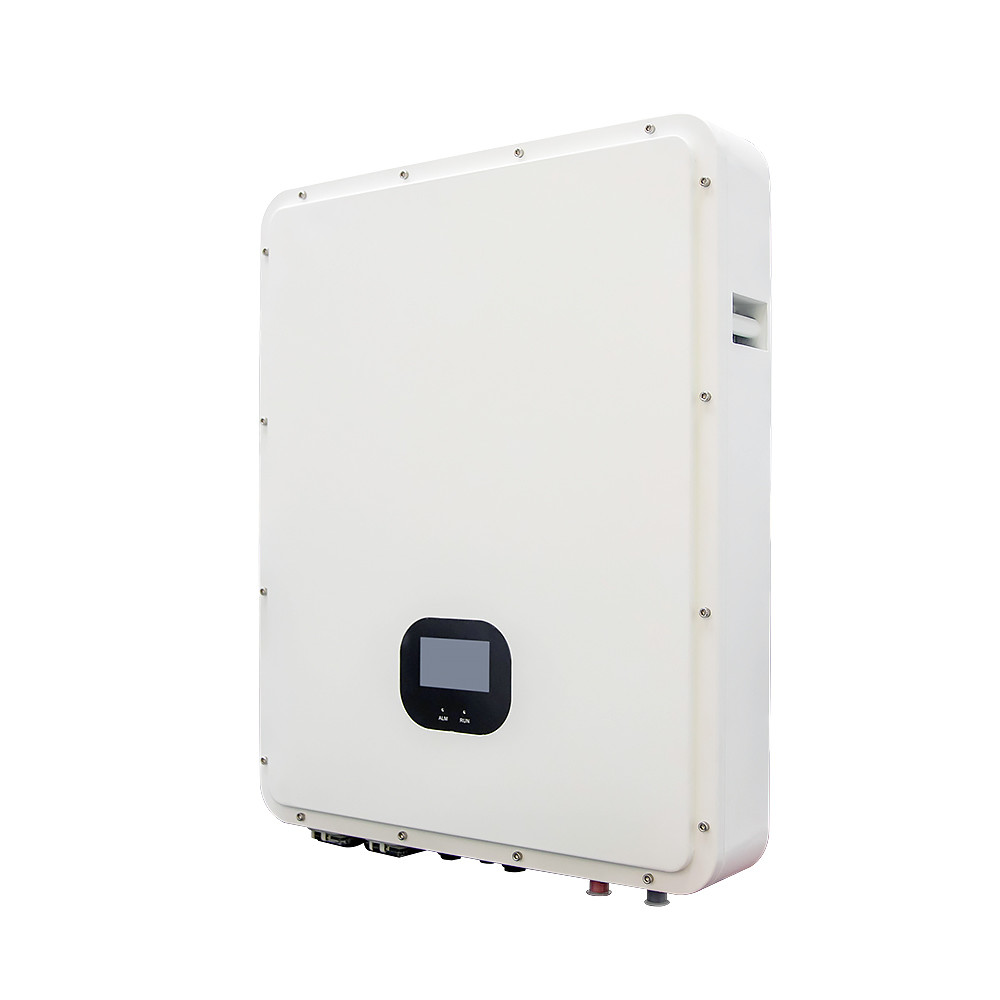

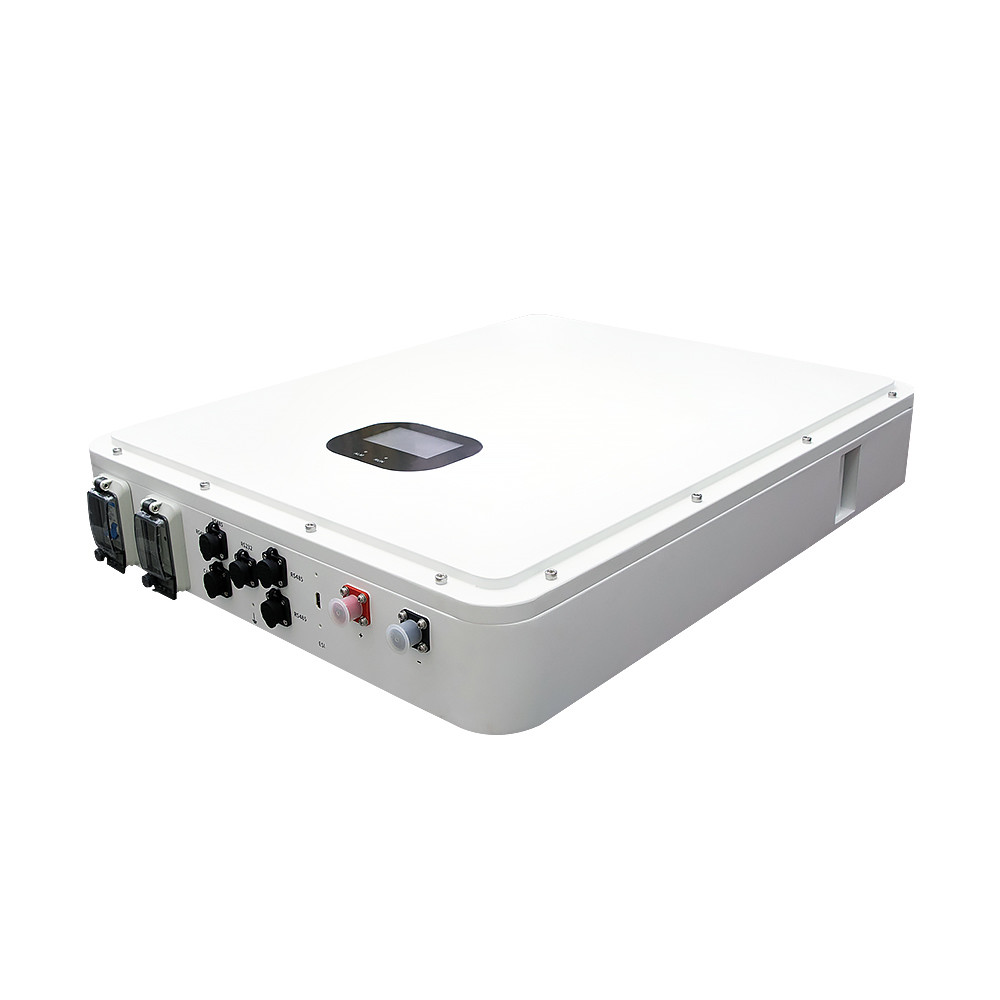

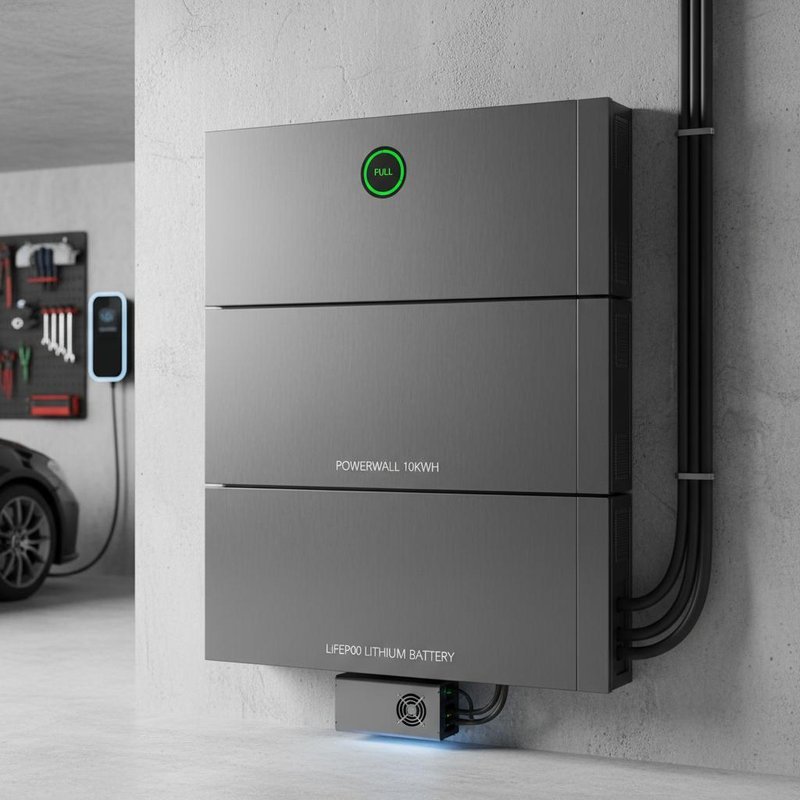

The IP65 Power Energy Storage Station is a powerful solar energy storage system that captures solar power for standalone home use. This intelligent solar home battery ensures you never go without power during crucial moments.
The system captures energy from various sources, accumulates it, and stores it in rechargeable lithium-ion batteries for later use.
For areas with frequent blackouts or power outages, our waterproof powerwall provides peace of mind. Expandable 48V lithium-ion battery options ensure efficient power usage wherever you need it.
This system provides critical energy backup for power emergencies. You can prepare to cover essential equipment during outages or power almost everything in your home, ensuring safe solar energy system supply backup until complete power restoration.
The station features superior energy capacity, peak load handling, and continuous load performance compared to other solar systems. It provides affordable "essentials backup" for emergencies and integrates with renewable energy sources for continuous electricity availability in on-grid, off-grid, and hybrid systems.
Supporting up to 15 units in parallel, power and capacity range from 5.12kWh, 7.68kWh, and 10.24kWh to larger configurations. These modular, expandable solutions meet diverse energy storage requirements and enable energy time-shifting to store energy during off-peak periods for use when electricity prices increase.

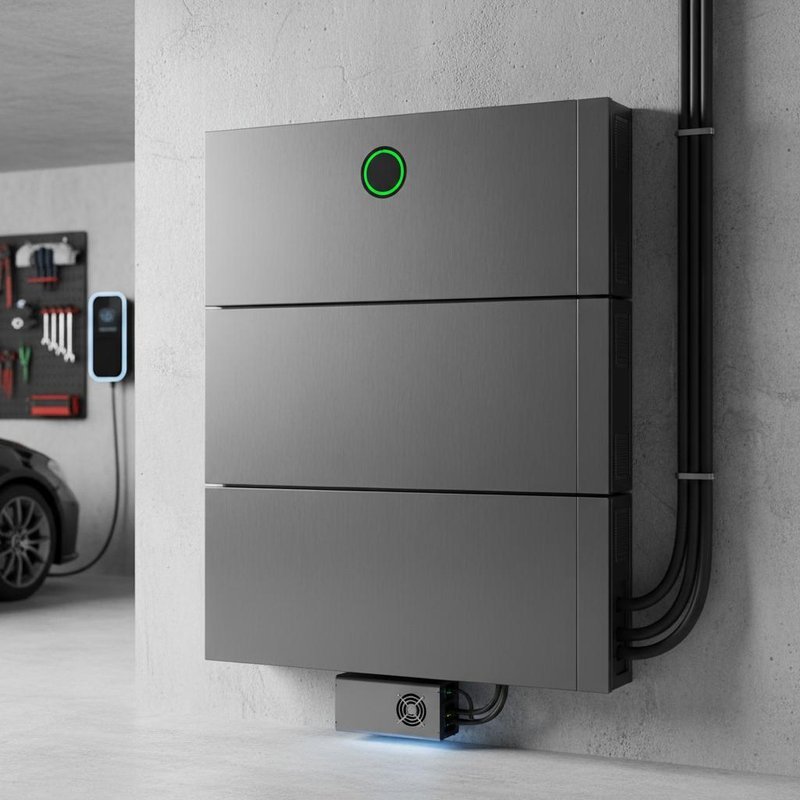

Featuring easy installation and minimalist design, the compact construction offers versatile mounting options for indoor installation. The reliable lithium-ion battery technology makes indoor installation safe, with wall-mounted options available in 4.8kWh or 9.6kWh configurations.
The IP65 Power Station significantly reduces energy costs when paired with PV arrays or in areas with peak billing. Photovoltaic panels are most efficient during lower demand periods, and pairing them with our energy station allows energy storage for use during peak evening hours.
This smart energy storage system is particularly effective in areas with peak and off-peak billing times. It can collect energy from the grid during off-peak times for use during peak hours, mitigating energy costs. The modular design ensures immediate response to power interruptions, providing fluent response mechanisms and maintaining voltage stability within regulated ranges.
Reach out to our team for detailed specifications, pricing, and custom solution consultations.
