The RV lithium battery pack is composed of: battery group, overcharge and overdischarge BMS protection system, single balance control system, box and so on. Individual manufacturers also installed temperature protection system core maintenance interface. Rv lithium iron phosphate battery pack has many advantages such as stability, reliability, small size, light weight, will not overcharge, long service life, etc., as a new energy has been rapidly popularized in the field of RV electric energy.
I. Project introduction

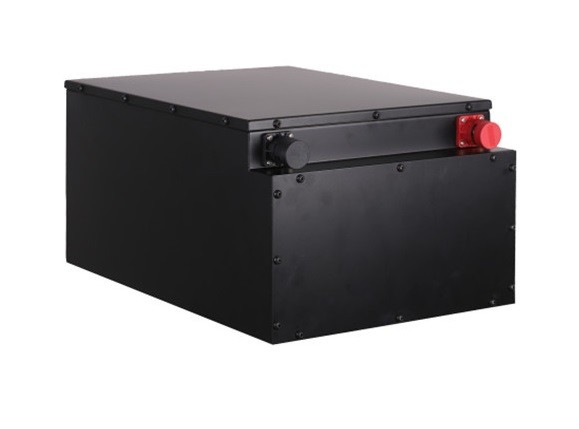

NPD-12V-100AH outdoor RV lithium battery, portable mobile power supply
Power lithium battery system
Product name: NPD-12V-100AH power battery system
Battery brand: Noviti
Nominal battery voltage: 12V
Battery specifications/model: NPD-12V-100AH
Nominal capacity: 100AH
Continuous working current: 30A
Peak discharge current: 90A
Standard charging current: ≤25A
Battery operating voltage range: 8.25V-12.6V
Charge protection cut-off voltage: 12.6V
Discharge protection cut-off voltage: 8.25V
Battery size (mm) : 315 x 90 x 305mm
Battery weight (kg) : about 10kg
Charging temperature (℃) : 0℃ ~ 45℃
Discharge temperature (℃) : -20℃ ~ 60℃
Storage temperature (℃) : -20℃ ~ 45℃
Case material: (spray paint) black
Features: Long service life, light battery weight, green environmental protection
Widely used in: outdoor RV, outdoor mobile power supply
2. Project advantages
1, the battery is equipped with a controller, the solar panel can be charged at any time, to provide you with electricity
2, switch respectively control the display screen and battery function
3, the display screen can view the battery voltage and remaining power
4. There are two charging methods: Anderson connected charger and solar terminal connected solar panel
5, two cigarette lighter plugs can directly provide power for TV, fan, etc
6, Engel plug can directly supply power to Engel/Waeco refrigerator
7, 5V2A USB interface can be directly connected to the mobile phone, tablet PC charging
8, two DC plugs can be connected to DC lights
Power is always available to you
Play games not afraid of power outage!
Compatible with high power notebook and desktop computers
Meet the emergency use of small household appliances
Such as TV, small rice cooker, electric fan, DC refrigerator, notebook, mobile phone, digital camera and so on
Outdoor also available
For camping dinners, it can be used to power stereo, barbecue grill, rice cooker and car refrigerator
Night fishing and water work
Provide basic power supply, emergency night market food stall lights
