Product Parameter

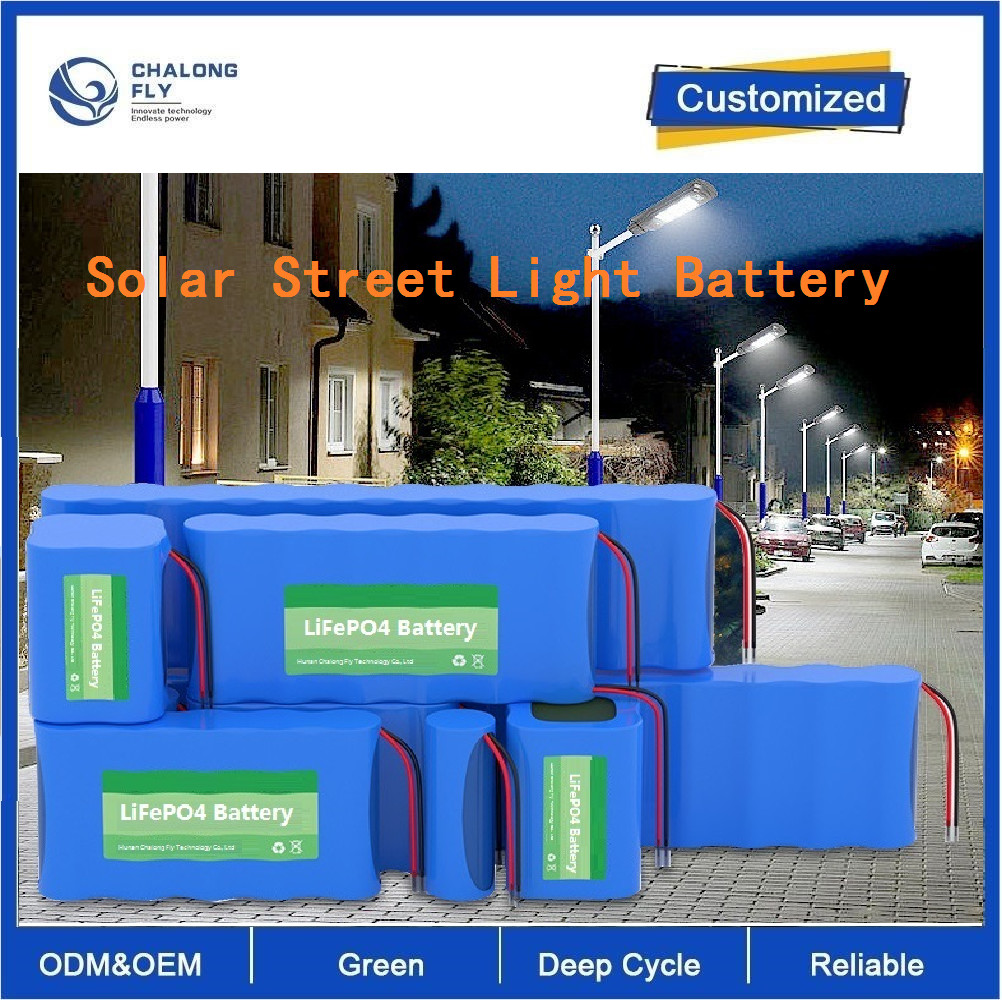

CLF12.8V-56AH lithium ion batterypack
Nominal voltage: 12.8V
Nominal capacity: 56AH
Charge cut-off voltage: 14.6V
Discharge cut-off voltage: 10V
Maximum charge and discharge current: 10A
Weight: about 5.5KG
Material: PVC heatshrinkfilm + highlandbarley
Paper color: blue
Protection level: IP30
Charging temperature: 0℃to 45℃
Discharge temperature: -20℃to 60℃
Static power consumption: ≤35mA
Sleep power consumption: ≤800uA
Product Advantages
1. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);
2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. Good charging and discharging performance. 3C continous discharge and 10C burst.
5. Full green and . All raw material of the batteries are environmental-friendly,
6. Wide working temperature range: From -20ºC to 60ºC, extremely cold and hot weather will not affect its performance.
7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.
8. Produced with automatic equipments.
