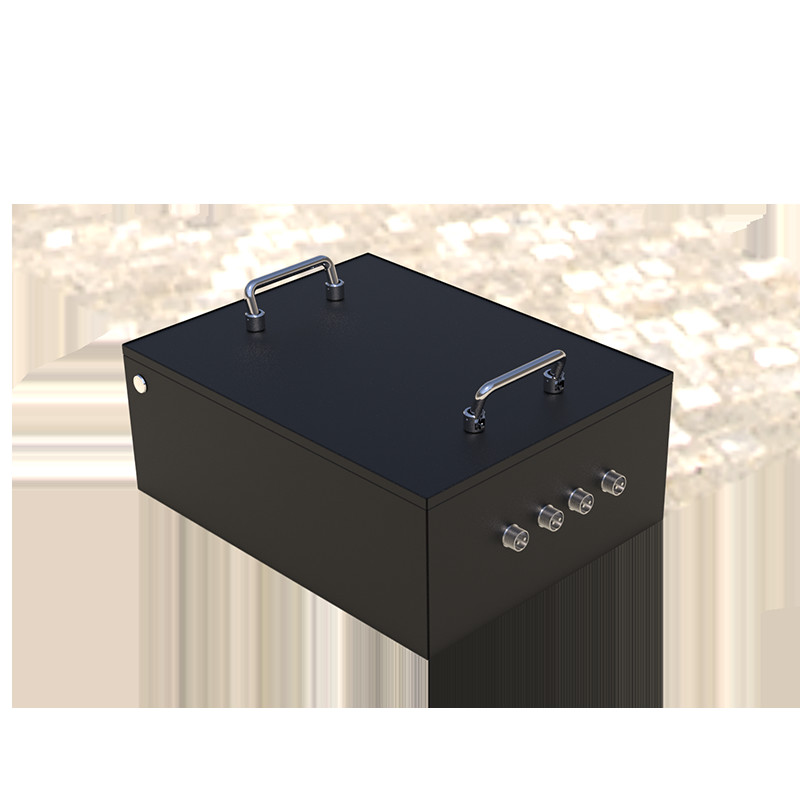

64V 105AH Mower lithium iron phosphate battery scheme

Lithium iron phosphate battery has the advantages of high energy ratio, light weight, small size, high cycle life, high safety, high voltage, good consistency and so on. The design of lithium battery pack adopts Guoxun high-tech battery core, waterproof shell and waterproof special plug, and adopts thermal silicone pot-sealing technology inside, shock-proof, fire-proof, explosion-proof and waterproof level IP68; The output overcurrent protection value of the scheme is 150A, the maximum design capacity is 5Ah, and the automatic overtemperature protection device of 70℃ can meet the power demand of the equipment for a long time.

Product Parameter

Cell type: IFP27175200A-105Ah

Battery specifications: IFP27175200A-105Ah-20S1P-105Ah-64V

Product size: 400mmX310mmX235mm (Max)

Nominal voltage: 64V

Nominal capacity: 105Ah

Finished internal resistance: ≤150mΩ

Charging voltage: 74V

Charging current: ≤50A

Discharge current: ≤100A

Discharge cut-off voltage: 40V

Battery weight: 54kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Communication method: CAN communication

Battery case: aluminum alloy case

Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc

Application fields: lawn mower, fire, robot, logistics vehicle, etc

Product Characteristics

The design scheme of lithium battery pack adopts battery cell, high energy ratio, light weight, small volume, high cycle life, high safety, high voltage,

With positioning hole and portable handle, simple and reliable, easy to install

With waterproof shell and waterproof special plug, and the internal use of thermal silicone potting technology, shock-proof, fireproof, explosion-proof and waterproof grade IP68;

Battery protection management: Through CAN2.0 communication, the host is always reported the battery voltage, current, electricity and other information, while protecting the rechargeable smart battery pack, and providing overcharge and overcharge

Discharge, short circuit, over current and over temperature protection functions;

It can be equipped with battery switch to control discharge output

Battery pack safety, good discharge performance, long cycle life;

High cycle life of battery pack, in line with low carbon, energy saving, environmental protection value concept;
