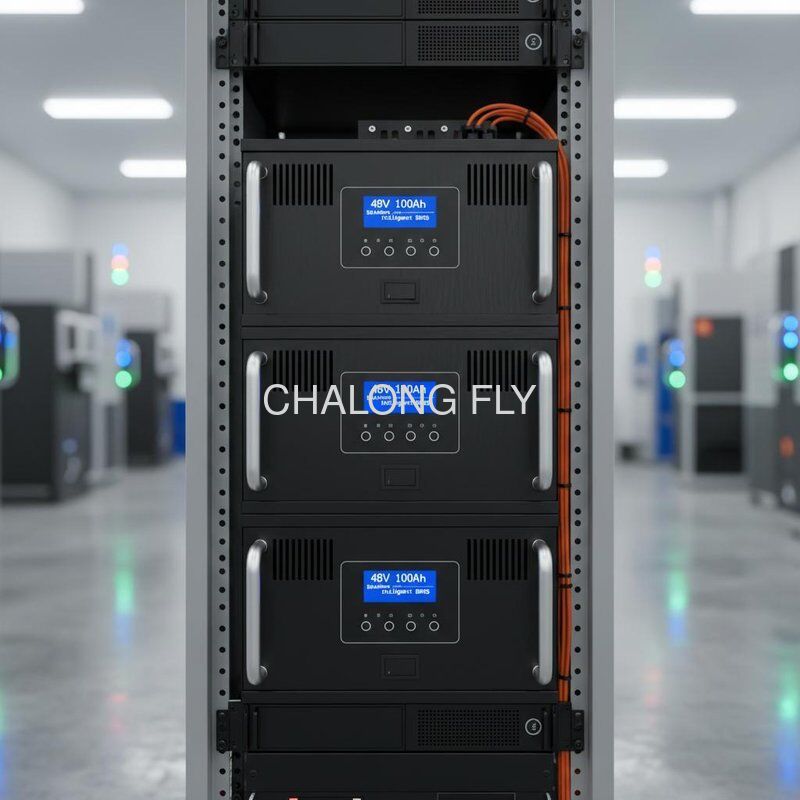

48V 100Ah Stackable Rack-mounted Lithium-ion Battery with Intelligent BMS for Industrial Energy Storage
48V 100Ah Stackable Rack-mounted Lithium-ion Battery with Intelligent BMS for Industrial Energy Storage
Contact Now

48V 100Ah Stackable Rack-mounted Lithium-ion Battery with Intelligent BMS for Industrial Energy Storage

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: Hunan,China Brand Name: Chalong Fly
Certification: CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc Model Number: CLFLE195

Detail Information
Model Number: 48V 100AH 200AH Solar Battery OEM/ODM: Acceptable
Customized: Yes
Highlight:

48V 100Ah Lithium-ion Battery

,

Stackable Rack-mounted LiFePO4 Battery

,

Intelligent BMS Energy Storage Battery

Product Description

Lithium-ion Stackable Rack Battery 48V 100Ah-200Ah | 5kWh-16kWh LiFePO4 Solar Energy Storage
The 48V 100Ah Lithium-ion Stackable Rack-mounted Battery utilizes advanced LiFePO4 cell technology, designed for 19-inch standard racks with stackable configuration to optimize space and facilitate easy capacity expansion. This battery delivers stable 48V/100Ah power output and incorporates intelligent BMS protection against overcharge, overdischarge, overcurrent, and overtemperature conditions.
Technical Specifications
Specification Item Details
Battery Type Lithium-ion Battery (LiFePO4)
Nominal Voltage 48V DC
Nominal Capacity 100Ah (25℃, 0.2C Discharge)
Energy 4.8kWh (48V*100Ah)
Cycle Life ≥5000 Cycles (@80% DOD, 25℃), Capacity Retention ≥80%
Charging Current Standard: 20A (0.2C); Max: 100A (1C)
Charging Voltage 58.4V (CCCV)
Discharging Current Standard: 20A (0.2C); Max Continuous: 100A (1C)
Operating Temperature Charging: 0~45℃; Discharging: -20~60℃
Storage Temperature -30~70℃
Dimensions (W*D*H) 482*450*132mm (19-inch, 3U)
Net Weight Approx. 28kg
Protection Function Overcharge, Overdischarge, Overcurrent, Short Circuit, Over-temperature, Cell Balance
BMS Function Intelligent Monitoring, Voltage/Capacity/Temperature Detection, CAN/RS485/Modbus
Enclosure Protection IP65
Certification CE, UL, UN38.3, IEC62133, ISO9001:2015
Mounting Type 19-inch Rack-mounted, Stackable (Max 6 Units in Series)
Self-discharge Rate <3% per Month (@25℃)
Key Product Advantages
Stackable Rack-mounted Design
19-inch standard rack-mounted configuration with vertical stacking capability to maximize space efficiency. Modular design supports up to 6 units in series for flexible capacity expansion and simplified maintenance.
High Safety & Stability
LiFePO4 cells provide exceptional thermal stability with no thermal runaway risk. Intelligent BMS continuously monitors system parameters and automatically cuts off circuits during abnormal conditions to ensure operational safety.
High Energy Density & Reliable Power
4.8kWh energy capacity with greater than 95% discharge efficiency and stable 48V output, making it ideal for applications requiring consistent, reliable power supply.

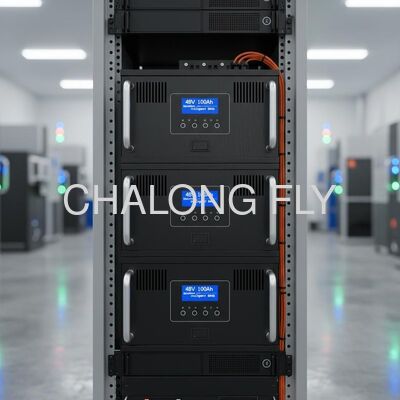

48V 100Ah Stackable Rack-mounted Lithium-ion Battery with Intelligent BMS for Industrial Energy Storage 0
Application Scenarios
Widely utilized in data centers, communication base stations, industrial UPS systems, renewable energy storage (solar/wind), forklift power, RV/marine applications, off-grid systems, and emergency rescue operations.

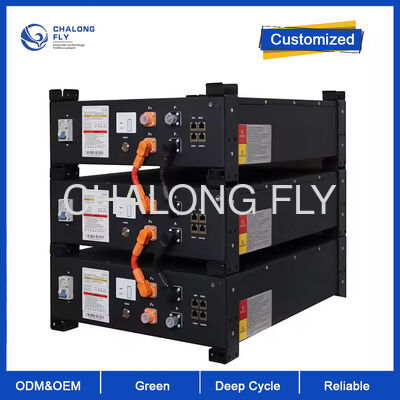

48V 100Ah Stackable Rack-mounted Lithium-ion Battery with Intelligent BMS for Industrial Energy Storage 1
Frequently Asked Questions
What is the cycle life of this battery?
≥5000 cycles at 80% depth of discharge at 25℃ with capacity retention ≥80%; up to 7000 cycles with shallow charge/discharge cycles.
How many units can be stacked together? Is it safe?
Maximum 6 units in series. Features stable rack design with independent BMS for real-time monitoring and automatic shutdown during abnormal conditions.
How long does it take to fully charge the battery?
Approximately 6 hours at 20A (0.2C) or about 1.5 hours at 100A (1C); standard charging current is recommended for optimal performance.
What is the applicable temperature range? Can it be used in low temperatures?
Charging: 0~45℃; Discharging: -20~60℃. Operational at -20℃ with slight capacity attenuation and includes low-temperature protection features.
Does the battery include a BMS? What functions does it provide?
Yes, includes comprehensive BMS with real-time monitoring, multiple protection mechanisms, cell balancing, and communication support (CAN/RS485/Modbus).
What certifications does this battery hold?
CE, UL, UN38.3, IEC62133, ISO9001:2015 certifications, ensuring compliance with international safety and quality standards.
