HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System
HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System
Contact Now

HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System

Minimum Order Quantity : 10-1000 units Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: Hunan,China Brand Name: CLF
Certification: CE/ROHS/UL/UN38.3/CB/MSDS Model Number: CLF-ME200

Detail Information
Battery Type: Sodium Iron Battery Product Name: 3.2v 200ah
Brand: HINA End-off-charge Voltage: 3.95V
End-off-dicharge Voltage: 2V Standard Discharging Current: 66A, 0.33C
Standard Charging Current: 200A, 1C Maximum Instantaneous Charging Current: 66A, 0.33C
Maximum Instantaneous Discharging Current: 200A, 1C Cycle Life: More Than 4000times
Initial IR: ≤0.25 Size: L207*T72*H174
Weight: 5+/-0.2KG
Highlight:

220Ah Sodium Ion Battery Cell

,

200Ah Sodium Ion Battery Cell

,

3V Sodium Ion Battery Cell

Product Description

HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System 0
HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System

Product Parameter



Normal parameters
NO.
Item
General Parameter
1
Type
3V LFP (Sodium Iron Battery)
2
Standard capacity(0.2C5A)
200AH
3
Rated voltage3
V
4
Max.charge voltage
3.4/3.65/3.95V
5
Cut-off voltage
2.0V
6
Standard charge current
66A ,0.33C
7
Standard continuous discharge current
200A , 1C
8

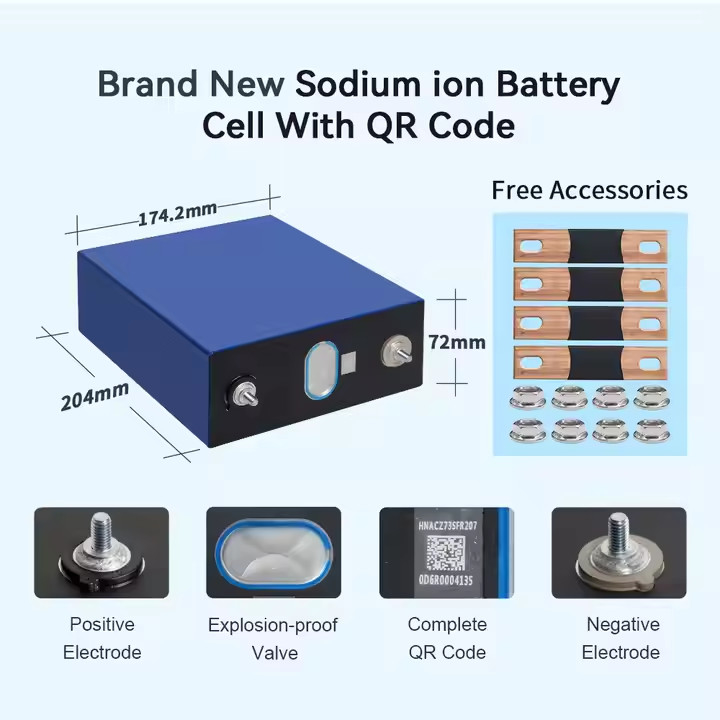

Battery dimension
Thickness:72±0.8
Breadth:173.8±0.8
Height(exclude pole c
olumn):204.5±0.8
Height(include pole
column):207.0±0.8
9
(Approx.)Total weight(Approx.)
5±0.2kg
10
Standard charging temperature
-20℃~60℃
11
Discharge temperature
-40℃~60℃
12
Storage temperature
-40℃~60℃
13
Cycle life
>4000 times
14
Free accessories
Included M6 the busbars and bolts
15
Suitable for
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools...Solar and wind power systems, RV,
caravan



HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System 1

HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System 2

HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System 3


 HINA 3V 200Ah 220Ah Sodium Ion Battery Cell 4000 Cycles for DIY Battery Packs Energy Storage System 4







LiFePO4锂电池OEM ODM 36V 60V 72V Lifepo4电池组40AH 50AH 80AH电动滑板车电池8

LiFePO4锂电池OEM ODM 36V 60V 72V Lifepo4电池组40AH 50AH 80AH电动滑板车电池9

LiFePO4锂电池OEM ODM 36V 60V 72V Lifepo4电池组40AH 50AH 80AH电动滑板车电池10

锂电池OEM ODM 36V 60V 72V Lifepo4电池组 40AH 50AH 80AH 电动滑板车电池 13

LifePo4 锂电池 OEM ODM 60V 72V 20AH 40AH 50AH 电动滑板车电池 5000W 8000W Lifepo4 摩托车电池 14
