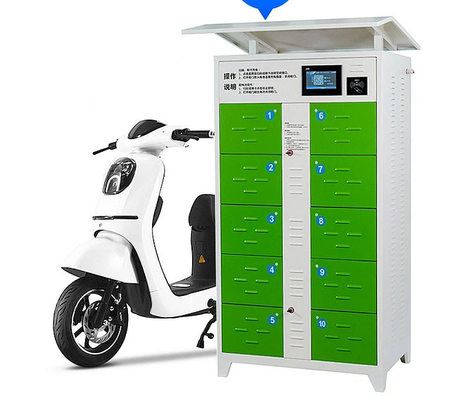

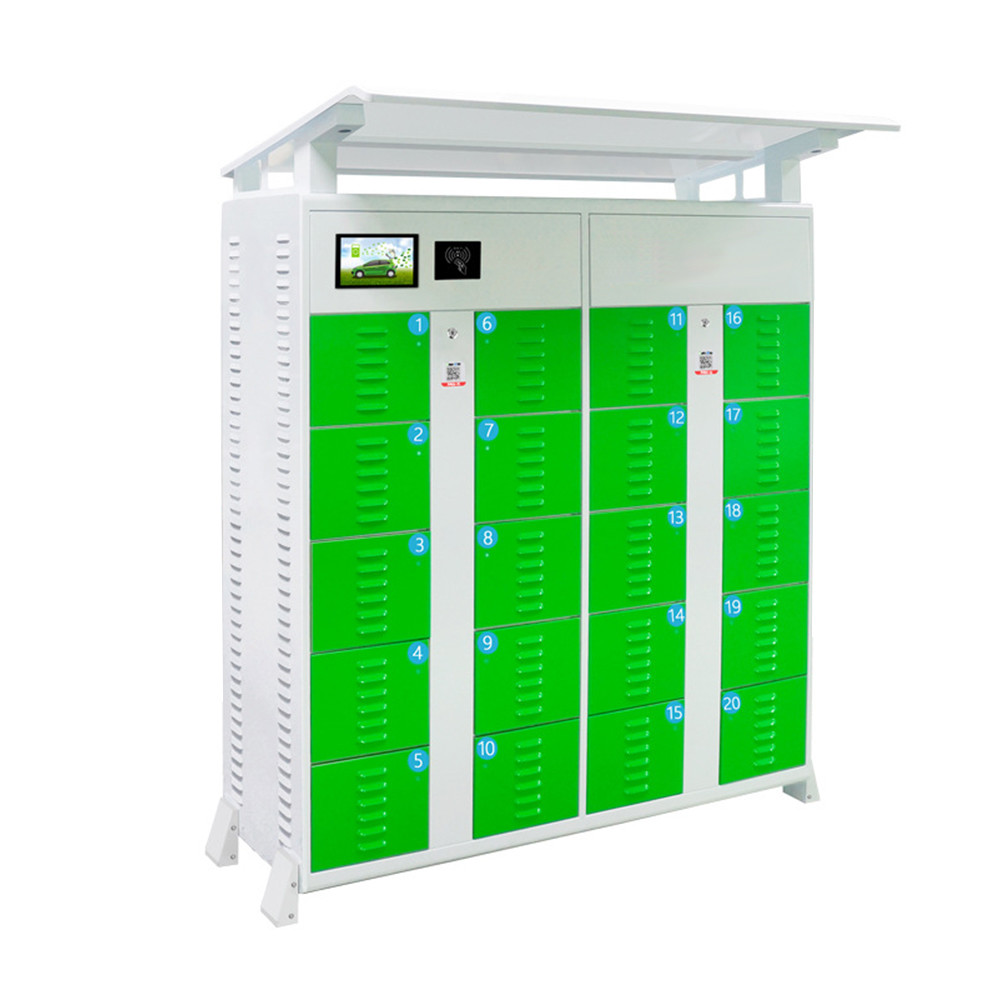

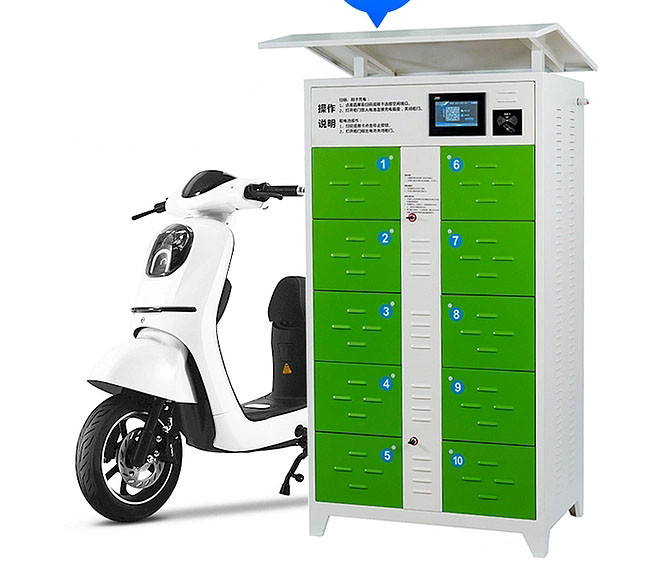

OEM ODM Public Charging Cabinet Battery Swapping Station for Motorcycle E-Bike Scooter

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: Hunan, China Brand Name: CLTF
Certification: MSDS, UN38.3,CE, ROHS, UL, TUV,FCC Model Number: CLFC-6666

Detail Information

Type: Electric, Wireless Charger, Power Supply Adapter, Fast Charger Usage: Lithium Battery For Electric Motorcycle / Scooter
Protection: Short Circuit Protection, Over-charging, Overcurrent, Overvolta Input Voltage And Current: 100-240V/0.2A, 100-240V/0.15A, 100-240V/0.6A, 100-240V/0.5A
Output Power: 6000W Function: QC4.0, VOOC 3.0, SuperVOOC 1.0, SuperVOOC 2.0
Port: 6 X USB, DC, AC Cycle Life: 2000 Cycles
OEM/ODM: Accept OEM And ODM Application: Electric Vehicle E-bike Scooter
Material: Aluminium Alloy Output: 5W/7.5W/10W/15W
Input: 100-240V 50/60HZ Battery Type: Lifepo4/lithium Battery
Highlight:

Motorcycle Battery Swapping Station

,

OEM Battery Swapping Station

,

2000cycles Battery Swapping Station

Product Description



OEM ODM Hotsale Public Charging Cabinet Battery Swap Module Motorcycle E-Bike Scooter Battery Swapping Charging StationOEM ODM Public Charging Cabinet Battery Swapping Station for Motorcycle E-Bike Scooter 0



Battery Swap Stations Cabinet Charging Station Cabinet Battery Swap System For Motorcycle



If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.



Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.



Specification
Parameter
Cabinet Size
600(W)*560(L)*1682(H)mm
Chamber Size
128(W) *180(L) *330(H)mm
Chamber Quantity
5/8/12 slots(operating individually)
Battery Communication Method
RS485,CAN
Touch screen
7 inch (Standard)
Input Voltage
180~240VAC 50HZ
Input Power
6200W
Max Power per bin
900W
Operating environment
Altitude≤3000m, 0~55℃
Dynamic power adjustment
Standard/Charging according to the BMS strategy
Speaker
Standard(embedded)
Protection
Lightning protection/IP54/ Water immersion detect
Battery Health Diagnosis
Standard, need battery BMS support
High temp detect
Standard, background warning function
Remote monitor
Standard(Diagnose, manipulate online)
Chamber indicator
Standard(3 colors’ LED)
Communication
Standard 4G/WIFI, optional GPS/BT
Swapping Method
Scan QR / Reservation / Offline-swapping
Camera
Optional (Outside with shelf)
Rainshed
Optional (Metal sheet with Painting)
Distinguisher
S type aerosol
Anti-Fall block
Optional (4 pieces)
Appearance
Can be customized according to customer needs
