Floor Standing LiFePO4 Solar Battery Cabinet Pack 51.2V 30KWH

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE,MSDS,ROHS,UN38.3,KC,CB Model Number: CLTF-0264

Detail Information

Nominal Capacity: 30KWH Nominal Voltage: 51.2V
Dimensions(L×W×H): 690*560*580mm Battery Type: LiFePO4 Lithium Ion Battery
Application: Home Appliances/Solar Energy Storage Systems Logo: Can Custom Your Own Logo
Mounting Type:: Ground Mounting, Floor Mounting Cycle Life: 6000-8000 Times
Highlight:

30KWH Solar Battery Cabinet Pack

,

Floor Standing LiFePO4 Solar Battery 51.2V

Product Description

Floor-Standing LiFePO4 51.2V 30KWH Solar Battery Cabinet Packz



Products Details:
ItemSpecificationNote





























Battery Pack

Nominal Voltage:51.2VSupport Customized 6.4V-96V
Nominal Capacity:30KWHAny capacity can be customized
End of Discharge Voltage:58.4V
End of charge Voltage:38.4V
Max.Cont. Charge Current:≤100AFree Customization Service
End of Charge Current:100mAFree Customization Service
Nominal Discharge Current:100A-200A/ModuleFree Customization Service
Max. Pulse Discharge Current:400A(3S)/ModuleFree Customization Service
Internal Resistance:≤50mΩ
Operating Charge Temperature:0~45℃
Operating Discharge Temperature:-20~60℃
Storage Temp.(60-80% SOC Storage):-10~45℃
Charge Method:CC/CV
BMS:Built in BMSSupport Customized Extra Function
Dimension:690*560*580mm
Weight:243KG
Cycle Life:6000+(Cycle @RT, 1C rate)
Battery Cell UsedPrismatic LiFePO4 Cell/ Pouch LiFePO4 Cell3.2V 200AH16S1P
BMSCharge Protection, Over charge Protection, Over Discharge Protection, Short Circuit ProtectionSupport Customized Extra Function of RS485/RS232/ CANbus
LED Indicator//



Battery Case

Metal Case/
IP Grade:IP56

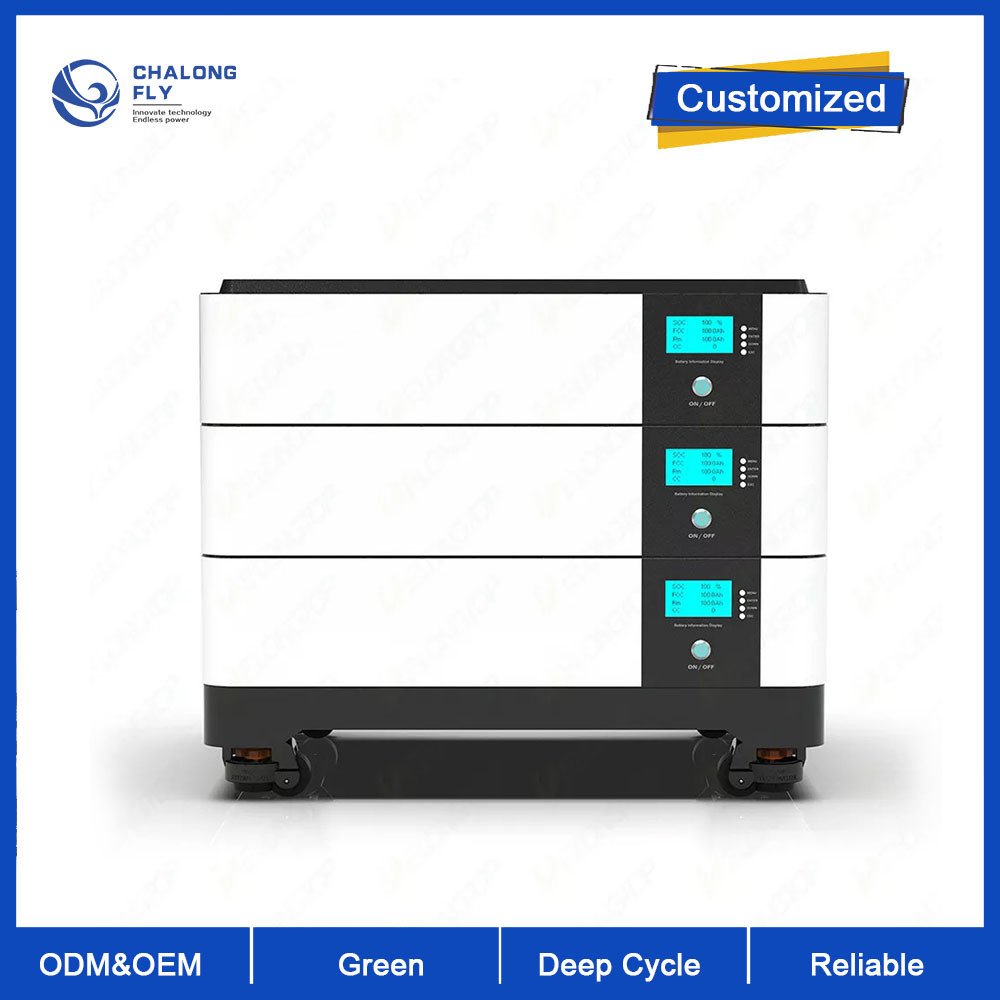

Floor Standing LiFePO4 Solar Battery Cabinet Pack 51.2V 30KWH 0

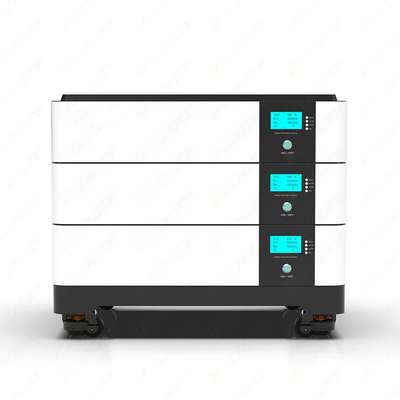

Floor Standing LiFePO4 Solar Battery Cabinet Pack 51.2V 30KWH 1

1. 51.2V 200AH LiFePO4 Battery Module, 2 modules in parallel.
2. Support smart communication function RS485/ RS232/ CAN bus and meet most of inverters / MPPT controllers.
3. Built in accurate coulomb counter (display), ON/OFF Switch, Handles and moving pulleys.

Floor Standing LiFePO4 Solar Battery Cabinet Pack 51.2V 30KWH 2
What Battery Cell We Use:
We are responsible for our customers and our brand.
Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH...

1.Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
2.Through a number of certification and testing, quality assurance.
3.There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic
cells: not easily deformed , stable performance, mature market, more popular at present.


Product Packaging
To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:
1) Inner box - Carton - Pallet- Container
2) Packaging also can be made by customers’ requirements



Floor Standing LiFePO4 Solar Battery Cabinet Pack 51.2V 30KWH 3

Floor Standing LiFePO4 Solar Battery Cabinet Pack 51.2V 30KWH 4



Q1: What are there included for a battery or pack , may I buy charger from you?
A1: Battery case, BMS, battery pack, can buy customized connector, charger


Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.


Q3. What is your warranty?
A3: We offer 3 years warranty for all our battery pack for different situation. We ensure at least 3500 cycle life for the
LiFePO4 battery pack, which means, after 3500@85% DOD, there will still around 60% capacity left. You can use it for at least 10 years for normal 1 time charge and discharge everyday.


Q4: Can I customize the size of battery?
A4: Of course yes if your quantity MOQ workable.


Q5. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A5: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1. Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2. Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3.Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4.If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.


Q6. Can we use it for car engine?
A6: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
