Cabinet ESS 258KWH 289KWH 385KWH LiFePO4 Energy Storage Cabinet for Industrial and Commercial Energy Storage Cabinet
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | ISO9001, UN38.3, CE, CB,MSDS | Model Number: | CLTF-0234 |
|
Detail Information |
|||
| Rated Capacity:: | 100Ah | Nominal Voltage: | 48V |
|---|---|---|---|
| Energy: | 5KWh | Weight: | 65KG |
| High Light: | 48v200ah Lithium Ion Home Solar Battery,Lithium Ion Home Solar Battery 5KWh,Powerwall Lifepo4 Prismatic Battery Home Energy |
||
Product Description

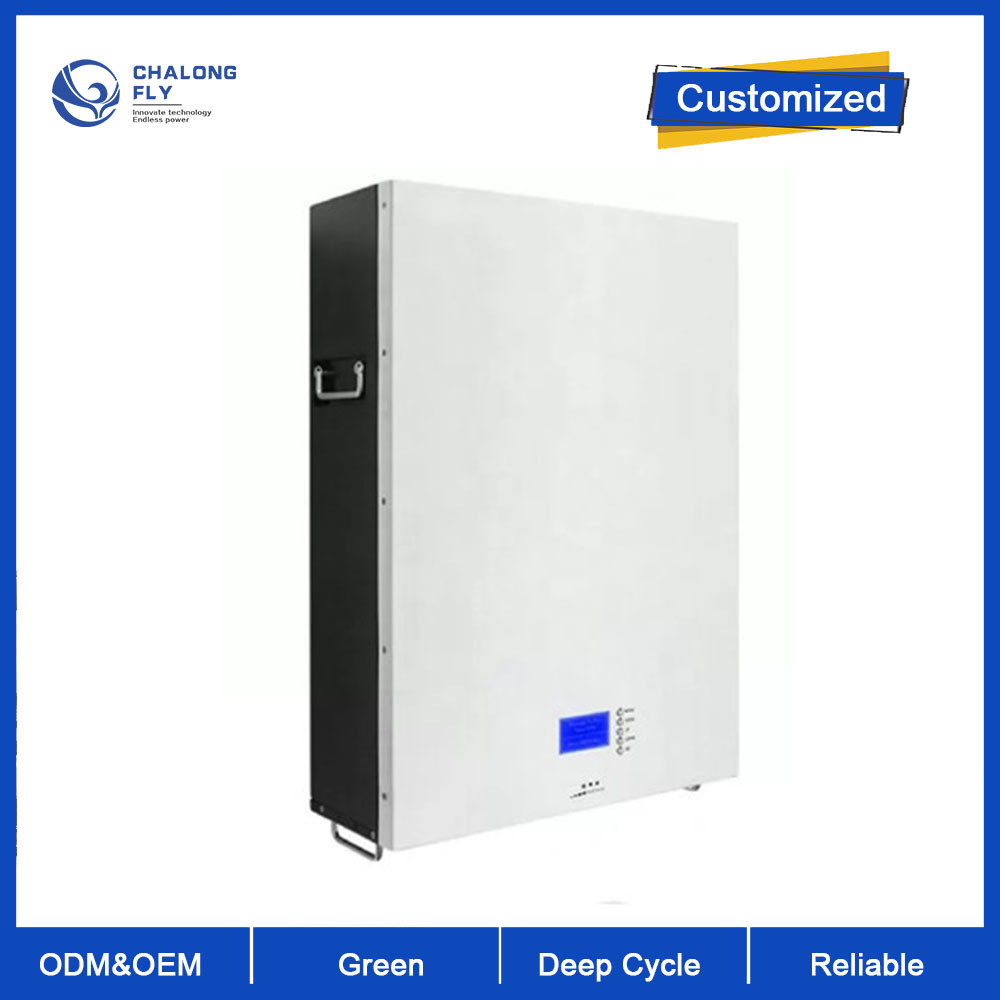

Lifepo4 Powerwall 48v200ah Lithium Ion Home Solar Battery 48V 100Ah 5KWh Powerwall Lifepo4 Prismatic Battery Home Energy
Specifications:
| NO. | Item | General Parameter | Remark |
| 1 | Combination method | 15S2P | |
| 2 | Typical Capacity | 100Ah | Standard discharge after Standard charge |
| 3 | Factory Voltage | 49V-51.0V(40-60%) | Mean Operation Voltage |
| 4 |
Voltage at end of
Discharge
|
40-44V
|
Discharge Cut-off Voltage |
| 5 | Charging Voltage | 53-55V | |
| 6 | Internal Impedance | ≤60mΩ |
Internal resistance measured at AC 1KHZ
after 50% charge The measure must uses the new batteries
that within one week after shipment and
cycles less than 5 times
|
| 7 | Standard charge |
Constant Current 40A
Constant Voltage see No.5
0.02CA cut-off
|
Charge time : Approx 6 h Limiting current 20A |
| 8 | Standard discharge |
Constant current:40A
|
end voltage see NO.4 |
| 9 |
Maximum Continuous
Charge Current
|
50A | ≥10ºC |
| 10 |
Maximum Continuous
Discharge Current
|
50A
|
≥10ºC |
| 11 |
Operation Temperature
Range
|
Charge: 0~45℃ Discharge: -20~55℃ |
60±25%R.H.
Bare Cell
|
| 12 |
Storage Temperature
Range
|
Less than 12 months : -10~35℃ less than 3 months: -10~45℃ Less than 7 day : -20~65℃ |
at the shipment state |
| 13 | Dimensions |
680*485*180 (220)mm
Include Bracket
|
|
| 14 | Weight | 65KG |
Features:
1. High Energy: 5KWh energy storage, can meet 1 day electricity usage of Home.
2. Bank-up function: no need worry of out of electricity when any emergency situation.
3. Solar system. can work with Solar panels to storage Solar energy. save money and eco friendly
4. Save electricity fee. can adjust electricity usage when high price, and save more money.
5. Long service life: Lifepo4 battery Prismatic cell, can service 3000 times when left 80% energy, that is mean can service 10~15 years when High frequency of use.
6. Safe. Lifepo4 battery has no possibility of explosion when any usage condition, it is very safe to place it in house.
7. Save space . Wall mounted design, don't take up space.
FAQs:
Q: Are you manufacturer?
A: We are manufacturer, and we sincerely welcome you to visit our factory!
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Thanks to send us your requirements to custom the batteries.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
