Cabinet ESS 258KWH 289KWH 385KWH LiFePO4 Energy Storage Cabinet for Industrial and Commercial Energy Storage Cabinet
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | ISO9001, UN38.3, CE, CB,MSDS | Model Number: | CLTF-0231 |
|
Detail Information |
|||
| Rated Capacity:: | 200Ah | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Energy: | 10KWh | Resistance: | 30mΩ |
| High Light: | 48v200ah Lithium Ion Home Solar Battery,Tesla Lifepo4 Powerwall Home Solar Battery,Deep Cycle 10KWH Lithium Ion Battery |
||
Product Description

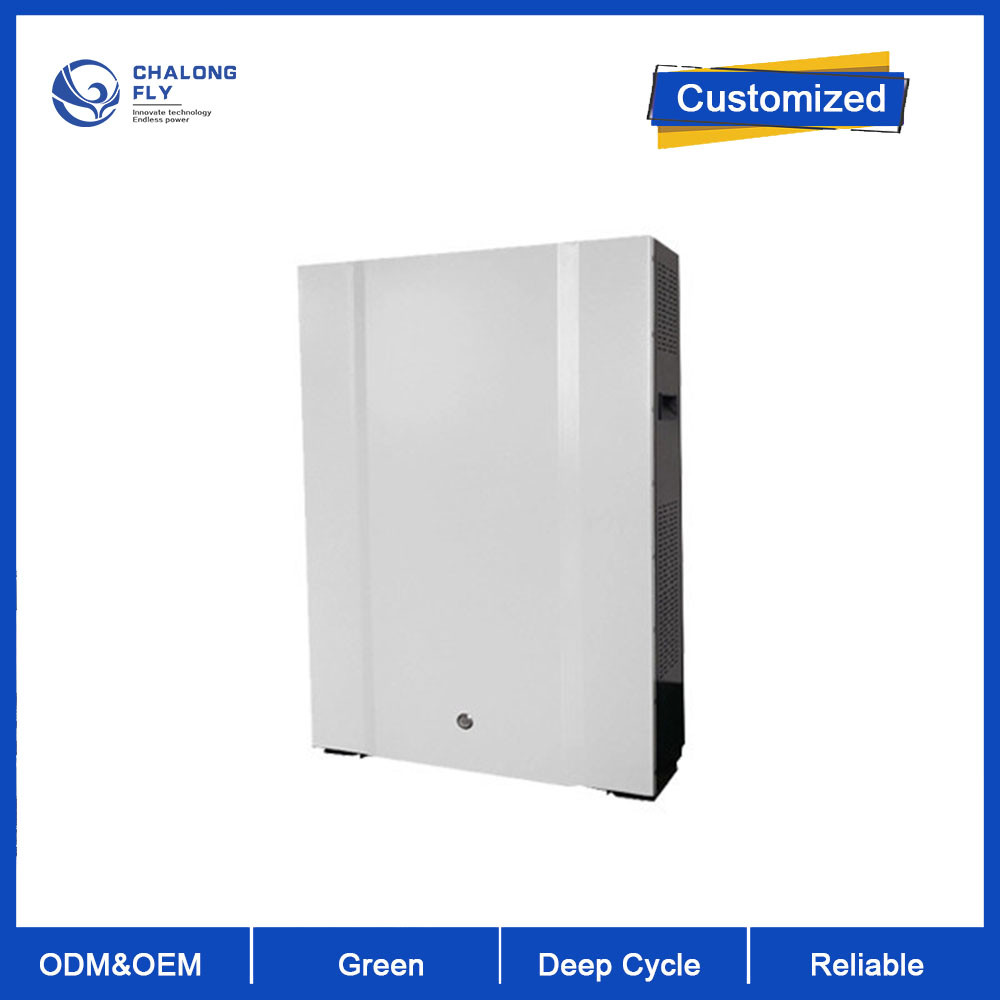

Rechargeable Deep Cycle Li Ion 10KWH Tesla Lifepo4 Powerwall 48v200ah Lithium Ion Home Solar Battery For Solar Battery
Specifications:
| Model | CLTF-0231 | |
| Cell Type - Chemistry | Prismatic- LiFePO4 | Prismatic- LiFePO4 |
| Rated Capacity | 100Ah | 200Ah |
| Rated Voltage | 51.2V | 51.2V |
| Energy | 5KWh | 10KWh |
| Resistance | 30mΩ | 20mΩ |
| Self Discharge | <1.5% per month | <1.5% per month |
| Maximum Modules in Parallel | 4 | 4 |
| Dimensions (L x W x H) | 720*445*220mm | 820*720*220mm |
| Weight | 60Kg | 120Kg |
| Enclosure Protection | IP65 | IP65 |
| Discharge Cut-off Voltage | 48V | 48V |
| Max Continuous Discharging Current | 80A | 120A |
| Peak Discharge Current | 120A for 3 seconds | 150A for 3 seconds |
| Recommended Discharge Current | 50A | 100A |
| Charging Limited Voltage | 57.6V | 57.6V |
| Max Charging Current | 50A | 100A |
| Recommended Charge Current | 25A | 50A |
| Charge Temperature Range | 0~45℃ | |
| Discharge Temperature Range | -20~60℃ | |
| Recommended Operating Temperature | 15~35℃ | |
|
Storage Temperature & Humidity Range (Less than 1 month) |
-20~35℃, 45~75%RH | |
|
Storage Temperature & Humidity Range (Less than 3 months) |
-10~35℃, 45~75%RH | |
| Recommended Storage Temperature & Humidity Range | 15~35℃, 45~75%RH | |
Features:
1. Most safe LFP battery technology, no cobalt.
2. Long lifetimes - 6000cycles (80%DOD,25°C).
3. Easily expandable.
4. Self-engineered BMS with cell level monitor.
5. Short circuit/ Over current/Over voltage/Over temperature protection.
Battery design:
Sample used scene:
FAQs:
Q: Are you manufacturer?
A: We are manufacturer, and we sincerely welcome you to visit our factory!
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Thanks to send us your requirements to custom the batteries.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Contact us for more information!
