LiFePO4 Lithium Battery 48V 100AH 200AH OEM ODM Lithium Ion Battery 10KW Rechargeable Home Solar Energy Storage Battery
Contact Person : Hunan Chalong Fly Energy Technology Co., Ltd.
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | ISO9001, UN38.3, CE, CB,MSDS | Model Number: | CLTF-0230 |
|
Detail Information |
|||
| Rated Capacity:: | 200Ah | Nominal Voltage: | 12V |
|---|---|---|---|
| Energy: | 2560Wh | Resistance: | 10mΩ |
| High Light: | 12V 200Ah Deep Cycle Solar Battery,Solar Battery Storage System LFP 2560Wh |
||
Product Description
Specifications:
|
MODEL
|
CLTF-0230
|
|
Cell Type - Chemistry
|
Prismatic- LiFePO4
|
|
Rated Capacity
|
200Ah
|
|
Rated Voltage
|
12.8V
|
|
Energy
|
2560Wh
|
|
Resistance
|
10mΩ
|
|
Self Discharge
|
<1.5% per month
|
|
Maximum Modules in Parallel
|
4 |
|
Dimensions (L x W x H)
|
239*239*280mm
|
|
Weight
|
24Kg
|
|
Enclosure Protection
|
IP65
|
|
Discharge Cut-off Voltage
|
11.2V
|
|
Max Continuous Discharging Current
|
100A
|
|
Peak Discharge Current
|
250A for 3 seconds
|
|
Recommended Discharge Current
|
50A
|
|
Charging Limited Voltage
|
14.6V
|
|
Max Charging Current
|
100A
|
|
Recommended Charge Current
|
25A
|
|
Charge Temperature Range
|
0~45℃
|
|
Discharge Temperature Range
|
-20~60℃
|
|
Recommended Operating Temperature
|
15~35℃
|
|
Storage Temperature & Humidity Range
(Less than 1 month)
|
-20~35℃, 45~75%RH
|
|
Storage Temperature & Humidity Range
(Less than 3 months)
|
-10~35℃, 45~75%RH
|
|
Recommended Storage Temperature & Humidity Range
|
15~35℃, 45~75%RH
|
Features:
1. Most safe LFP battery technology, no cobalt.
2. Long lifetimes - >2500 cycles @100% DOD.
3. Easily expandable it up to 10.24kWh.
4. Easily replacement the original lead acid battery.
5. Self-engineered BMS with cell level monitor.
6. Short circuit/ Over current/ Over voltage/ Over temperature protection.
7. Bluetooth APP available on request to see the status of the battery.
8. Strong steel black color case with Anderson terminal.
9. IP65 waterproof.
10. OEM logo available.

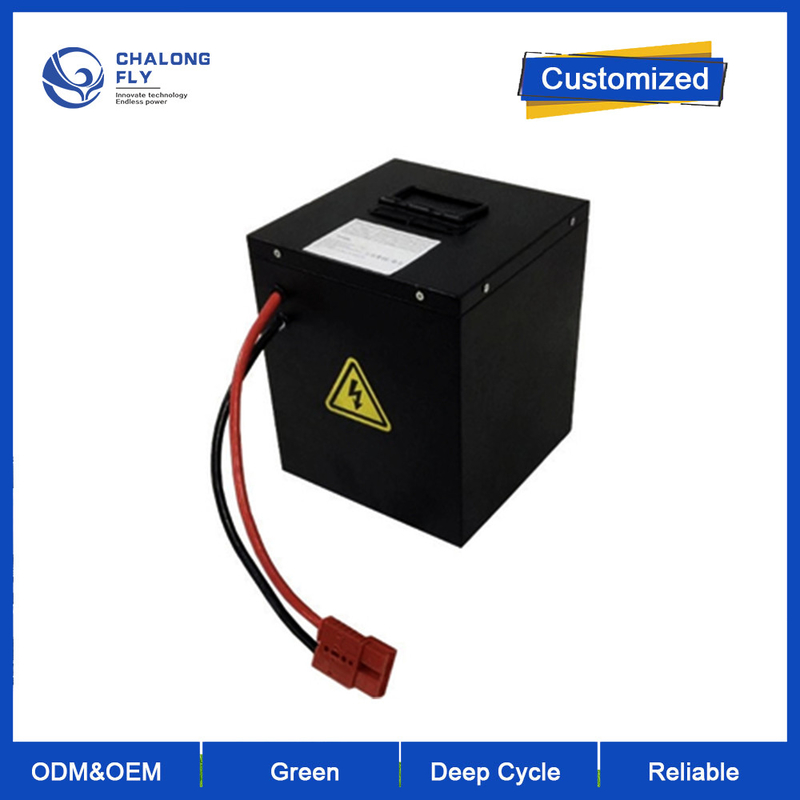

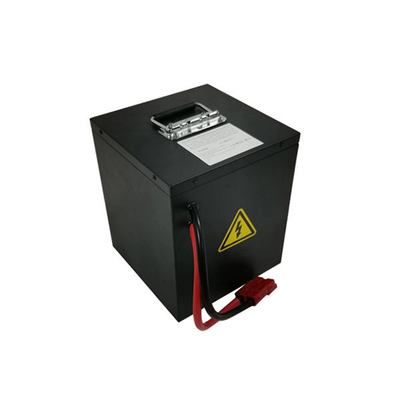

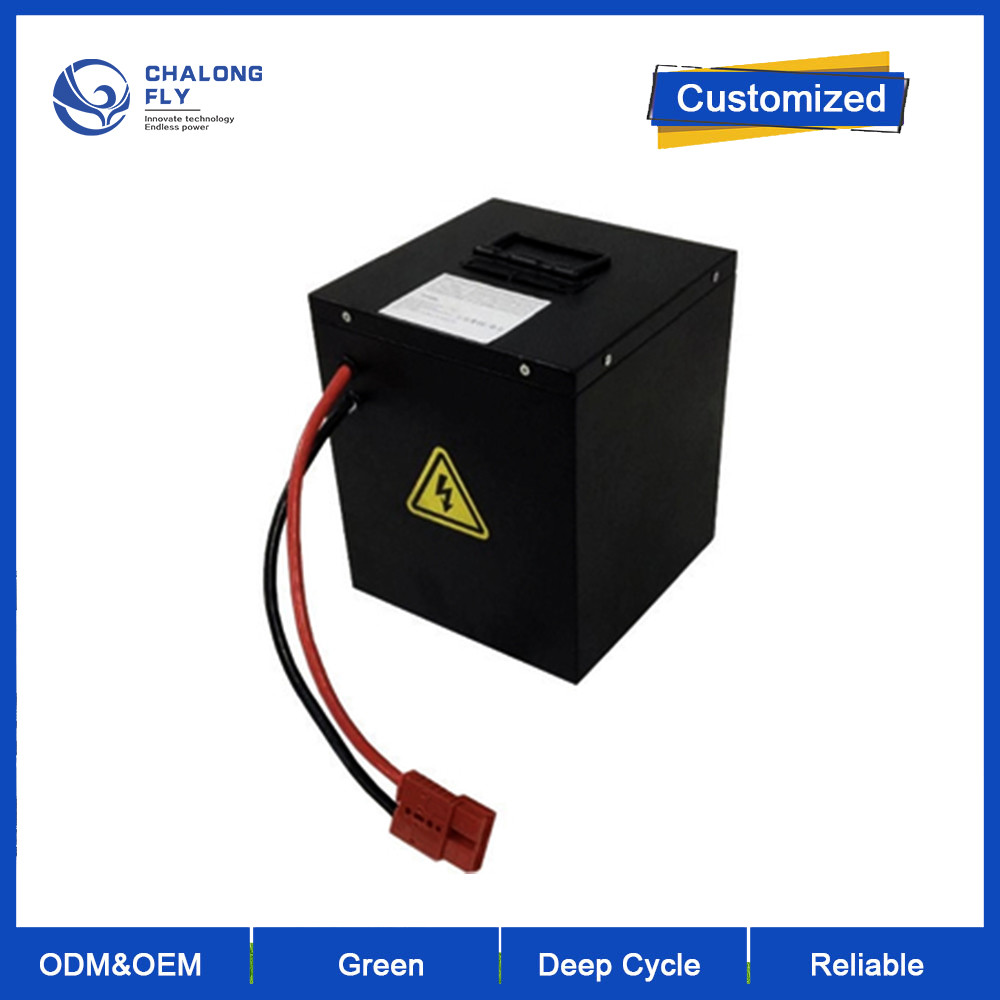

Pictures:
FAQs:
Q: Are you manufacturer?
A: We are manufacturer, and we sincerely welcome you to visit our factory!
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Thanks to send us your requirements to custom the batteries.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
