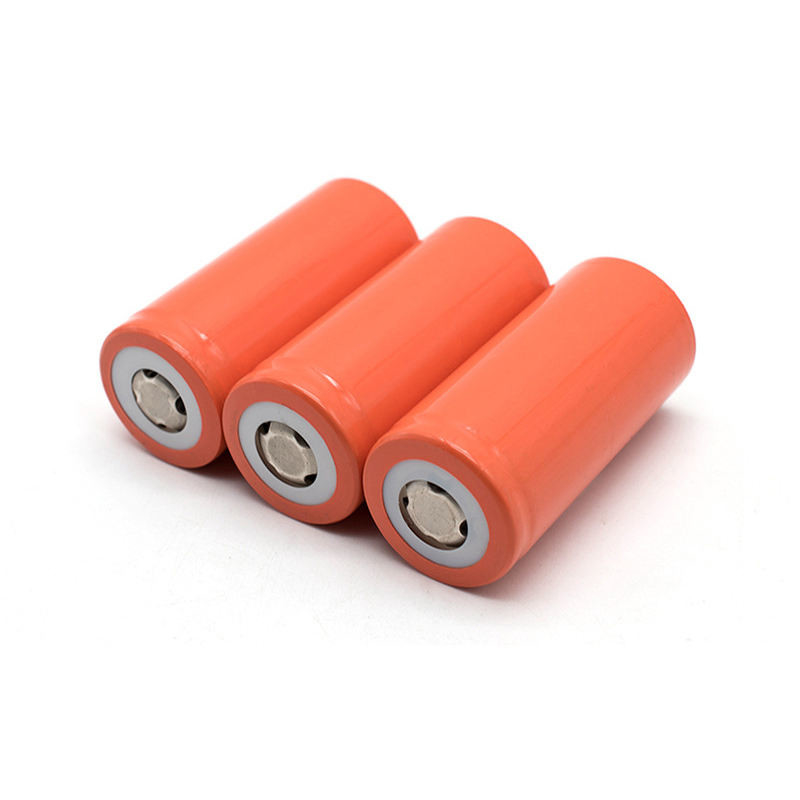

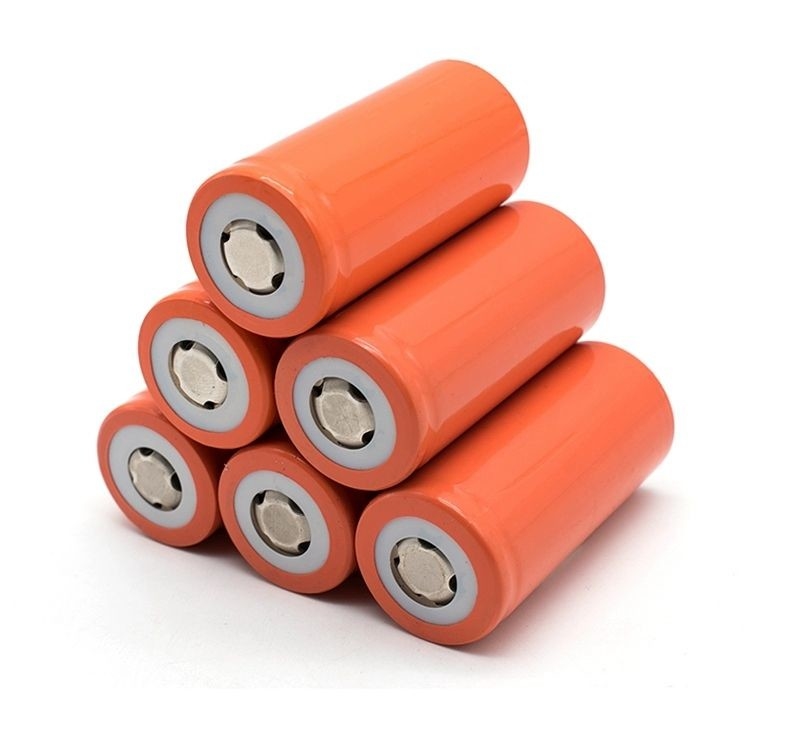

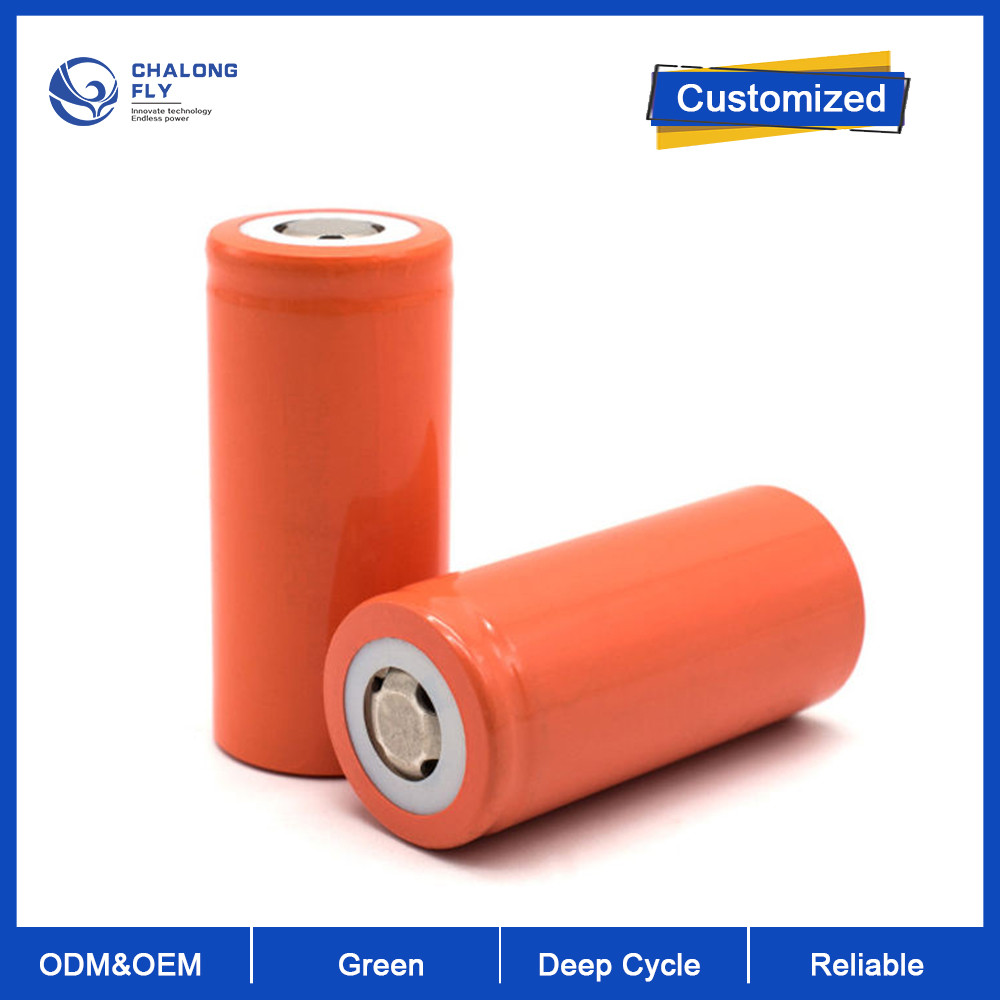

32700 LiFePO4 Battery Cell 3.2V 6000mAh Lithium Iron Battery Cell For Electric Motorcycle Escooter Cars Ebike
Contact Person : CLF
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10-1000 units | Price : | Negotiable |
|---|---|---|---|

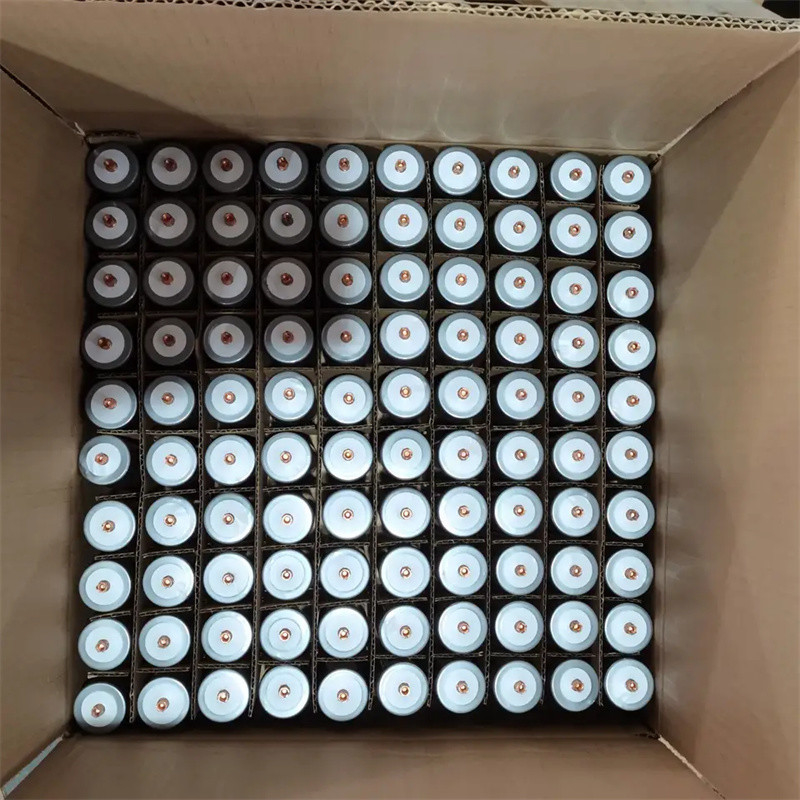

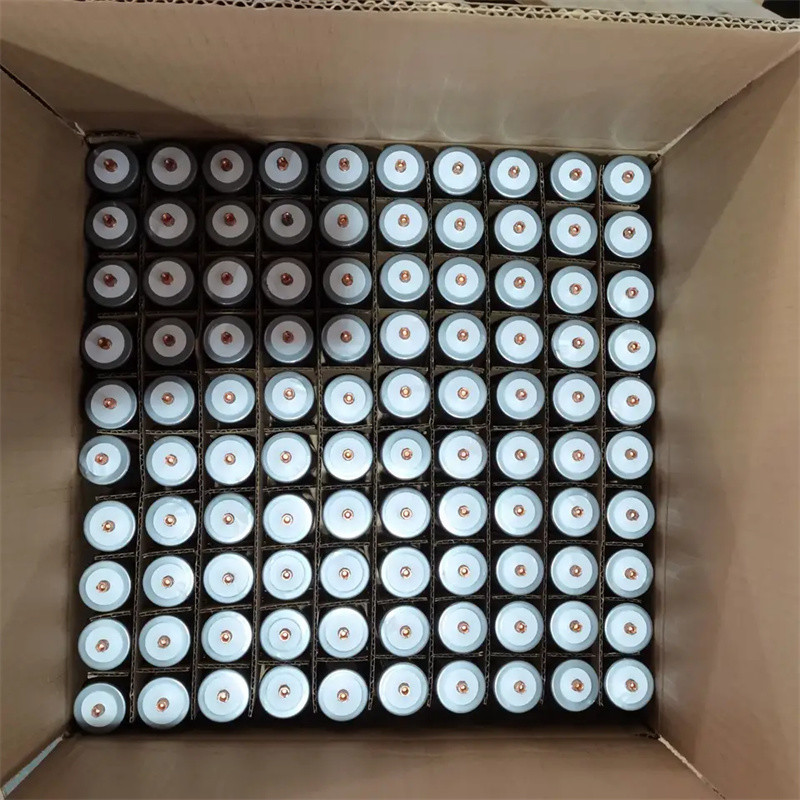

| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | ISO9001, UN38.3, CE, CB,MSDS | Model Number: | CLTF-0225 |
|
Detail Information |
|||
| Battery Type: | Lithium Ion, LiFePO4 | Cycle Life: | ≥1200 Times |
|---|---|---|---|
| Discharge Temperature: | -20~60°C | Keywords: | 32700 Lifepo4 Battery Cell |
| Capacity: | Real Capacity | The Discharge Rate: | Customized 3C 5C 10C |
| Application: | Electric Bicycles/Scooters, Electric Bike,electric Bicycle,scooter,u | OEM/ODM: | Accepatable |
| High Light: | 6Ah Solar Battery Storage System,76.8Wh Lithium Iron Phosphate Battery Pack,12.8V Lithium Iron Phosphate Battery Pack |
||
Product Description
If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.
Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
|
Item
|
Condition/Note
|
Specification
|
|
Nominal Capacity
|
1C discharge capacity
|
6.0Ah
|
|
AC Impedance
|
At AC1000Hz
|
6.5mΩ
|
|
Nominal Voltage
|
|
3.2V
|
|
Cell Size
|
Diameter: 32.2±0.3mm, Max 32.5mm
|
Height: 70.5±0.3mm, Max.70.8mm
|
|
Weight
|
|
140±5g
|
|
End-of-charge Voltage
|
CC Mode
|
3.65V
|
|
End-of-discharge Current
|
CV Mode
|
0.3A
|
|
Charging Method
|
Standard Charging
|
1C at CC/CV 60min
|
|
Max. Continuous Charging
|
6C at CC/CV 10min
|
|
|
End-of-discharge Voltage
|
CC Mode
|
2.0V
|
|
Max continuous Discharge Current
|
|
36A
|
|
Max Pulse Discharging Current
|
3s
|
60A
|
|
Cycle life
|
1C/100% DOD
|
≥2000 cycles
|
|
Operating Temperature Range
|
Charging Temperature
Discharging Temperature
Storage Temperature
|
0~60℃
-20~60℃
-20~45℃
|
