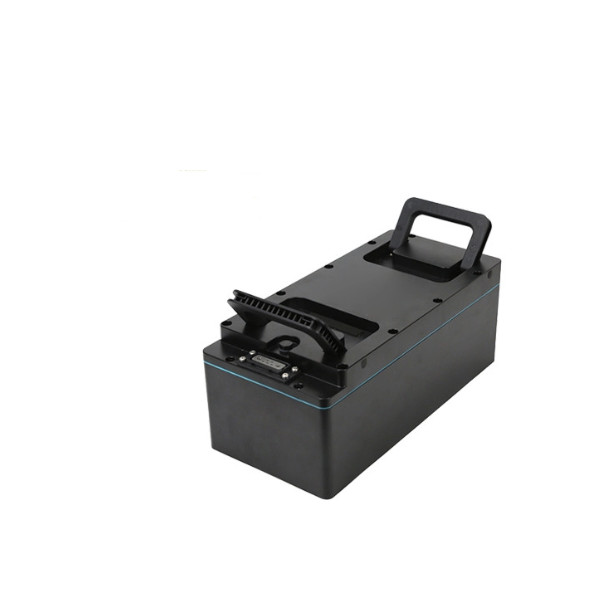

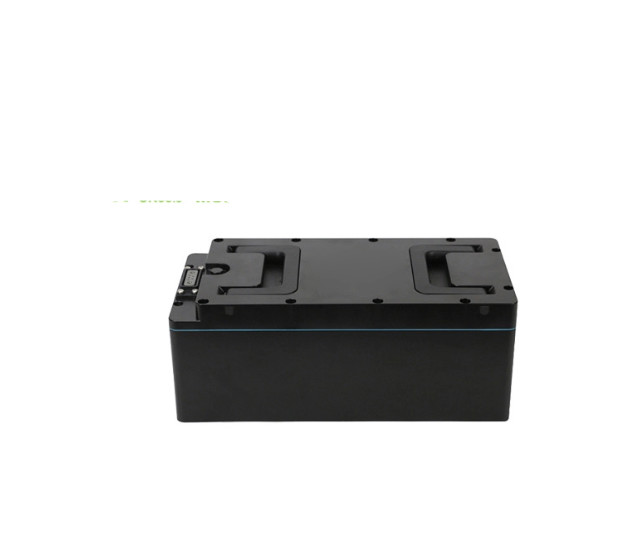

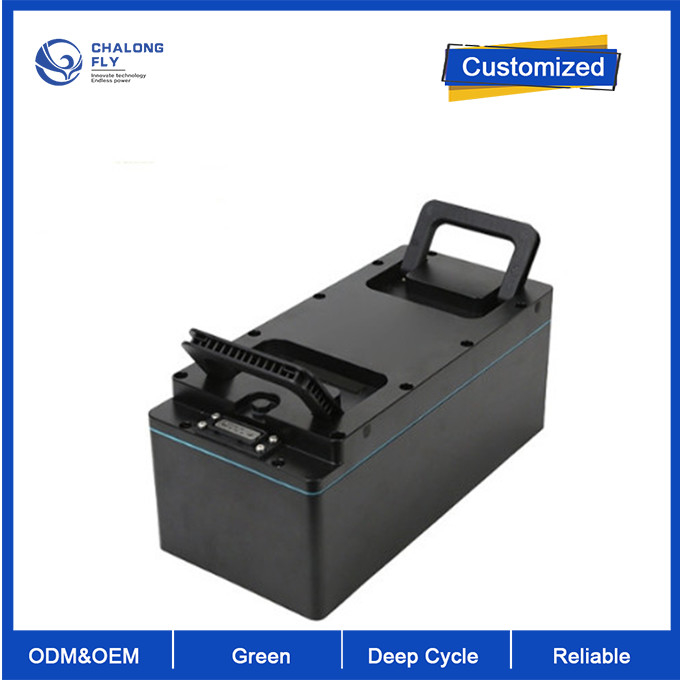

OEM ODM LiFePO4 lithium battery Customized battery LiFePO4 RV Camper Battery 12V 200Ah lithium battery packs

Minimum Order Quantity :	2 unit	Price :	Negotiable
Packaging Details :	Wooden case and Carton case	Delivery Time :	15-20 working days
Supply Ability :	10000 units per month

Place of Origin:	HUNAN, CHINA	Brand Name:	Chalong Fly
Certification:	CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc	Model Number:	CLFLE173

Detail Information
Voltage:	12.8V	Capacity:	200Ah
Dimension:	522240219 Mm	Weight:	20KG
Cycle Life:	>2500 Cycles @ 1C 100% DOD	Energy:	2560Wh
Cell & Method:	Lifepo4
Highlight:	2500 Cycles RV Camper Battery , 12V 2500 Cycles RV Camper Battery , LiFePO4 2500 Cycles RV Camper Battery

Product Description

If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.

Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.

OEM ODM LiFePO4 lithium battery Customized battery LiFePO4 RV Camper Battery 12V 200Ah lithium battery packs 0

Mechanical	Cell & Method	Lifepo4
	Dimension(LWH)	522240219mm
	Weight	20KG
Electrical Characteristics	Rated Capacity	200Ah
	High Rate Discharge Capacity	> 90% Rated Capacity
	Discharge Capacity @ -20ºC(-4ºF)	> 70% Rated Capacity
	Norminal Voltage	12.8V
	Energy	2560Wh
	Internal Impedance(@ 1000Hz.)	≤20 mΩ
	Cycle Life	>2500 Cycles @ 1C 100% DOD
	Months Self Discharge	≤ 5% @ 25ºC(77ºF)
	Efficiency of Charge	100% @ 1/3C
	Efficiency of Disharge	95% @1C
Standard Disharge	Max Charge Voltage	14.6V
	Charge Current	50A
	Max Charge Current	100A
Environmental	Charge Temperature	0 ºC to 45ºC(32ºF to 113ºF) @ 65±20%Relative Humidity
	Discharge Temperature	-20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity
	Storage Temperature	≤ 1 Month, -20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity
	Storage Temperature	≤ 6 Month, -20ºC to 30ºC(-4ºF to 80ºF) @ 65±20%Relative Humidity

Features:

1. Long service life.
2. Low self-discharge.
3. Environment friendly.
4. Good safety performance.
5. Maintenance-free operation.

Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys

Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)

Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment OEM ODM LiFePO4 lithium battery Customized battery LiFePO4 RV Camper Battery 12V 200Ah lithium battery packs 2
