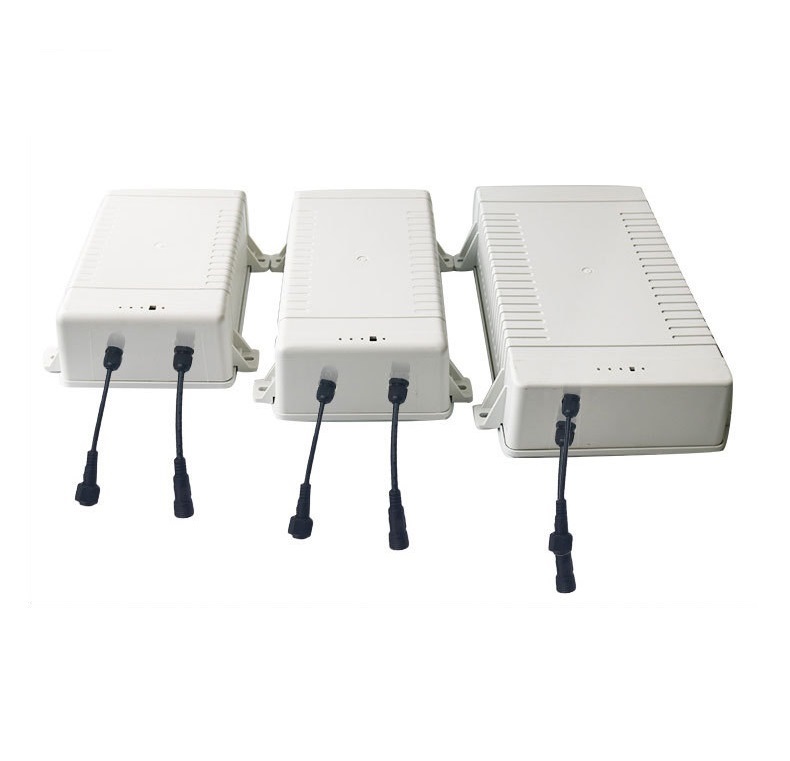

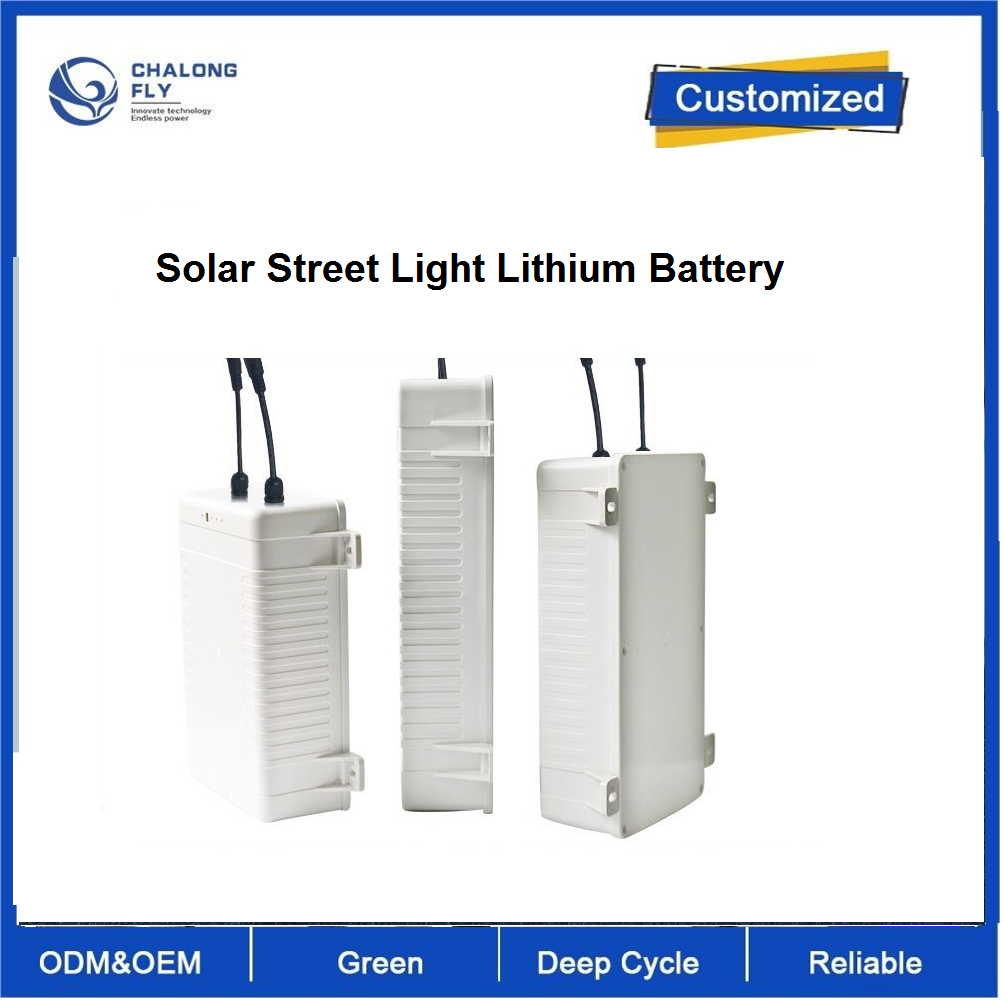

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: Hunan,China Brand Name: CLF
Certification: CE Model Number: CLF-R0020

Detail Information

Product: Solar Street Light Battery Battery Type: LiFePO4
Voltage: 25.6V Capacity: 60Ah
Size: 92*230*300mm Custom Service: Voltage, Model, Housing, Terminal, Wire Length
Highlight:

Adventure Folding Solar Panel Bag

,

18V Folding Solar Panel Bag

,

Foldable Solar Panel 200w

Product Description

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 0

Chalong Fly Public Battery Swapping Charging Station

Application to E-bike, Scooter, Motorcycle, Rickshaws


--The battery can be controlled remotely, and the battery can be turned off according to the actual situation.

--There is automatic fire extinguisher in each cabinet for emergency using.

--Software can be updated.
Product Description
Item Spec
Construction material Carbon steel plate
Material thickness 1.2mm
Appearance process Painting silk printing
Optimum structure Power push and pull battery
Single Slot bearing 30Kg
Slot number 12
Move Anti-skid roller,Bearing capacity of 800kg
Single Slot empty size 260*230*400mm,Customizable
Cabinet size 1100*600*1650mm
Weight 175Kg
This unit is the lithium battery charging cabinet, basic characteristics are as below:
Input voltage Output voltage Input current Rated input power Rated output power
220VAC/ 176-
264VAC
4890VDC ≤56A 10000W 750W

Environmental characteristics

Item Spec Remark
Operating ambient temperature 0℃ ~ 40℃ 24H at full load, normal performance
Storage ambient temperature -20℃ ~ 60℃ 48H, normal temperature recovery
2H, normal work
Operating ambient humidity 10% ~ 90% No condensation
Storage ambient humidity 10% ~ 90% No condensation
Above sea level 2000m No rated power reduction is achieved
below 2000m
Cooling mode Air blast cooling AC fan
IP Grade IP54 Suitable for outdoor use

Input characteristics

Item Spec Remark
Input voltage range 176-264VAC Rated voltage220VAC
Input voltage frequency range 47-63HZ Rated frequency is 50/60Hz
Total air switch 80A 1P+N Rated voltage220VAC
Input current (full load) ≤56A Rated voltage220VAC

Communication mode

Item Spec Remark
4G Yes/Selectable 4g Network Communication Control
WIFI Yes/Selectable The wifi network communication control
RJ45 No/Selectable RJ45 interface communication
Display screen 7 Inch The real-time screen displays the charging information
Sound Yes Suona

Output characteristics

Item Spec Remark
Output voltage 48~90VDC Output intelligent control
Output current ≤15A A battery Slot can output a 15A current
LED indication Green light Standby mode

Red light Charge mode

Red light to green light Charging end
Charging method Plug way
Start time ≤3S Charger power supply and slow start, reduce the impact current

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 1CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 2

Technical Services

1, smoke sensor: when the fire just happened, smoke into the detector will trigger the alarm.

2, aerosol device: through the isolation of oxygen, heat absorption, cooling, interrupt the combustion of free radicals, fully submerged covering space, to achieve efficient fire extinguishing purpose

3, temperature sensor: when the temperature rises suddenly, the detector will send an alarm signal to the server to remind the management

4, intelligent electronic lock: scan code automatically unlock, add solid core, with electronic control lock 100,000 + times of use, durable

5, water immersion device: water immersion power, lightning leakage prevention, safety protection

6. FCL fan: FCL fan for temperature control and heat dissipation. When it reaches 40 degrees, open the fan heat dissipation; Turn off the fan when the temperature is lower than 40 ° C, saving energy

7, anti-theft ability: anti-theft door lock, built-in door, no exposed screws

8. Lightning protection ability: lightning protection and leakage prevention

9, waterproof level: IP56, the cabinet body waterproof structure, PCB board in the cabinet are coated with three anti-paint

10, windproof level: resistance to 60m/s wind

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 3




CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 4CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 5

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 6

Application

It is used for takeout riders, logistics distribution, shared electric vehicles, batteries of the same specification, industrial parks, commercial centers, road parking points, etc

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 7

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 8

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 9

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 10

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 11

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 12

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 13

CLF 24V 60Ah Solar Energy Storage LiFePO4 battery for Solar Street Light Garden Light 14
