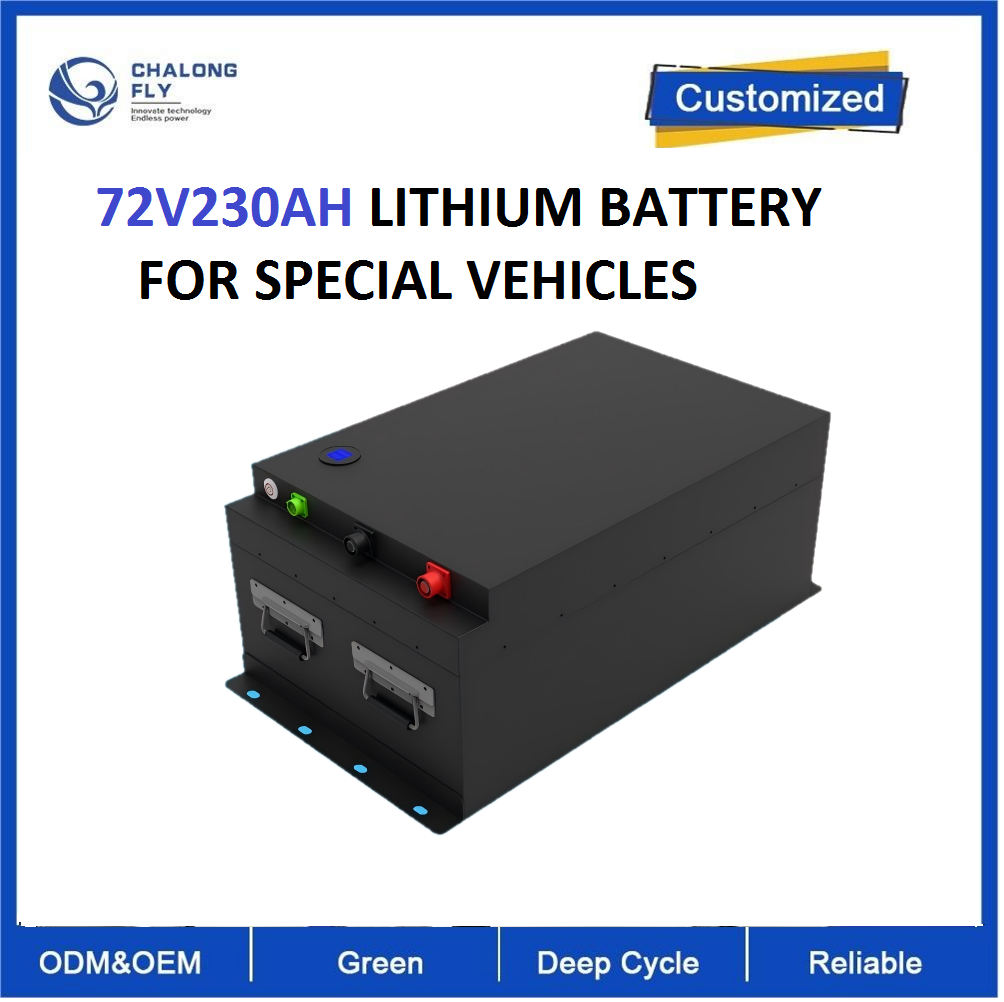

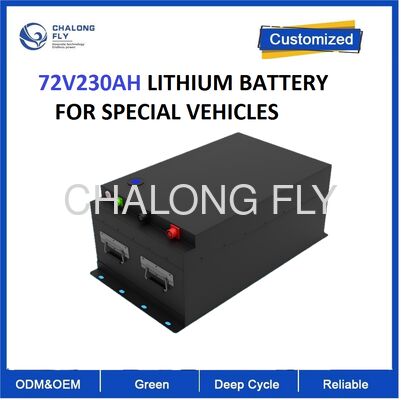

CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah High Voltage Battery Pack For Low Speed Vehicle Truck
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsAPP : +8618975107916
| Minimum Order Quantity : | 2 unit | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | Chalong Fly |
|---|---|---|---|
| Certification: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | Model Number: | CLF-R5112 |
|
Detail Information |
|||
| Battery Type:: | Lifepo4 Battery | Voltage:: | 73.6V |
|---|---|---|---|
| Capacity:: | 230AH | Continuose Discharge Current: | 300A |
| Peack Current: | 1000A | Size:: | Customized |
| OEM/ODM:: | Yes | Transport Package:: | Wooden Case |
| Waterproof Standard:: | IP67 | HS Code:: | 8507600090 |
| Features:: | Cost Effective, Fast Delivery, Stable Structure | Application:: | Electric Vehicle，electric Boat，electric Yacht,marine |
| Highlight: | 1000A Peak Discharge Lithium Battery,IP67 Waterproof LiFePO4 Battery,Customized Size EV Battery |
||
Product Description
| MODEL | 72230 |
| Cell Type - Chemistry | Prismatic- LiFePO4 |
| Rated Capacity | 230Ah |
| Rated Voltage | 73.6V |
| Energy | 16.928KWh |
| Resistance | 200mΩ |
| Self Discharge | <3% per month |
| PDU | BMS, 400A relays, fuses, COM socket |
| Dimensions (L x W x H) | L750*W470*H323mm
(Can make it smaller if you want) |
| Weight | 130Kg |
| Enclosure Protection | IP67 stainless steel case |
| Discharge Cut-off Voltage | 84V |
| Max Continuous Discharging Current | 300A |
| Peak Discharge Current | 1000A for 60 seconds |
| Recommended Discharge Current | 300A |
| Charging Limited Voltage | 84V |
| Max Charging Current | 100A |
| Recommended Charge Current | 100A |
| Charge Temperature Range | 0~50℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
| Available on request | Size, C rate, Communication protocol |
With an extremely large capacity 16928WH, it supports long-term and high-intensity operation of vehicles, significantly enhancing work efficiency.
The 72V high-voltage platform offers powerful performance and excellent heavy-load starting and climbing capabilities.
It has a long service life, requires no maintenance, and has a much lower full life cycle usage cost than traditional batteries.
It is equipped with an intelligent protection system, which is safe and stable, and can adapt to various complex working conditions.
CLF offers comprehensive solutions for special vehicles.
CLF products are highly suitable for many application scenarios in this market.
CLF lithium-ion battery systems are widely used in various projects such as aerial work platforms, forklifts, airport ground support vehicles, and mining transport vehicles.
If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.
CLF provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.
A: Yes, sample order is acceptable.
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
A: Yes, the client’s requirements is respected.
A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.
A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
Contact us for more informations!
