CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah High Voltage Battery Pack For Low Speed Vehicle Truck
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsAPP : +8618975107916
| Minimum Order Quantity : | 2 unit | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | Chalong Fly |
|---|---|---|---|
| Certification: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | Model Number: | CLFLE218 |
|
Detail Information |
|||
| Battery Type:: | Lifepo4 Battery | Voltage:: | 96V |
|---|---|---|---|
| Capacity:: | 300AH | Size:: | Customized |
| OEM/ODM:: | Yes | Transport Package:: | Foam & Plywood Case |
| Waterproof Standard:: | IP67 | HS Code:: | 8507600090 |
| Features:: | Cost Effective, Fast Delivery, Stable Structure | Application:: | Electric Vehicle，electric Boat，electric Yacht,marine |
| Highlight: | Customized Size Marine Lithium Battery,Stainless Steel Case LiFePO4 Battery,Thermal Management System Lithium Battery Pack |
||

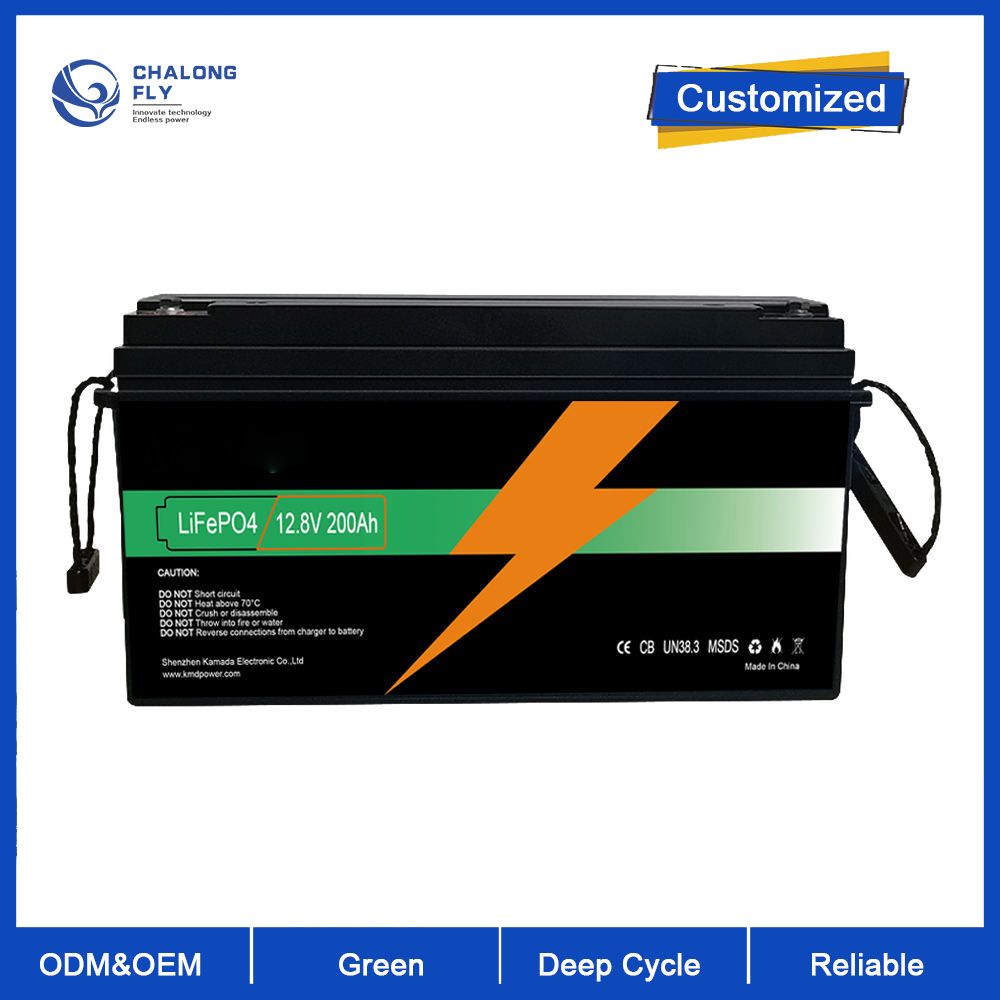

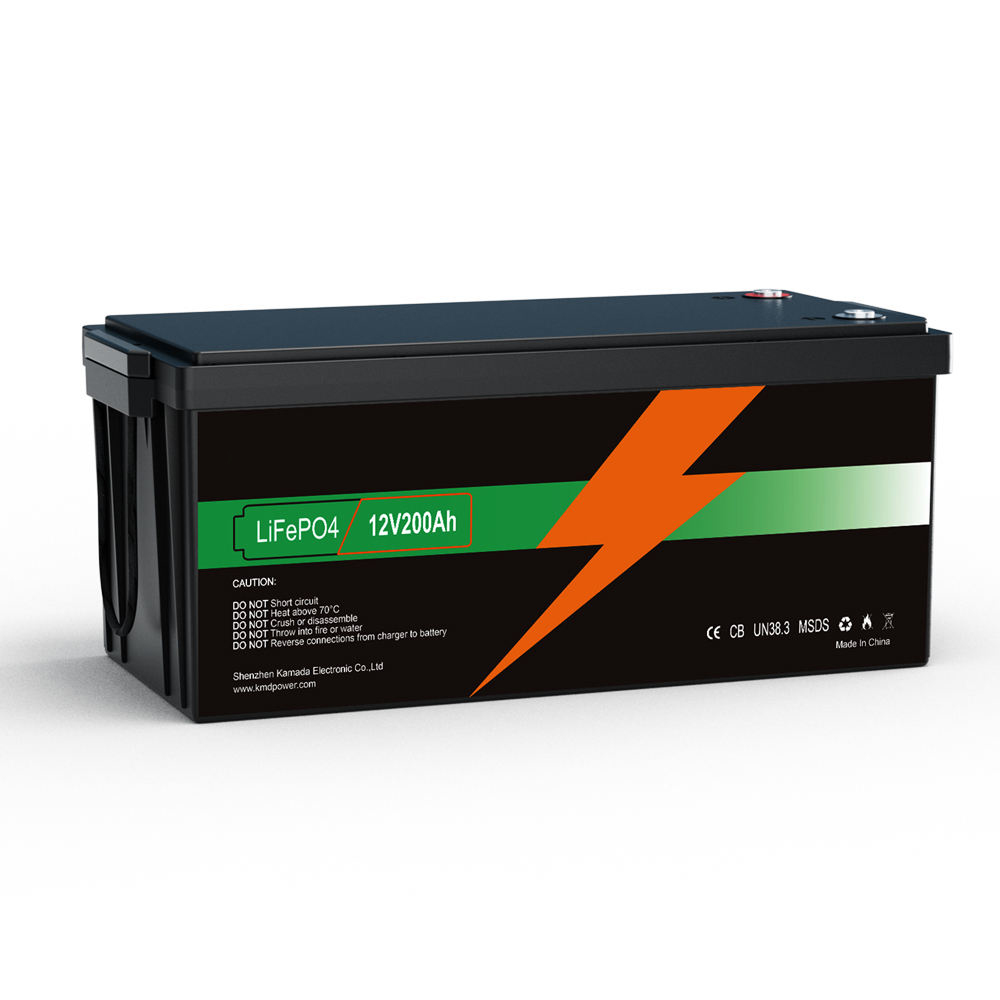

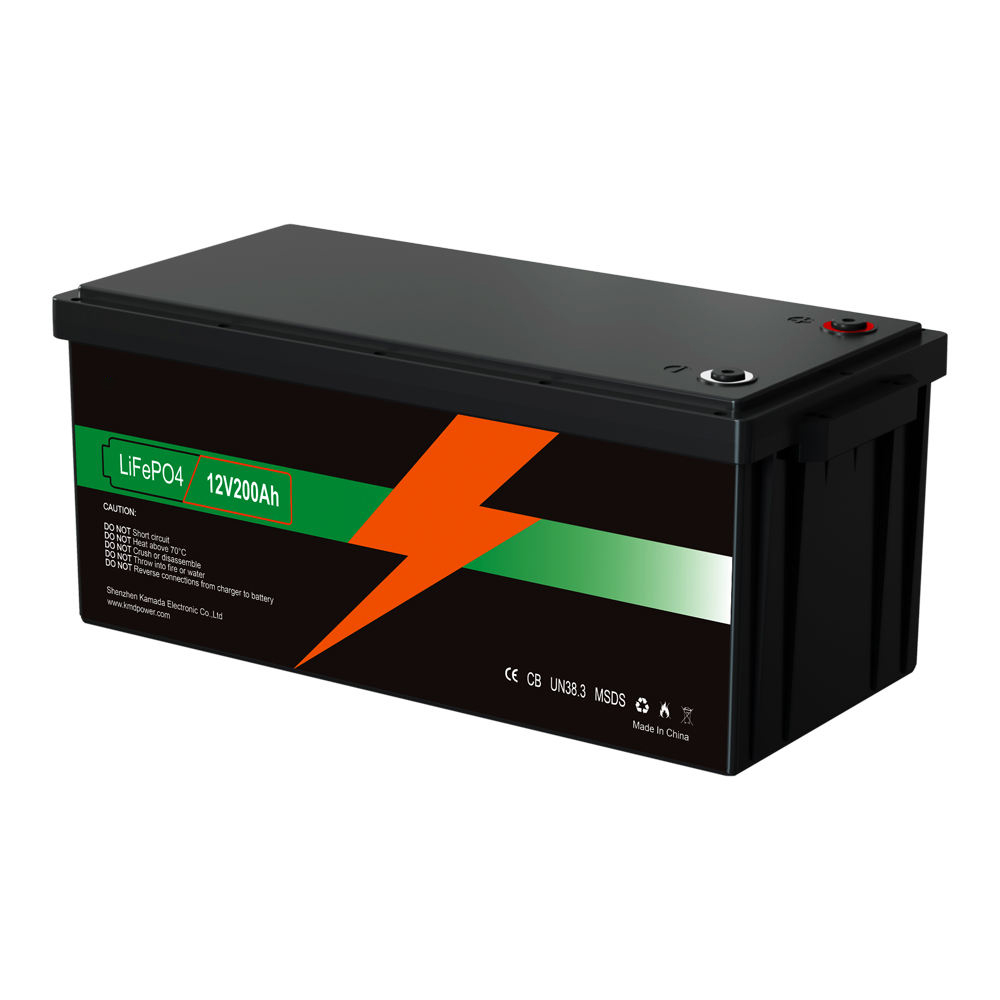

Product Description
| Parameter | Value |
|---|---|
| MODEL | 12200 |
| Cell Type - Chemistry | Prismatic- LiFePO4 |
| Rated Capacity | 200Ah |
| Rated Voltage | 12.8V |
| Energy | 2.56KWh |
| Resistance | 30mΩ |
| Self Discharge | <3% per month |
| BMS | Bluetooth / Display optional |
| Dimensions (L x W x H) | L1300*W500*H380mm (Can make it smaller if you want) |
| Weight | 19Kg |
| Enclosure Protection | ABS |
| Discharge Cut-off Voltage | 10V |
| Max Continuous Discharging Current | 200A |
| Peak Discharge Current | 250A for 10 seconds |
| Recommended Discharge Current | 200A |
| Charging Limited Voltage | 14.8V |
| Max Charging Current | 100A |
| Recommended Charge Current | 50A |
| Charge Temperature Range | 0~50℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
1/3 the weight & 1/2 the size of lead-acid for equivalent capacity. Increases payload, extends range, and saves critical onboard space.
5-10x longer cycle life (2000-5000+ cycles). Higher upfront cost is offset by minimal maintenance and replacement needs, offering superior lifetime value.
Charges 2-3x faster than lead-acid. Supports high-rate discharges for powerful thrust and stable voltage, ensuring strong performance for propulsion and heavy equipment.
No watering, equalizing, or acid leaks. Integrated Smart BMS provides real-time monitoring and full protection (over-charge/discharge, temperature, short circuit).
Enables zero-emission electric propulsion and generator-free silent anchoring. Ideal for sensitive environments and enhances onboard comfort.
Pure Electric Propulsion: Ferries, tour boats, workboats, yachts.
Hybrid Propulsion Systems: Tugboats, fishing vessels, research ships.
Hotel & Auxiliary Loads: Powers AC, galley, and electronics without running generators.
Thruster & DP Power: Reliable, high-quality power for dynamic positioning and deck machinery.
Backup & Safety Systems: Lightweight, reliable power for emergency systems.
If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.
Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
