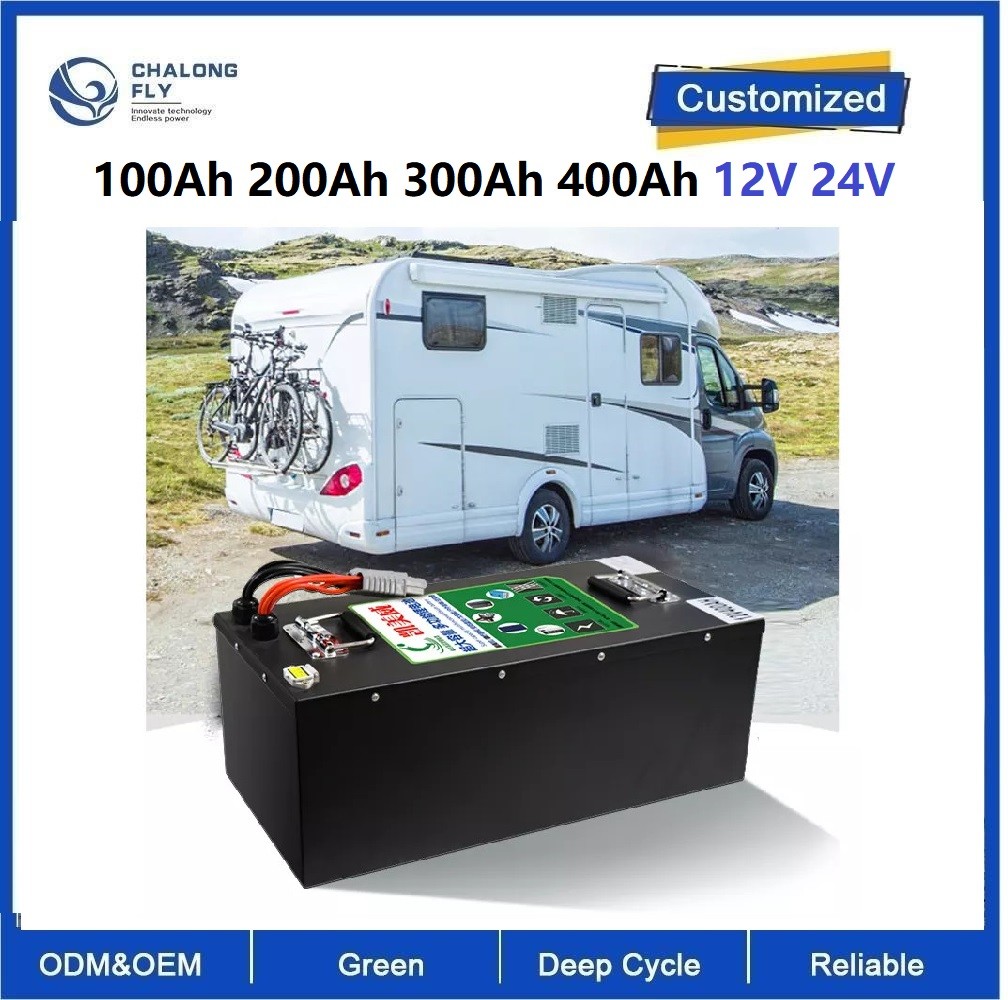

Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE,MSDS Model Number: CLTF-0262

Detail Information

Nominal Capacity: 200Ah Nominal Voltage: 12.8V
Cycle Life: 4000 Times Size: 530*235*200mm Customized
Weight: 22kg Charging Current: 50A
BMS Function: Overcharge, Overdischarge, Overcurrent, Short Circuit, Etc Case Material: Metal Case Or Stainless Steel Case(Customized)
Warranty: 3 Years Optional: Bluetooth
Application: RV,air Conditioners,water Heaters,digital Equipment Etc
High Light:

Lithium Iron Phosphate Rechargeable Battery

,

Lithium Iron Phosphate Battery 100Ah

Product Description

Deep Cycle 100Ah 200Ah 300Ah 400Ah 12V 24V Lithium Iron Phosphate Rechargeable Battery





Specification



Nominal voltage 12.8v 25.6v 51.2v
Nominal capacity 200ah 200ah 200ah
Battery type grade A 3.2V LifePO4 Prismatic Lithium iron phosphate battery cell 4S grade A 3.2V LifePO4 Prismatic Lithium iron phosphate battery cell 8S grade A 3.2V LifePO4 Prismatic Lithium iron phosphate battery cell 16S
Charge Voltage 14.6V±0.2V 29.2V±0.2V 58.4V±0.2V
Discharge Cut-off Voltage 10V 20V 40V
Standard charging current (A) 50A
BMS function Overcharge, overdischarge, overcurrent, short circuit, etc.
Nominal internal resistance Single cell ≤2mΩ
Continuous discharge current 250A
Peak current 240A (<3s)
charging temperature 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity
discharge temperature -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity
Life cycle It is 2000 times at 85% dose, 5000 times at 65% dose, and 8000 times at 40% dose.
Net weight 22kg 43kg 90kg
Battery display The conventional ABS housing has a display screen. Others can be customized
Battery size ABS:530*235*200mm
(customizable)
Metalcase:560*235*200mm(customizable) Metalcase:560*235*200mm
(customizable)
Case material metal case or stainless steel case(customizable)
Terminal Type Anderson interface / Positive and negative screw terminals (customizable)
Warranty 5 years
Lifecycle Deep cycle life 4000 times, life span is more than 7 years





Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 0

Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 1







Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 2



Advantages of LifePO4 compared with lead-acid batteries:



-Various kinds of green, non-toxic and non-polluting raw materials.

-Long lifespan (2000-8500 cycles, lead-acid is ~400).

-Lightweight-save 60% weight

-Charging speed increased by 6 times

-Reduce the total life cycle cost.

-No heavy metals or acids; environmentally friendly

-Maintenance-free.

-Internal BMS; higher reliability.
-No memory effect.

-Less affected by high temperature.

-Can be installed in any direction



Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 3Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 4









Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 5

Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 6

Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 7

Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 8



Lithium Iron Phosphate Rechargeable Battery 100Ah 200Ah 300Ah 400Ah 12V 24V 9







FAQs:


Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!


Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed


Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.


Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.


Contact us for more informations!
