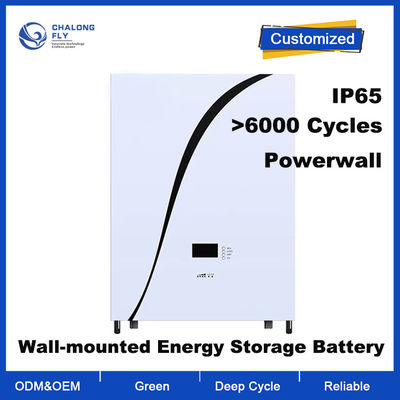

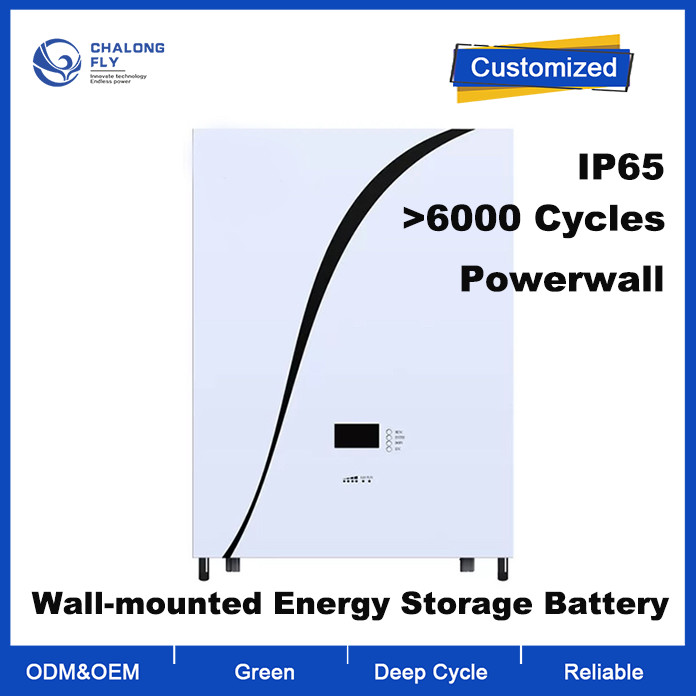

Wall Mounted 48V 200Ah LiFePO4 Lithium Battery with 6000 Cycle Life for Solar Energy Storage
Wall Mounted 48V 200Ah LiFePO4 Lithium Battery with 6000 Cycle Life for Solar Energy Storage Wall Mounted 48V 200Ah LiFePO4 Lithium Battery with 6000 Cycle Life for Solar Energy Storage
Contact Now

Wall Mounted 48V 200Ah LiFePO4 Lithium Battery with 6000 Cycle Life for Solar Energy Storage

Minimum Order Quantity : 2 Unit Price : Negotiatable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunnan, China Brand Name: Chalong Fly
Certification: CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc Model Number: CLFLE144

Detail Information
Nominal Voltage: 48V Nominal Capacity: 100Ah/150Ah/200Ah
Customizable: YES Controller Type: MPPT
BMS: Built-in BMS Protection Solar Panel Type: Monocrystalline Silicon
Certificate: CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, Etc Application: House, Villa, Home Buildings, Home, Residential Solar Energy Stor
Highlight:

CLTF Curve Wall Mounted Solar Battery

,

48V 100AH Wall Mounted Solar Battery

,

5KWH LiFePO4 Solar Battery

Product Description

Custom LiFePO4 Wall-Mounted Solar Energy Storage Batteries
OEM & ODM LiFePO4 lithium battery wall-mounted solar household energy storage solutions available in 5kWh and 10kWh configurations. If you don't see products matching your requirements, please contact us as we may not have all options listed on our website.
Chalong Fly provides ODM & OEM services with quality assurance for both products and services. We distribute battery packs and cells from reputable brands and manufacture custom battery packs and power supplies to customer specifications.
Smart Battery Features
CLF Curve wall-mounted LiFePO4 battery for energy storage provides remote control and monitoring capabilities. The integrated GPS function offers positional tracking to prevent theft, while GPRS functionality enables convenient monitoring of battery performance including temperature, voltage, and other critical parameters.
Available in Silver Grey and Sky Blue Powerwall lithium-ion battery colors.
Technical Specifications
Basic Specifications
Model 4.8Kwh 7.2Kwh 9.6Kwh
Nominal Voltage [V] 48V
Capacity [Ah] 100Ah 150Ah 200Ah
Mechanical Specifications
Width [mm] 485
Height [mm] 650
Depth [mm] 180
Weight [Kg] 55 73 92
IP Level IP20
Electrical Specifications
Voltage Window [V] 40.5~54
Charge Voltage [V] 54.0-54.8
Charge-discharge Current[A] 100
Charge Mode CC-CV
Output Power [W] 5KW
Re-charge Time [h] 100A*1 Hour (Standard Charge)
Power Output by Duration
Duration 4.8Kwh 7.2Kwh 9.6Kwh
2h*[W] 2400 3600 4800
4h*[W] 1200 1800 2400
8h*[W] 600 900 1200
Working Conditions
Life @25°C >10 Years
Cycle Life [80%DOD,@20°C] 6000 Cycles @25℃ 0.2C 80%DOD
Working Temperature -20°C~+60°C
Regular Transportation UN38.3
Temperature & Period for Storage 6 Months @+25°C
3 Months @+35°C
1 Month @+45°C
Wall Mounted 48V 200Ah LiFePO4 Lithium Battery with 6000 Cycle Life for Solar Energy Storage 0
Premium Quality & Long Service Life
High-quality lithium solar battery with extended service time. Featuring quality cells, CLTF lithium solar battery is a deep cycle battery with more than 6000 life cycles at 80% depth of discharge.
Main Features
  • Cell voltage monitoring
  • Charge/discharge current monitoring
  • Hardware protection
  • Discharge control
  • Charge control
  • Balance functionality
  • Temperature monitoring
  • Work status indication (LCD & LED lamp)
  • PACK voltage monitoring
  • Failure alarm system
  • Multiple batteries can be connected in parallel (up to 20 sets)
Wall Mounted 48V 200Ah LiFePO4 Lithium Battery with 6000 Cycle Life for Solar Energy Storage 1
Frequently Asked Questions
Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tours are available.
Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER services are available. Our professional team is ready to offer customized solutions.
Q3. Can I place a sample order first?
A: Yes, sample orders are welcome.
Q4. How will my order be shipped?
A: Chalong Fly offers various shipping methods including DHL, UPS, FedEx, TNT, airline, and sea shipping.
Q5: What kind of certificates do you have?
A: We provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3, UL, and other certifications.
Q6. Can we sign an NDA for long-term cooperation?
A: Yes, we respect client requirements and can sign NDAs.
Q7: Is there any warranty or after-sales service?
A: We perform quality checks on each battery before shipment. Warranty periods range from 1 to 20 years depending on the model.
Q8. Why choose Chalong Fly?
A: Chalong Fly R&D center employs over 60 R&D engineers, including 12 with more than 10 years of power development experience. We have deep expertise in power electronics technology and comprehensive understanding of application industry needs.
Contact us for more information about our custom LiFePO4 energy storage solutions!
