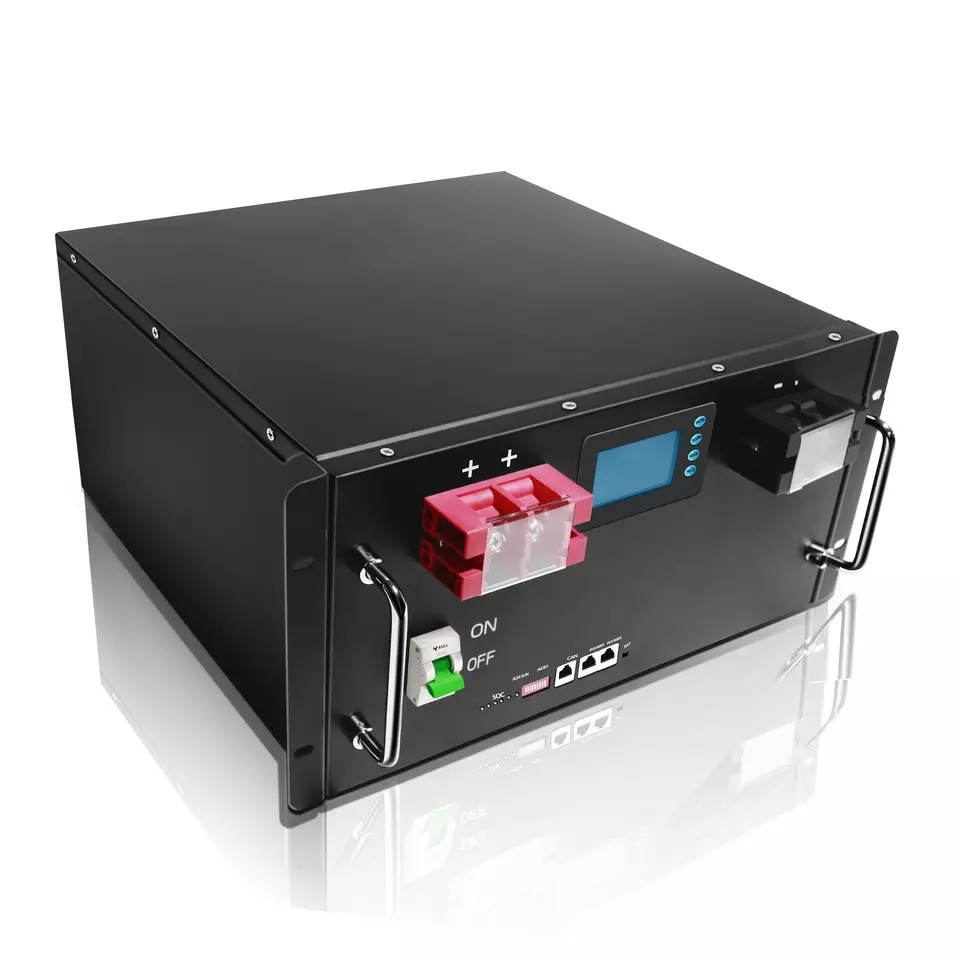

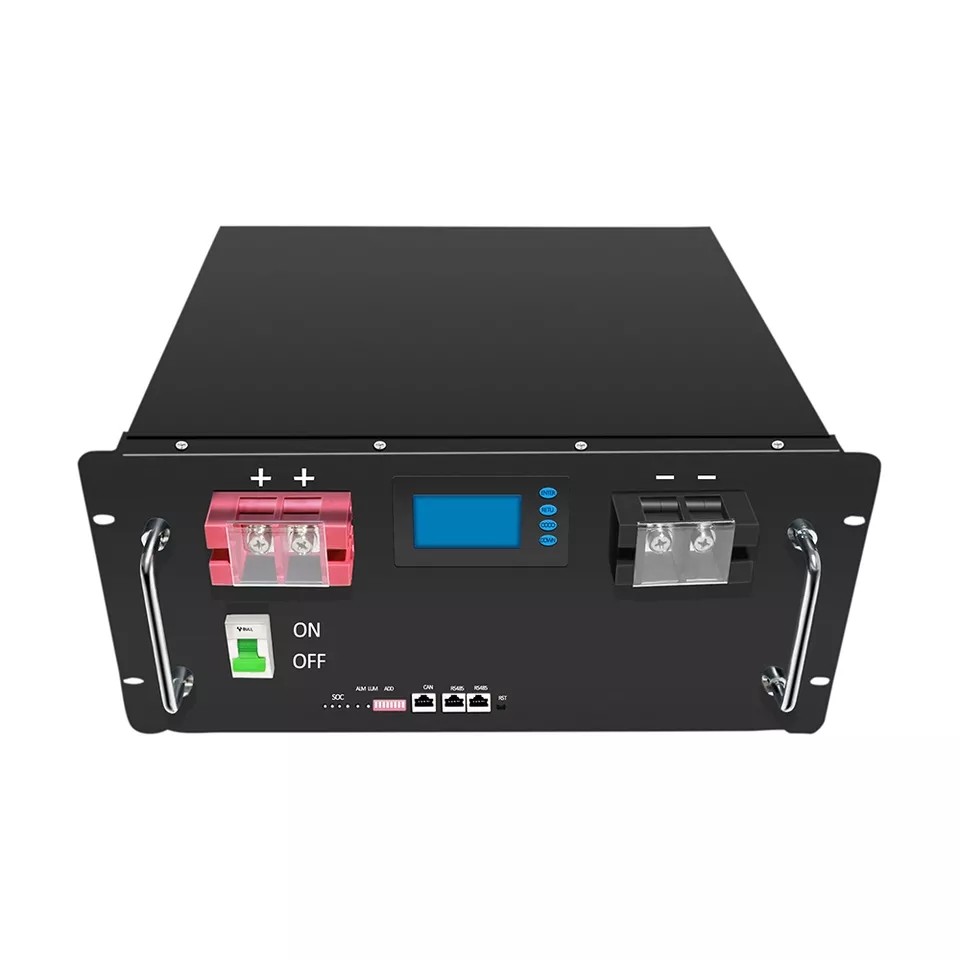

lifepo4 Pack 51.2V 48V 100AH 200AH Lithium Ion Golf Cart Battery Pack With BMS Rechargeable Battery

Minimum Order Quantity : 50 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE/ROHS/UL Model Number: CLFC-0072

Detail Information

Battery Size: 48V Lifepo4 Product Name: LifePO4 Lithium Battery Pack
Dimension: Customized Voltage: 48V/51.2V
Capacity: 50/100/200ah Application: E-car, Golf Troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist Car, Caravan, Wheel Chair, E-sweeper, Floor Cleaner,
Certification: CE/ MSDS/ UN38.3 Cycle Life: 6000 Times
High Light:

72V 20AH Motorcycle Lithium Battery

,

72V 40AH Motorcycle Lithium Battery

,

72V 60AH 18650 Rechargeable Battery

Product Description

Model
BR48100
BW-48230
Nominal Voltage
51.2V
51.2V
Nominal Capacity
100Ah
230Ah
Energy
5120Wh
11776Wh
Self Discharge
<3%/month
<3%/month
Series or Parallel Connection
16S1P
16S1P
Recommended Charge Current
10A-60A
50A- 100A
Maximum Charge Current
100A
200A
Charge Current (-20 to - 10 ºC)
≤0.05C
≤0.05C
Recommended Charge Voltage
56V-57.6V
56V-57.6V
BMS Charge Voltage Cut-Off
57.6V (3.75±0.025vpc)
57.6V (3.75±0.025vpc)
Reconnect Voltage
54.6V (3.34 ±0.05vpc)
54.6V (3.34 ±0.05vpc)
Dimensions (L x W x H)
440*435*222mm (17.3x17.1x8.74”)
480*248*618mm
Weight
54.5kg (120.1 lbs)
54.5kg (120.1 lbs)
Communication Interface
RS485 (Optional)
RS485 (Optional)
Case Material
Metal
Metal
Enclosure Protection
IP54
IP54
Maximum Continuous Discharge Current
100A
200A
BMS Discharge Current Cut-Off
105A
230A
Reconnect Voltage
45V
45V
Discharge Temperature
-20 to 60ºC (-4 to 140 ºF)
-20 to 60ºC (-4 to 140 ºF)
Charge Temperature
0 to 45ºC (32 to 113 ºF)
0 to 45ºC (32 to 113 ºF)
Battery Application

Electric Propelling

♦ Engine Starting Battery
♦ E-car, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-sweeper, Floor cleaner,
♦ Intellectual Robots
♦ Power tools: electric drills, toys
♦ 60V 2000W electric citycoco/motorcycle
lifepo4 Pack 51.2V 48V 100AH 200AH Lithium Ion Golf Cart Battery Pack With BMS Rechargeable Battery 0
Product Description

Features:

60V battery pack – Li(NiCoMn)O2 18650
High lifespan: About 500-800 cycles @ 100% DOD
Deep discharge allowed up to 100%
BMS Protection ( no thermal runaway, no fire or explosion risks)
Excellent temperature robustness(-20 °C up to +60°C)
Constant power during discharge( very low internal resistance)
Very low Peukert's losses( energy efficiency>96%)
Very low self-discharge(<3% per month)
No memory effect
About 50% lighter and 40% smaller than an equivalent Lead-AGM battery with same usable ener
product detailed information



lifepo4 Pack 51.2V 48V 100AH 200AH Lithium Ion Golf Cart Battery Pack With BMS Rechargeable Battery 1

lifepo4 Pack 51.2V 48V 100AH 200AH Lithium Ion Golf Cart Battery Pack With BMS Rechargeable Battery 2



lifepo4 Pack 51.2V 48V 100AH 200AH Lithium Ion Golf Cart Battery Pack With BMS Rechargeable Battery 3



lifepo4 Pack 51.2V 48V 100AH 200AH Lithium Ion Golf Cart Battery Pack With BMS Rechargeable Battery 4
Our Service

Operation Notice.

♦ Do not heat the battery directly or thrown into a fire.
♦ Do not assemble or store in high temperature (over 60 °C) environment
♦ Do not short-circuit the battery directly.
♦ Do not use acid corrosion of the battery casing.
♦ Do not throw it into water or put in wet environment.
♦ Do not knock, impact the battery.
♦ Do not anatomy cell or change the internal structure of the battery.
lifepo4 Pack 51.2V 48V 100AH 200AH Lithium Ion Golf Cart Battery Pack With BMS Rechargeable Battery 5
Packing & Delivery
lifepo4 Pack 51.2V 48V 100AH 200AH Lithium Ion Golf Cart Battery Pack With BMS Rechargeable Battery 6
