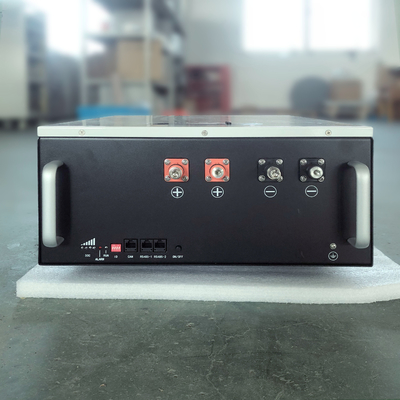

Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE Model Number: CLF-0041

Detail Information

Nominal Capacity: 100Ah Nominal Voltage: 48V
Energy: 5000WH Dimensions(L×W×H): 442*410*221mm
Certificate: CE,MSDS,UN 38.3 Application: Home, Solar System, Industrial, Villa, Telecom
OEM/ODM: Acceptable Color: White, Can Custom Logo
Cell & Method: 3.2V25Ah 4S4P Weight: Approx: 63kg
Shell Material: Iron
High Light:

5000 Cycles Lithium Ion Battery Pack

,

5Kwh Lithium Ion Battery Pack

,

48V 100AH Solar Lithium Ion Battery

Product Description

Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH

Characteristics
Model
48V 100Ah (Customizable LCD)
Energy
5000WH
Months Self Discharge
<3%
Standard Charge
Charge Voltage
53.2-54V
Charge Mode
0.2C to 54V, then 54V,charge current to 0.02C (CC/CV)
Charger Current
20A
Max. Charge Current
50A
Charge Cut-off Voltage
57.6±0.2V
Standard Discharge
Max continuous discharge current
50A
Discharge Cut-off Voltage
37.5V
Cycle life
2000 Cycles(100%DOD)
5000 Cycles(80%DOD)
Environmental
Charge Temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Water Dust Resistance
Customizable
Mechanical
Cell & Method
3.2V25Ah 4S4P
Shell material
Iron
Dimensions (in./mm.)
442*410*221mm
Weight (lbs./kg.)
Approx: 63kg



Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH 0



Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH 1

Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH 2





Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH 3

Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH 4



Product Packaging
To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:

1) Inner box - Carton - Pallet- Container

2) Packaging also can be made by customers requirements


Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH 5



Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH 6
Certifications
Square 5Kwh Solar Lithium Ion Battery Pack Lifepo4 5000 Cycles 48V 100AH 7





FAQs:


Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!


Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed


Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.


Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.


Contact us for more informations!
