48V 51.2V 100Ah 200Ah 5kWh 10kWh LiFePO4 Solar Battery Pack for Residential Energy Storage

Contact Now

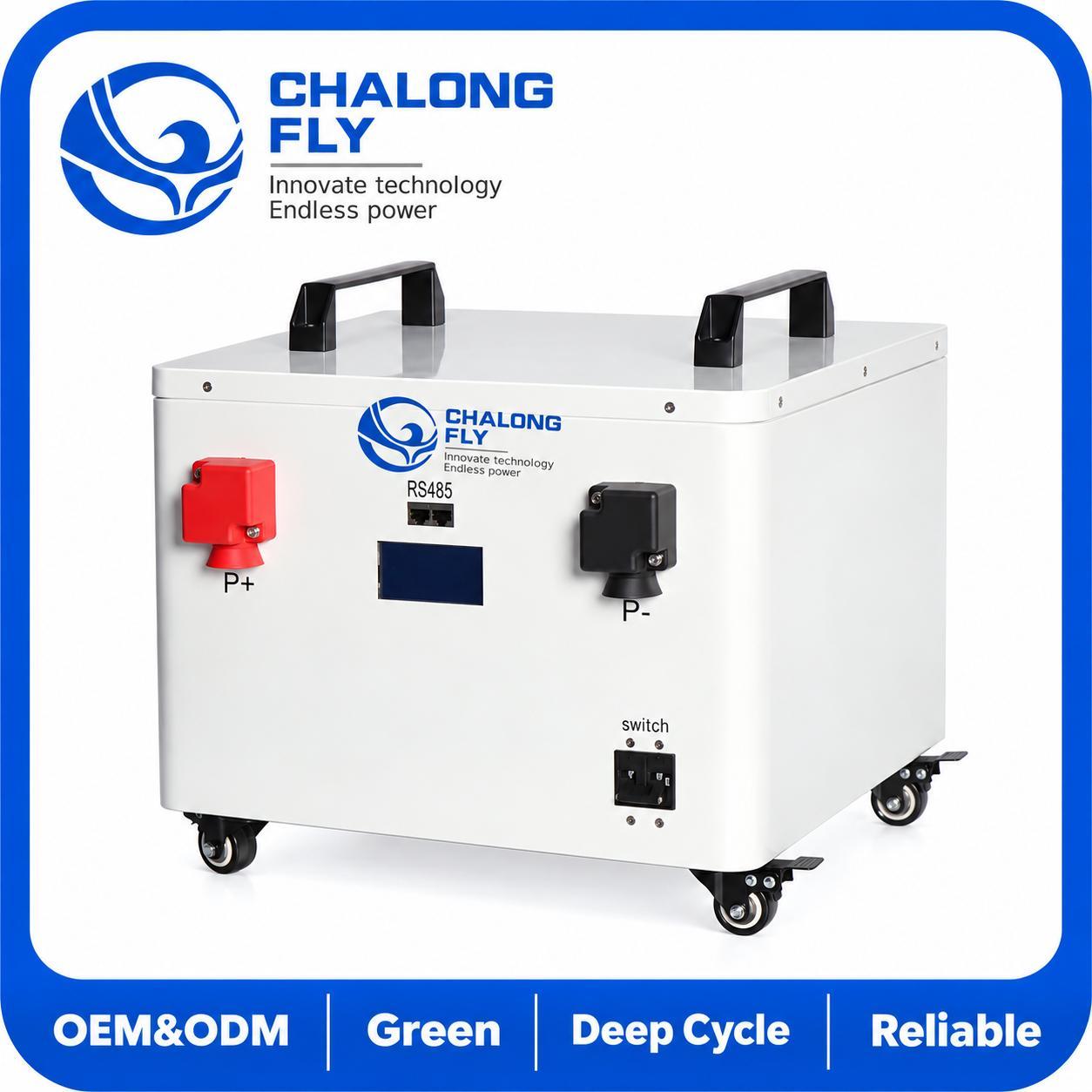

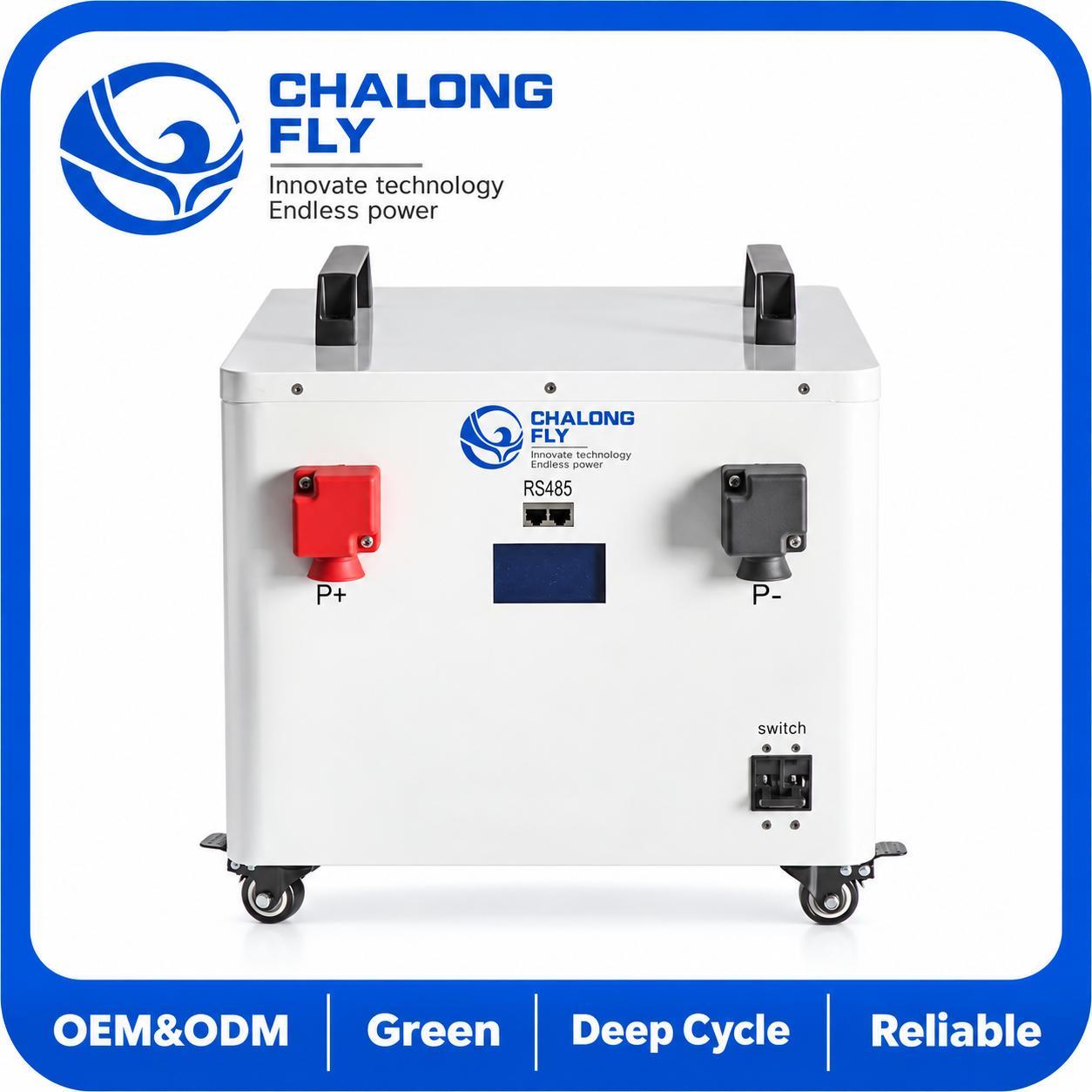

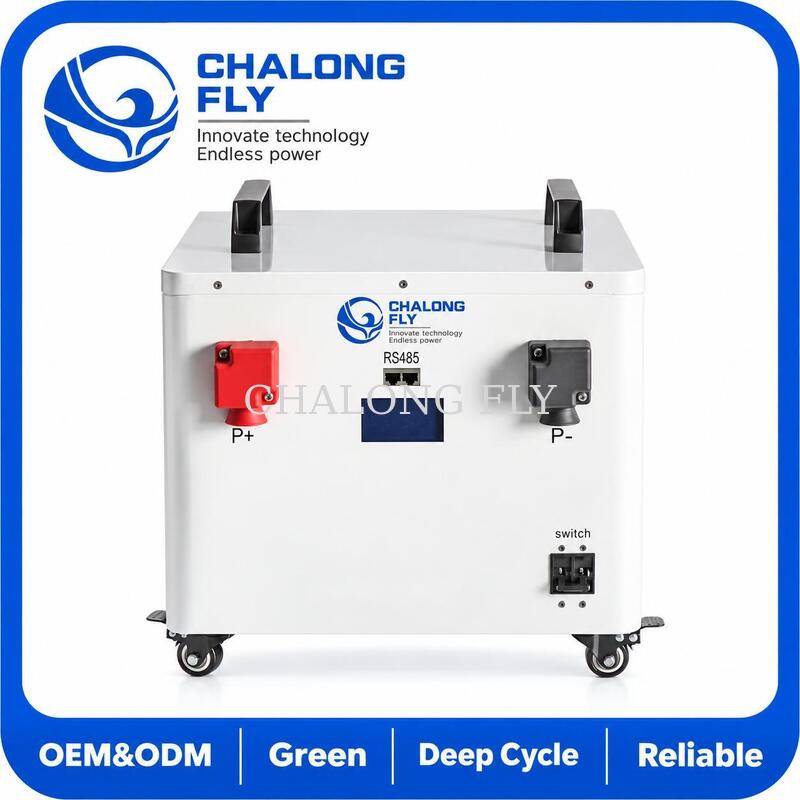

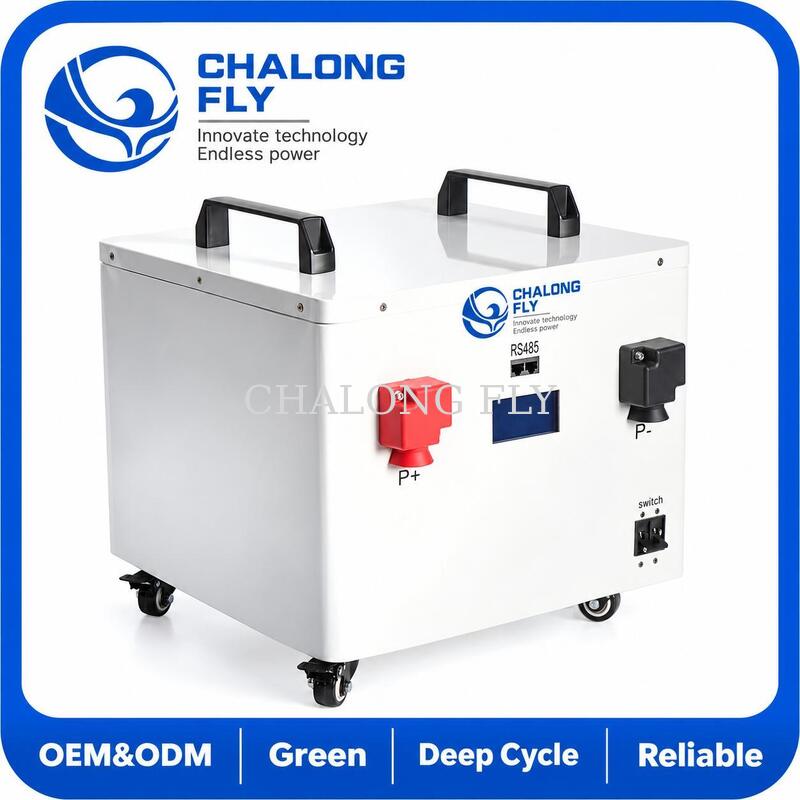

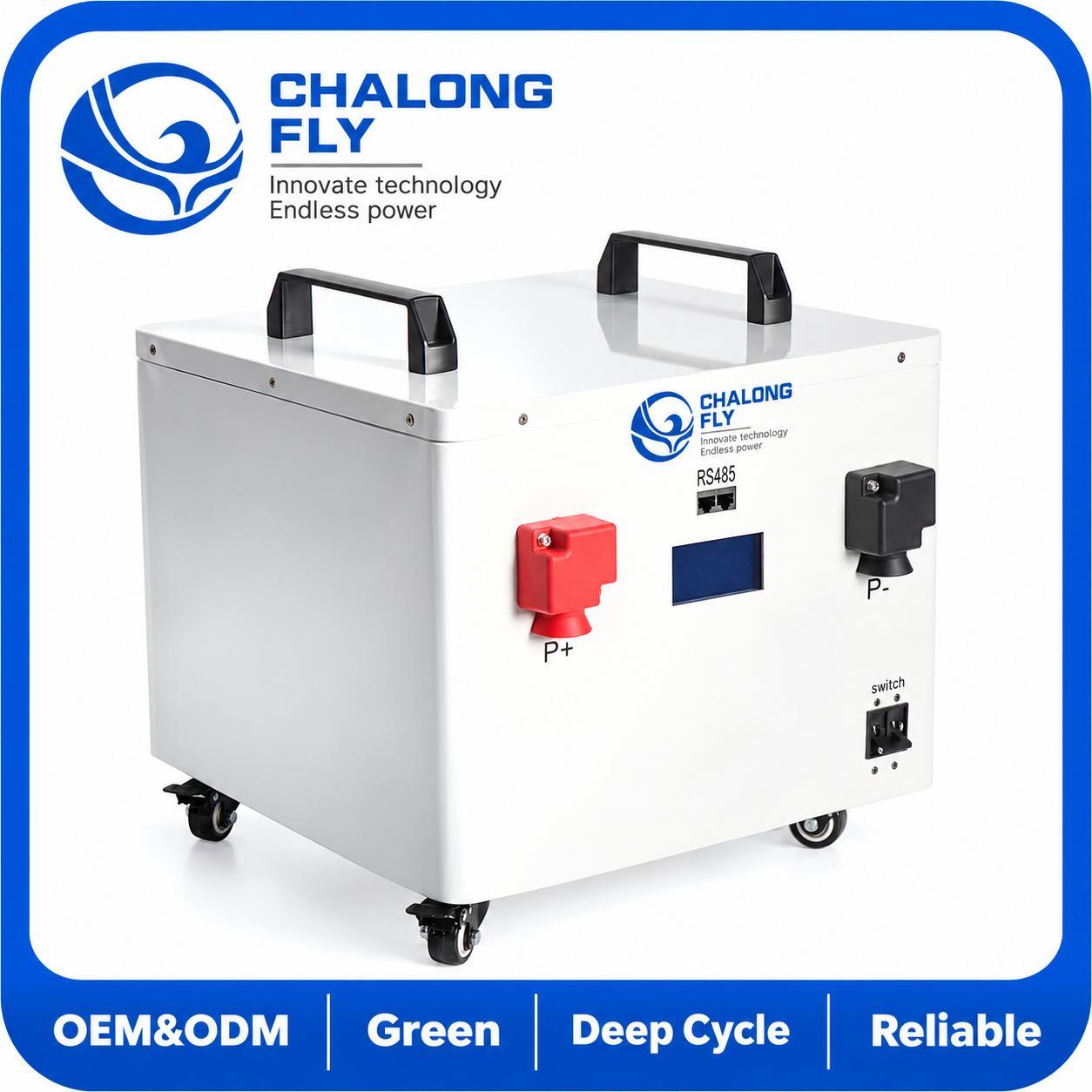

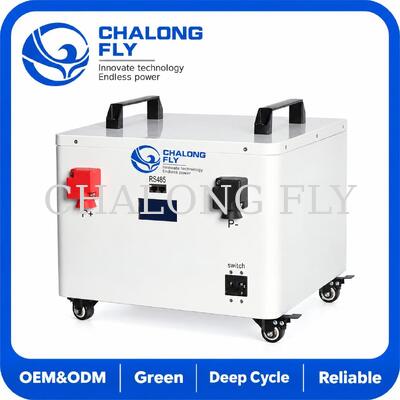

48V 51.2V 100Ah 200Ah 5kWh 10kWh LiFePO4 Solar Battery Pack for Residential Energy Storage

Minimum Order Quantity :	2 Packs	Price :	Negotiable
Packaging Details :	Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.	Delivery Time :	25–35 Working Days
Supply Ability :	2,000 Pieces per Month

Place of Origin:	Hunan,China	Brand Name:	Chalongfly
Certification:	UN38.3, MSDS	Model Number:	CLF-WH-48V-100-200

Detail Information

Highlight:

100Ah 200Ah LiFePO4 Solar Battery

48V 51.2V Residential Energy Storage Battery

5kWh 10kWh Solar Battery Pack

Product Description

Wholesale Residential Solar Batteries

48V / 51.2V 5kWh 10kWh LiFePO4 Solar Battery Packs

100Ah and 200Ah lithium battery solutions for solar installers, energy storage integrators and OEM battery distributors.

Wholesale Lithium Batteries for Solar Energy Storage

Chalongfly supplies configurable LiFePO4 battery pack solutions for residential solar energy storage and low-voltage power applications.

The 100Ah and 200Ah battery configurations cover common 5kWh-class and 10kWh-class storage requirements, offering flexible options for solar installation companies, battery distributors and energy storage system integrators.

Integrated smart BMS protection, inverter communication options and OEM enclosure configurations help match the battery to different installation and system requirements.

100Ah and 200Ah Battery Capacity Options

The nominal energy of each battery configuration depends on both its rated voltage and capacity.

Nominal Voltage	Rated Capacity	Nominal Energy	Energy Class
48V	100Ah	4.80kWh	5kWh
48V	200Ah	9.60kWh	10kWh
51.2V	100Ah	5.12kWh	5kWh
51.2V	200Ah	10.24kWh	10kWh

Voltage options represent different battery configurations. Final availability, charge voltage and BMS settings must be confirmed for the approved model.

Main Technical Specifications

Model Series	CLF-WH-48V-100-200
Battery Type	Residential Solar Energy Storage Battery
Chemistry	LiFePO4
Battery Voltage Class	48V Low-Voltage ESS
Nominal Voltage Options	48V / 51.2V Configuration
Rated Capacity	100Ah / 200Ah
Nominal Energy	4.80–10.24kWh According to Configuration
Battery Management	Integrated Smart BMS
Maximum Charging Current	According to Approved BMS
Continuous Discharge Current	According to Approved BMS
Communication	CAN / RS485 Options
Monitoring	Display / Wireless Options According to BMS
Enclosure	Configured for Installation Requirements
Inverter	External Compatible Inverter Required
OEM / ODM	Available

Smart BMS and Battery Protection

The integrated battery management system provides cell monitoring and electrical protection for repeated charging and discharging in solar energy storage applications.

Voltage and Current Protection

Overcharge, over-discharge, over-current and short-circuit protection are configured according to the approved battery design.

Temperature Monitoring

Battery temperature monitoring and protection support controlled operation within approved environmental limits.

Cell Monitoring and Balancing

Cell voltage monitoring and balancing functions support battery management over repeated operating cycles.

Compatible Solar Inverter Integration

The battery can be configured for compatible low-voltage hybrid and off-grid inverter projects.

CAN and RS485 communication options are available for supported BMS designs. Battery operating voltage, charging limits, discharge current and communication protocols must match the selected inverter.

Inverter Type	Low-Voltage Hybrid / Off-Grid
Communication	CAN / RS485 Options
Charge / Discharge Limits	According to Approved Battery Settings
Protocol Matching	Required for Exact Inverter Model
Inverter Included	No, Unless Specified in Quotation

Bulk Supply for Solar Installers and Distributors

Chalongfly provides OEM and wholesale battery pack solutions for businesses purchasing residential energy storage batteries for installation, distribution and equipment integration.

Projects can be evaluated according to required voltage, energy capacity, battery enclosure, BMS specifications, inverter compatibility and order quantity.

Final production specifications, batch quantities, packaging, labeling and delivery requirements are confirmed before order approval.

Typical Applications

Residential Solar Storage Store photovoltaic electricity for use after solar generation decreases.	Home Backup Power Supply stored battery energy to compatible backup-capable inverter systems.
Off-Grid Solar Systems Battery storage for compatible independent solar power installations.	Solar Equipment Distribution OEM battery packs for solar distributors, installers and energy storage integrators.

OEM and ODM Customization

48V-class battery configuration
100Ah and 200Ah capacity options
Smart BMS current and protection settings
CAN / RS485 communication
Inverter protocol matching
Battery enclosure and installation format
Power terminals and cable interfaces
Monitoring and display options
Custom product labels and logo
Bulk packaging and private-brand documentation

Information Required for Wholesale Quotation

To prepare a suitable battery configuration and commercial quotation, please provide the following project information.

Required nominal battery voltage
Required capacity: 100Ah or 200Ah
Inverter brand and exact model
Maximum charging and discharging current
Installation and enclosure preferences
Communication protocol requirements
Destination country and applicable certifications
Estimated purchase quantity
OEM branding and packaging requirements

Frequently Asked Questions

What battery capacity options are available?

The featured battery series includes 100Ah and 200Ah configurations for 5kWh-class and 10kWh-class residential energy storage applications.

What is the difference between 48V and 51.2V batteries?

The two configurations have different nominal energy values and may require different charging settings. The actual cell architecture and inverter compatibility must be confirmed before ordering.

Does the battery include a BMS?

An integrated smart BMS manages battery monitoring and essential voltage, current and temperature protection functions.

Is a solar inverter included?

No inverter is included in the standard battery-only configuration unless expressly listed in the quotation.

Can the battery communicate with hybrid inverters?

CAN and RS485 communication options are available. Compatibility depends on the exact inverter model, communication protocol and BMS settings.

Can several batteries be connected in parallel?

Parallel operation can be evaluated using compatible batteries, an approved BMS architecture, correctly sized cables and coordinated electrical protection.

Are OEM labels and packaging available?

OEM labels, enclosure options, communication settings and private-brand packaging can be evaluated for wholesale and project orders.

Is the battery suitable for home backup power?

Yes. The battery can supply stored energy through a compatible backup-capable inverter and an approved electrical installation.

What information is needed for a wholesale quotation?

Please provide the required voltage, battery capacity, inverter model, charging and discharging current, enclosure requirements, destination country, order quantity and OEM specifications.

Request a Wholesale Solar Battery Quotation

Contact Chalongfly with your required battery voltage, capacity, inverter model, project quantity and OEM requirements. Our team will help evaluate the appropriate LiFePO4 battery pack, smart BMS, communication interfaces and bulk supply configuration for your residential energy storage business.
