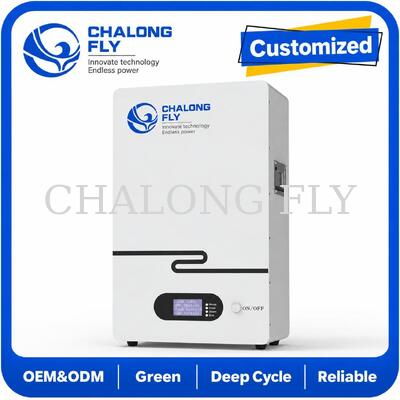

Wall Mounted 51.2V LiFePO4 Residential Energy Storage System Home Solar Battery for Backup Power

Contact Now

Wall Mounted 51.2V LiFePO4 Residential Energy Storage System Home Solar Battery for Backup Power

Minimum Order Quantity :	2 Packs	Price :	Negotiable
Packaging Details :	Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.	Delivery Time :	25–35 Working Days
Supply Ability :	300 Packs per Month

Place of Origin:	Hunan,China	Brand Name:	Chalongfly
Certification:	UN38.3, MSDS	Model Number:	CLF-WALL-51V-ESS

Detail Information

Highlight:

Wall Mounted Home Solar Battery

51.2V Residential Energy Storage System

LiFePO4 Home Solar Battery

Product Description

Wall-Mounted Residential Energy Storage

51.2V Wall Mounted LiFePO4 Home Solar Battery

5kWh to 16kWh residential battery storage solutions for solar self-consumption, hybrid inverters and reliable home backup power.

Wall-Mounted Battery Storage for Solar Homes

The Chalongfly wall-mounted LiFePO4 battery series is developed for residential solar energy storage, nighttime power consumption and compatible home backup systems.

Its wall-mounted enclosure offers an organized battery installation solution for homes, solar equipment rooms and dedicated residential energy storage areas.

The 51.2V nominal battery platform supports different energy capacities, smart battery management and communication with compatible hybrid and off-grid inverters.

Available Energy Capacity Options

Select the appropriate battery capacity based on solar PV generation, daily household electricity use and required backup duration.

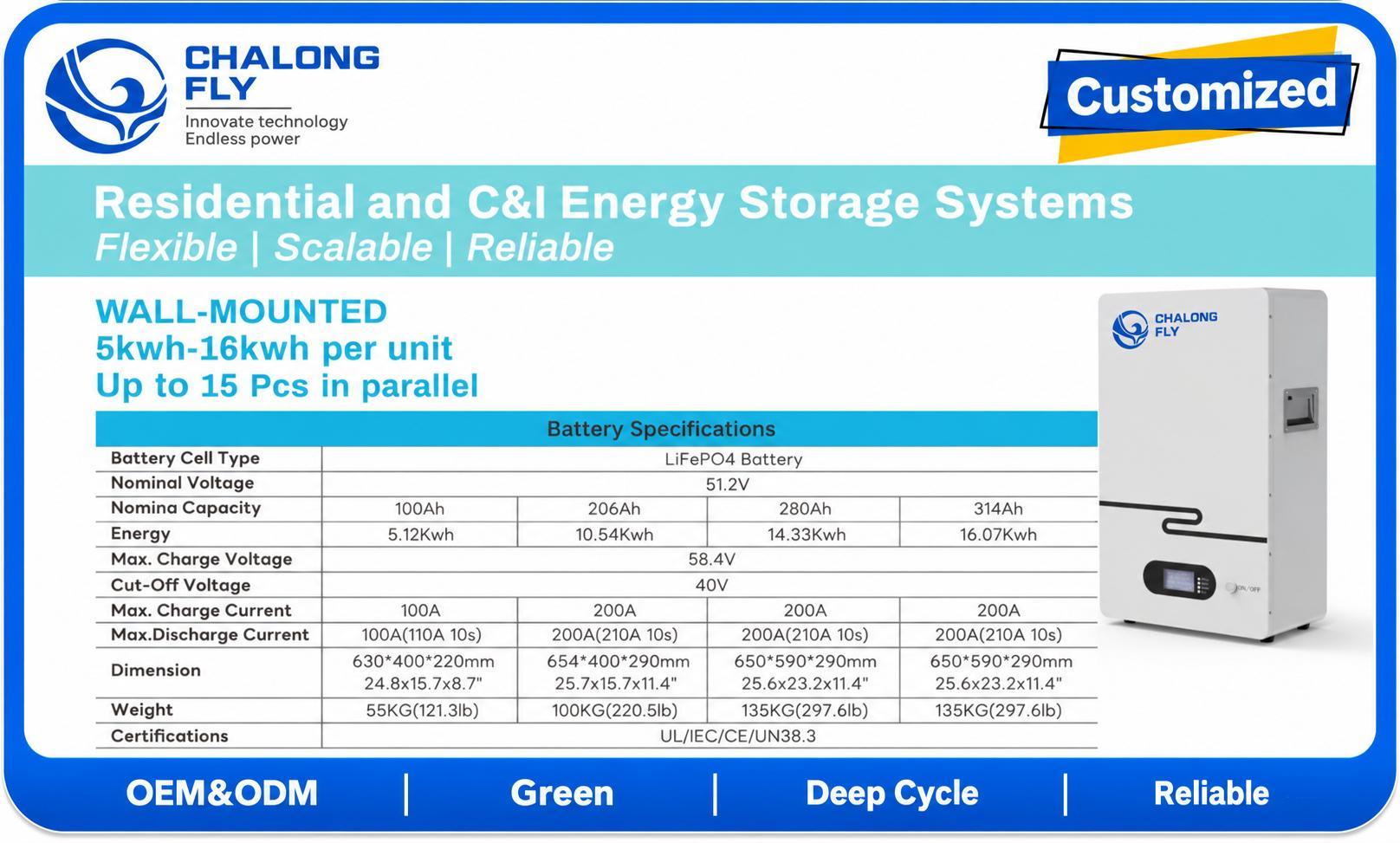

Energy Class	Nominal Voltage	Reference Capacity	Nominal Energy
5kWh	51.2V	100Ah	5.12kWh
10kWh	51.2V	206Ah	Approx. 10.55kWh
14kWh	51.2V	280Ah	Approx. 14.34kWh
16kWh	51.2V	314Ah	Approx. 16.08kWh

Reference configurations from the available wall-mounted battery platform. Final capacity, dimensions and electrical specifications are confirmed for each approved model.

Main Technical Specifications

Model Series	CLF-WALL-51V-ESS
Battery Chemistry	LiFePO4
Nominal Voltage	51.2V
Battery System	48V-Class Low-Voltage ESS
Charge Voltage	58.4V Reference
Discharge Cut-Off	40V Reference
Charge Current	100A / 200A Reference by Model
Discharge Current	100A / 200A Reference by Model
BMS	Integrated Smart BMS
Communication	CAN / RS485 Available
Installation	Wall Mounted
Inverter	External Inverter Required
OEM / ODM	Available

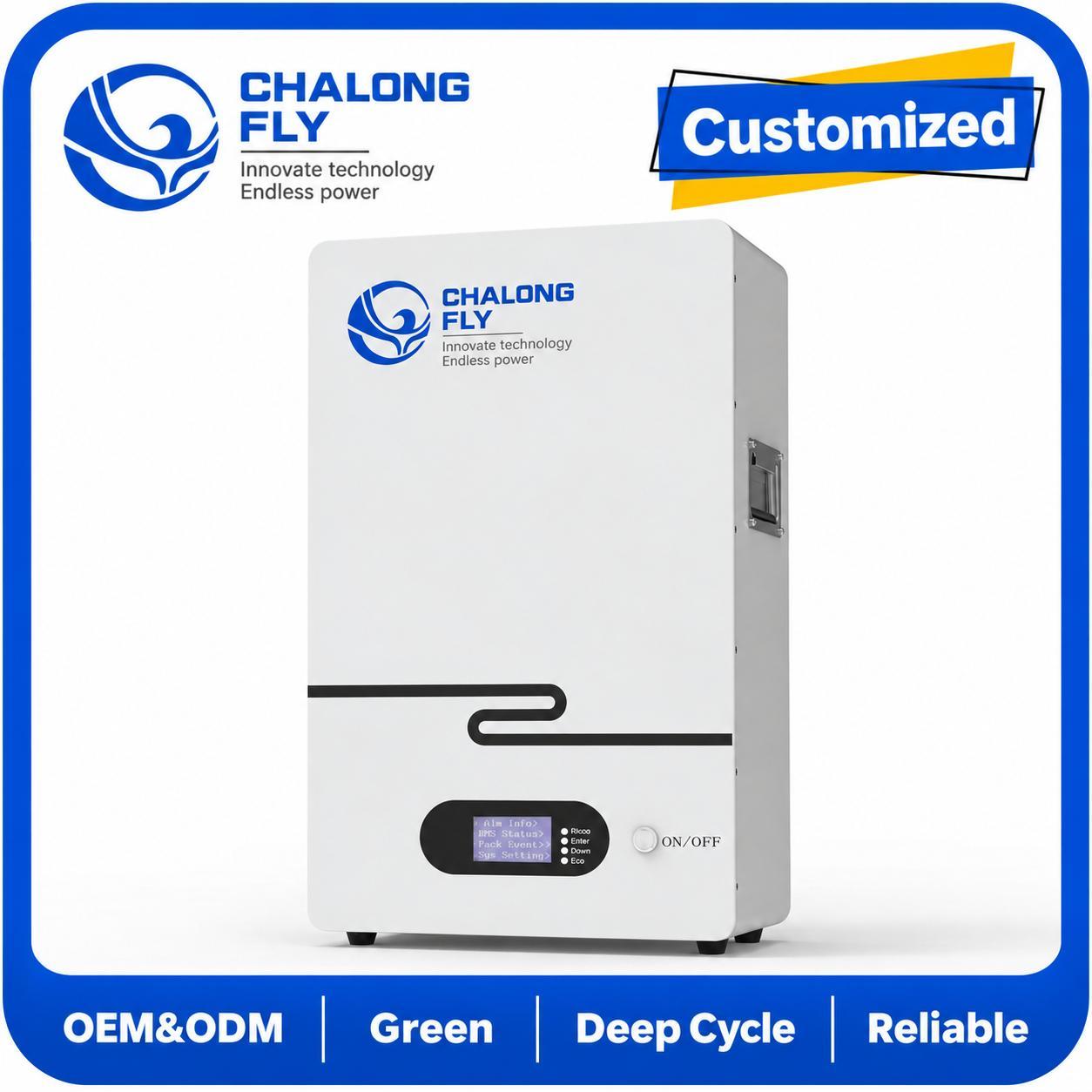

Space-Saving Wall-Mounted Design

A wall-mounted battery provides a dedicated energy storage solution without requiring a separate floor-standing battery cabinet.

The enclosure can be positioned in an approved residential electrical room, utility area or other suitable installation location.

Wall Loading and Installation Safety

Wall structure, load-bearing capacity, approved mounting brackets, anchor specifications, electrical clearance and service access must be checked before installation. High-capacity batteries require appropriate structural assessment.

Intelligent Battery Management System

The smart BMS monitors cell and battery operating conditions, supporting controlled charging, discharging and protection.

Overcharge protection
Over-discharge protection
Over-current protection
Short-circuit protection
Temperature monitoring and protection
Cell voltage monitoring
Cell balancing
Battery state-of-charge management

CAN / RS485 Inverter Communication

Battery communication helps compatible inverter systems manage charging, discharge limits and battery operating information.

CAN Communication	Available According to BMS
RS485 Communication	Available According to BMS
Inverter Protocol	Matched to Exact Inverter Model
Voltage Compatibility	48V-Class System Compatibility Required

The exact inverter model, communication protocol, firmware and battery charge and discharge limits must be confirmed before ordering.

Solar Self-Consumption and Home Backup

Daytime Solar Storage Store surplus photovoltaic electricity when generation exceeds immediate household demand.	Nighttime Power Use stored energy after solar production decreases through a compatible inverter system.
Emergency Home Backup Provide energy to selected household loads through an approved backup-capable inverter.	Off-Grid Solar Power Battery storage for compatible off-grid properties and independently powered homes.

Expandable Home Battery Storage

Compatible wall-mounted battery units can be configured for larger residential storage systems when parallel operation is approved for the selected BMS and inverter.

Maximum parallel quantity, communication, battery matching, protection devices and cable sizing must be verified for the complete system.

OEM and ODM Battery Customization

Battery capacity and energy configuration
Smart BMS current and protection settings
CAN / RS485 communication protocol
Battery enclosure and front panel design
Wall mounting bracket and hardware
Battery monitoring options
Power terminals and communication connectors
Product labels and model identification
Custom logo and color options
Private-brand export packaging

Information Required for Battery Selection

Required battery energy capacity
Inverter brand and exact model
Solar PV system capacity
Expected charge and discharge power
Household average and peak load
Required backup duration
Installation wall and available space
Communication requirements
Estimated order quantity

Frequently Asked Questions

What capacities are available?

Reference wall-mounted battery options cover 5kWh, 10kWh, 14kWh and 16kWh energy classes. Final specifications depend on the selected production model.

Does the battery include an inverter?

The battery-only configuration requires a compatible external hybrid or off-grid inverter. Inverters can be selected separately according to the project.

Can it work with my existing solar inverter?

Compatibility depends on the inverter voltage range, charge and discharge limits, communication protocol and firmware. The exact inverter model must be confirmed.

Can the battery be mounted on any wall?

No. Wall load capacity, mounting hardware, building structure and installation clearances must be assessed for the battery weight and installation requirements.

Can multiple batteries operate in parallel?

Parallel expansion is possible with an approved BMS and inverter configuration. The maximum number of units and system protection design must be confirmed.

Can it be used for home backup power?

Yes. A compatible backup-capable inverter and approved electrical transfer arrangement are required to supply selected loads during a grid outage.

How long will the battery power a house?

Backup time depends on usable battery energy, inverter efficiency and the average power consumption of connected equipment.

What information is required for a quotation?

Please provide the required capacity, inverter model, solar system size, installation conditions, power demand, communication requirements and purchase quantity.

Configure Your Wall-Mounted Home Solar Battery

Contact Chalongfly with your required energy capacity, inverter model, household power demand and installation requirements. Our team will help evaluate the LiFePO4 battery, BMS, inverter communication and wall-mounted enclosure for your residential solar energy storage project.
