51.2V 314Ah 16kWh Floor Standing LiFePO4 Home Solar Battery for Residential Energy Storage System

Contact Now

51.2V 314Ah 16kWh Floor Standing LiFePO4 Home Solar Battery for Residential Energy Storage System

Minimum Order Quantity :	2 Packs	Price :	Negotiable
Packaging Details :	Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.	Delivery Time :	25–35 Working Days
Supply Ability :	2,000 Pieces per Month

Place of Origin:	Hunan,China	Brand Name:	Chalongfly
Certification:	UN38.3, MSDS	Model Number:	CLF-FS-51V314-16K

Detail Information

Highlight:

16kWh Home Solar Battery

51.2V Residential Energy Storage System

314Ah Floor Standing LiFePO4 Battery

Product Description

High-Capacity Floor-Standing Solar Battery

51.2V 314Ah 16kWh Floor Standing LiFePO4 Home Solar Battery

16.08kWh residential battery storage with smart BMS, CAN/RS485 inverter communication and optional Bluetooth monitoring for home solar and backup power.

High-Capacity Floor-Standing Home Energy Storage

The Chalongfly 51.2V 314Ah LiFePO4 floor-standing battery is designed for residential solar storage, household backup power and compatible off-grid energy systems.

With 16.08kWh of nominal battery energy, this high-capacity solution helps homeowners store photovoltaic electricity for evening consumption, backup operation and improved solar self-consumption.

The battery platform supports smart BMS management, inverter communication and optional Bluetooth monitoring to meet different residential ESS project requirements.

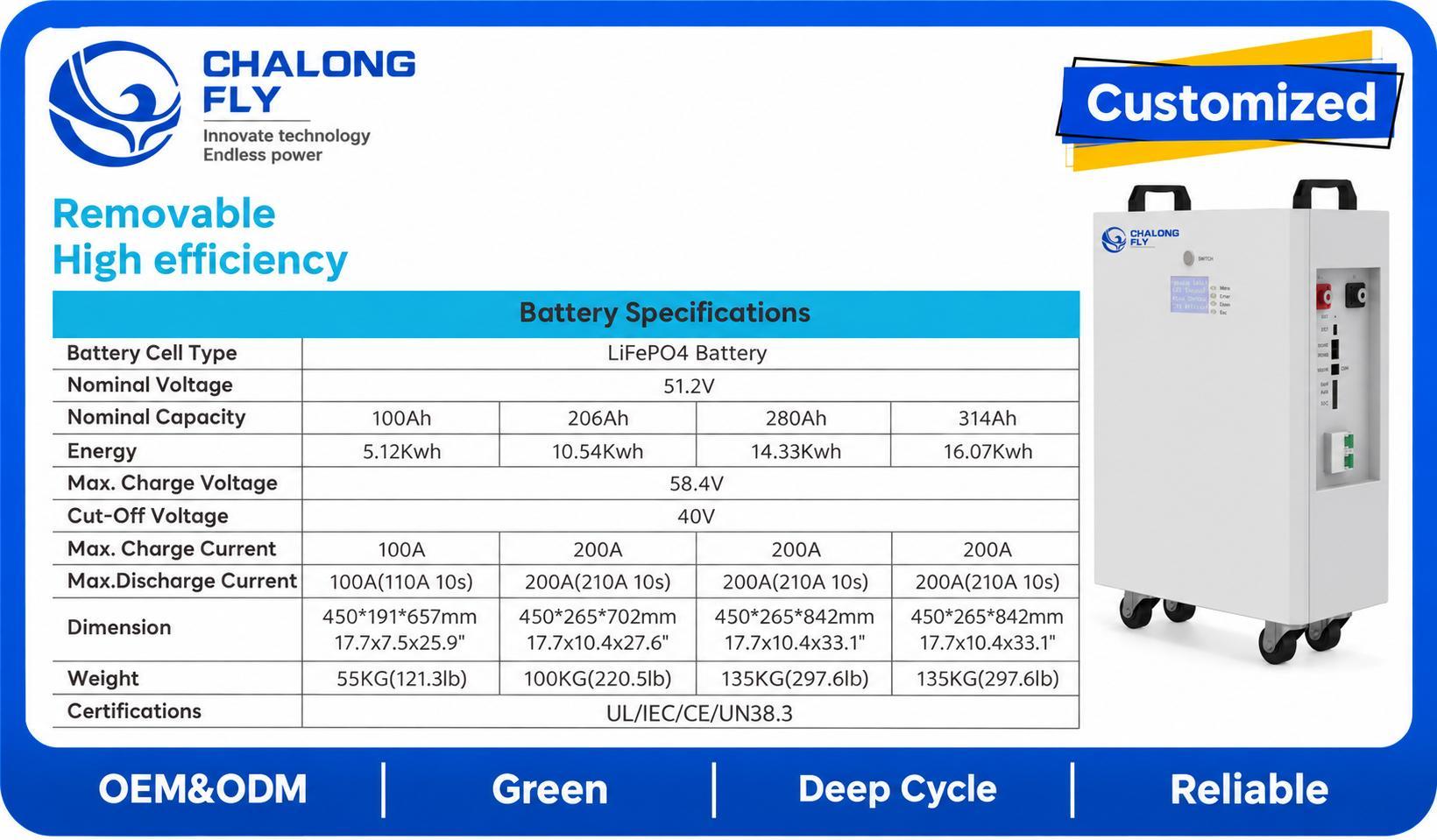

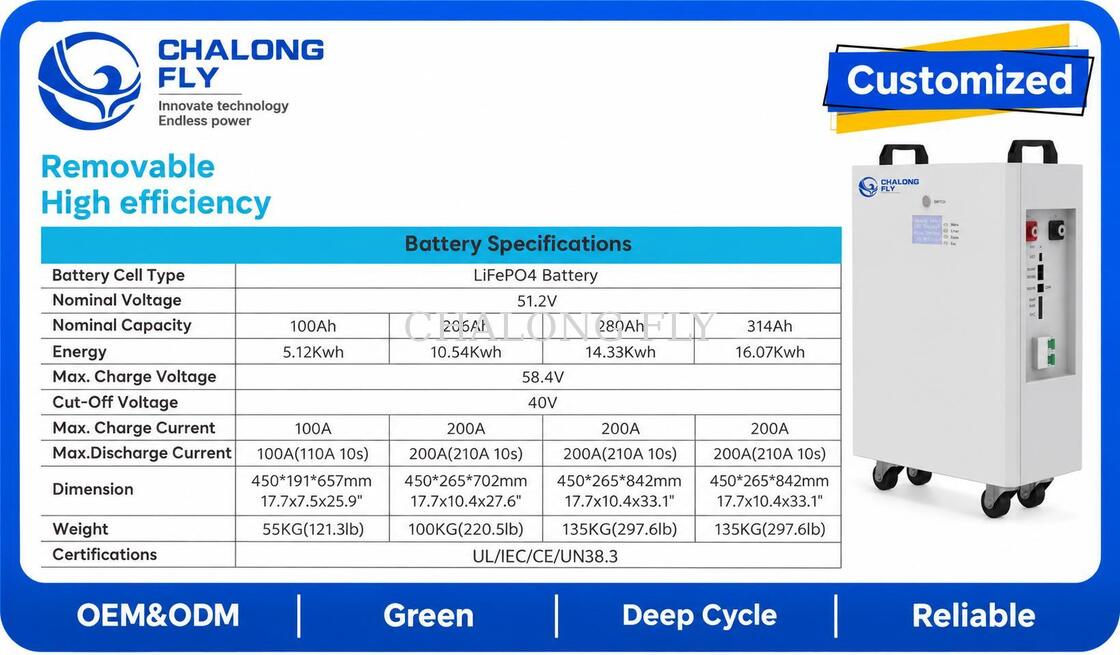

Main Technical Specifications

Model	CLF-FS-51V314-16K
Product Type	Floor Standing Residential ESS Battery
Nominal Voltage	51.2V
Rated Capacity	314Ah
Nominal Energy	16.08kWh
Battery Chemistry	LiFePO4
Maximum Charge Voltage	58.4V Reference
Maximum Charge Current	200A Reference
Maximum Discharge Current	200A Reference
Short-Duration Discharge	210A / 10s Reference
Smart BMS	Integrated
Communication	CAN / RS485 Available
Bluetooth	Optional
Self-Heating	Optional
Installation	Floor Standing
Inverter	External Inverter Required

Reference electrical values are based on a related 314Ah battery platform. Final ratings, enclosure dimensions and weight are confirmed with the approved production specification.

16.08kWh Nominal Battery Energy

51.2V × 314Ah = 16.08kWh High-Capacity LiFePO4 Energy Storage

The battery provides substantial nominal energy for households requiring solar electricity storage, evening consumption and backup energy reserves.

Actual usable capacity and backup duration depend on BMS settings, operating temperature, depth of discharge, inverter efficiency and connected loads.

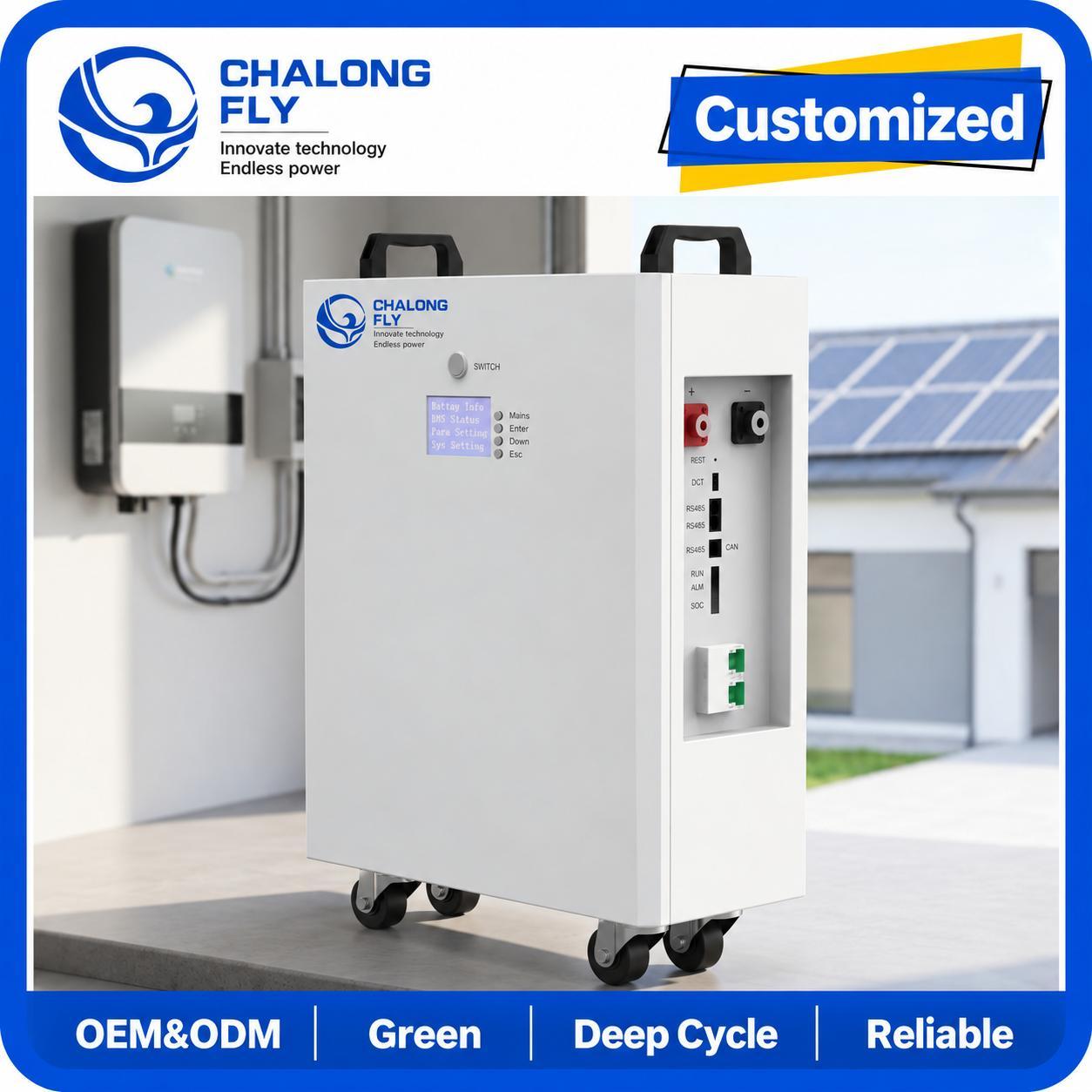

Floor-Standing Battery Design

The floor-standing enclosure is designed for dedicated residential battery storage installations where installation footprint, wiring access and service clearance are important.

High Energy in One Battery Unit

The 314Ah battery architecture offers approximately 16kWh nominal storage capacity within a dedicated residential battery enclosure.

External Inverter Connection

Battery power terminals and communication interfaces can be configured for compatible hybrid and off-grid inverter installations.

Installation Planning

Floor loading, fixing arrangements, ventilation, electrical clearance and maintenance access must be evaluated according to the approved battery enclosure design.

Smart Battery Management System

The integrated smart BMS monitors battery operating conditions and provides electrical protection and cell-management functions during charging and discharging.

Overcharge protection
Over-discharge protection
Over-current protection
Short-circuit protection
Temperature protection
Cell voltage monitoring
Cell balancing
Battery SOC and operating status monitoring

CAN and RS485 Inverter Communication

Battery-to-inverter communication allows compatible systems to exchange battery status and operating limits.

CAN	Available According to BMS
RS485	Available According to BMS
Inverter Protocol	Confirmed According to Inverter Model
Voltage Compatibility	48V-Class Inverter Compatibility Required
Charge / Discharge Limits	According to Approved BMS Settings

Inverter communication and voltage compatibility must be confirmed before installation. CAN or RS485 availability does not guarantee universal inverter support.

Optional Bluetooth Monitoring

Bluetooth monitoring can be configured to help users check battery information through a compatible mobile application.

SOC	Battery State of Charge
Battery Voltage	Operating Voltage Monitoring
Current	Charge and Discharge Current
Temperature	Battery Thermal Status
Bluetooth APP	Optional

Solar Self-Consumption and Backup Power

Residential Solar Storage Store surplus photovoltaic energy for later household electricity consumption.	Home Backup Power Provide stored DC energy to compatible backup-capable inverter systems during power interruptions.
Off-Grid Solar Systems Support independent photovoltaic energy systems with appropriately configured charging and inverter equipment.	High-Capacity Home Storage Provide approximately 16kWh of nominal storage energy for residential applications requiring substantial battery reserve.

High-Current Battery Configuration

The related 314Ah battery platform lists up to 200A maximum charging and discharging current with a short-duration 210A discharge reference.

Actual continuous battery power and inverter output depend on the approved cell configuration, BMS limits, battery operating voltage, connection cables and inverter settings.

Optional Low-Temperature Heating

A self-heating configuration can be supplied for projects requiring battery charging in cold environments. The operating threshold, heater power and control strategy depend on the approved battery configuration.

OEM and ODM Customization

Smart BMS configuration
Charge and discharge current settings
CAN / RS485 communication protocol
Optional Bluetooth battery monitoring
Optional self-heating
Floor-standing enclosure and cabinet finish
Power terminal and communication interface configuration
OEM product labels and model numbers
Private-brand packaging
Matched inverter selection and integration support

Information Required Before Ordering

Inverter brand and exact model
Solar PV system capacity
Average household load
Maximum charging and discharging power
Required backup duration
CAN / RS485 communication requirements
Installation location and available space
Monitoring and heating preferences
Estimated purchase quantity

Frequently Asked Questions

How much energy does this battery store?

The 51.2V 314Ah LiFePO4 configuration provides 16.08kWh of nominal energy.

Does the battery include an inverter?

No. The battery is designed for integration with a compatible external hybrid or off-grid inverter.

Does it support Bluetooth?

Bluetooth battery monitoring is available as an optional function according to the selected smart BMS.

What inverter can be connected?

Inverter compatibility depends on operating voltage, charging and discharge limits, CAN or RS485 protocol and firmware. The exact inverter model must be verified.

Can the battery be connected in parallel?

Parallel expansion can be supported when the battery BMS, inverter and protection architecture are approved for multi-battery operation.

Can it be used for home backup power?

Yes. With a compatible backup-capable inverter and approved transfer and protection arrangement, stored battery energy can support selected household loads during grid outages.

What information is required for quotation?

Please provide the inverter model, solar system capacity, required charging and discharging power, installation space, communication requirements and estimated order quantity.

Configure Your 16kWh Floor-Standing Solar Battery

Contact Chalongfly with your inverter model, solar PV capacity, household load, backup requirements, installation space and monitoring preferences. Our team will help evaluate the 51.2V 314Ah battery, smart BMS, communication, floor-standing enclosure and inverter compatibility for your residential energy storage project.
