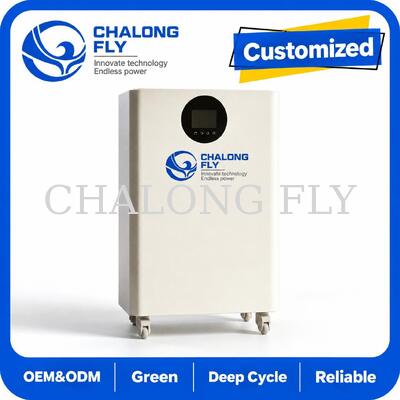

16kWh All-in-One LiFePO4 Residential Energy Storage System for Home Solar Backup

Contact Now

16kWh All-in-One LiFePO4 Residential Energy Storage System for Home Solar Backup

Minimum Order Quantity :	2 Packs	Price :	Negotiable
Packaging Details :	Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.	Delivery Time :	25–35 Working Days
Supply Ability :	2,000 Pieces per Month

Place of Origin:	Hunan,China	Brand Name:	Chalongfly
Certification:	UN38.3, MSDS	Model Number:	CLF-AIO-51V314-16K

Detail Information

Highlight:

16kWh Residential Energy Storage System

All-in-One Home Battery Storage System

LiFePO4 All-in-One Solar ESS

Product Description

Integrated Residential Solar Energy Storage

16kWh 51.2V 314Ah All-in-One LiFePO4 Home Energy Storage System

High-capacity residential battery storage with smart BMS and configurable inverter and solar charging integration for home backup and off-grid applications.

Integrated Energy Storage for Modern Homes

The Chalongfly 16kWh all-in-one energy storage platform combines high-capacity LiFePO4 battery technology with an integrated system design for residential solar power, home backup and compatible off-grid applications.

Featuring a 51.2V 314Ah battery configuration, the system provides 16.08kWh of nominal stored energy to support daily solar energy utilization and household backup requirements.

Integrated inverter, MPPT solar charging, system communication and monitoring functions can be configured according to the selected product version and application requirements.

Main Technical Specifications

Model	CLF-AIO-51V314-16K
System Type	All-in-One Residential ESS
Battery Chemistry	LiFePO4
Nominal Voltage	51.2V
Rated Capacity	314Ah
Nominal Battery Energy	16.08kWh
Battery Configuration	16S LiFePO4 Reference
Battery Management	Integrated Smart BMS
Integrated Inverter	Configuration-Dependent; Rating to Confirm
Solar MPPT	Available with Selected Inverter Configuration
AC Output	According to Inverter and Destination Market
Communication	CAN / RS485 According to Configuration
Monitoring	Display / WiFi / Bluetooth Options
Installation	Integrated ESS Cabinet
OEM / ODM	Available

Final inverter rating, AC output, solar input, cabinet dimensions, protection class and optional functions are confirmed by the approved production specification.

16.08kWh High-Capacity LiFePO4 Battery

51.2V × 314Ah = 16.08kWh Nominal LiFePO4 Battery Energy

The large-capacity battery provides substantial energy reserve for residential solar self-consumption, nighttime electricity usage and backup loads.

Actual usable energy depends on the approved depth of discharge, BMS settings, operating temperature and system conversion efficiency.

All-in-One Battery and Inverter Integration

An integrated energy storage configuration brings battery storage and selected power-conversion functions together within a coordinated system.

Integrated Battery Storage

51.2V 314Ah LiFePO4 energy storage with intelligent battery management.

Integrated Inverter Configuration

Compatible inverter options convert stored DC battery energy into AC power for household loads. Rated output and surge capability are confirmed for the selected version.

Solar MPPT Charging

MPPT-equipped configurations support photovoltaic battery charging according to the approved PV input voltage, power and current limits.

System Monitoring

Local display and optional wireless monitoring can provide access to battery status, energy information and system operating conditions.

Flexible Solar and AC Charging

Solar and grid-based charging configurations can be selected to match the available energy sources and project operating strategy.

PV Charging	Available with MPPT-Equipped Configuration
AC Charging	According to Selected Inverter/Charger
PV Input Power	Subject to Inverter Specification
MPPT Voltage Range	To Be Confirmed
Charging Priority	According to Inverter Firmware and Settings

Smart Battery Management System

The integrated BMS provides important battery monitoring and protective functions for residential energy storage operation.

Overcharge protection
Over-discharge protection
Over-current protection
Short-circuit protection
Temperature monitoring and protection
Cell voltage monitoring
Cell balancing
Battery SOC management
Communication with compatible system equipment

Home Backup and Off-Grid Power

Residential Backup Power Support selected home electrical loads during grid interruptions when integrated with an approved backup-capable inverter and transfer arrangement.	Off-Grid Solar Homes Store photovoltaic energy for compatible houses, cabins and remote properties operating with independent power systems.
Nighttime Energy Use Use stored solar energy for household consumption after photovoltaic generation decreases.	Solar Self-Consumption Increase local utilization of photovoltaic energy with suitable system control and charging strategy.

Intelligent Monitoring Options

Battery and energy system operating data can be made available through a compatible monitoring interface.

Battery SOC	Available According to BMS
Voltage / Current	Available According to Monitoring Interface
Battery Temperature	Available
Local Display	Configuration-Dependent
WiFi	Optional
Bluetooth	Optional

Inverter Output and Load Matching

Battery energy capacity and inverter output power are different specifications and must be evaluated separately.

The inverter should be selected according to the total continuous power of connected appliances, motor starting surge and required AC output characteristics.

Engineering Selection

The 16.08kWh battery rating represents stored nominal energy. Continuous AC output power and surge capability depend on the approved inverter and electrical design.

OEM and ODM Customization

Integrated inverter selection
AC output voltage and frequency
Solar PV and MPPT charging configuration
Battery and BMS current settings
Local display and monitoring
WiFi and Bluetooth options
Cabinet structure and appearance
Power and communication connectors
OEM logo and product labeling
Private-brand packaging and documentation

Information Required for System Selection

Destination country and electrical standards
AC output voltage and frequency
Household continuous and peak load
Solar PV panel power and string voltage
Grid-connected or off-grid operation
Required backup duration
Installation location
Monitoring and communication requirements
Estimated purchase quantity

Frequently Asked Questions

What is the battery energy capacity?

The 51.2V 314Ah LiFePO4 battery configuration provides 16.08kWh of nominal energy.

Does the system include an inverter?

Integrated inverter configurations are available. The exact inverter specification and included functions are confirmed in the approved quotation.

Can solar panels charge the system?

Yes, with an MPPT-equipped system configuration. PV input voltage, power and charging limits must be matched to the inverter.

Can it operate during a grid outage?

Backup operation is available with an approved backup-capable inverter and correctly installed transfer and protection equipment.

Does it support WiFi monitoring?

WiFi monitoring can be supplied as an optional function depending on the final inverter and monitoring configuration.

Can the system export electricity to the grid?

Grid export requires a separately approved grid-interactive inverter and compliance with local utility regulations. Off-grid inverter configurations do not provide grid export.

What information is required before ordering?

Please provide the destination country, AC requirements, household load, solar array specification, backup requirements, installation conditions and estimated order quantity.

Configure Your 16kWh All-in-One Solar ESS

Contact Chalongfly with your required AC output, solar PV array specifications, household power consumption, backup duration and installation conditions. Our team will help evaluate the 51.2V 314Ah battery, inverter configuration, MPPT charging, monitoring and integrated ESS design for your residential energy project.
