Custom 12.8V 200Ah LiFePO4 Battery Pack with BMS for Portable Power and Solar Storage

Contact Now

Custom 12.8V 200Ah LiFePO4 Battery Pack with BMS for Portable Power and Solar Storage

Minimum Order Quantity :	2 Pieces	Price :	Negotiable
Packaging Details :	Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.	Delivery Time :	15–25 Working Days
Supply Ability :	3,000 Pieces per Month

Place of Origin:	China	Brand Name:	Chalongfly
Certification:	CE, RoHS, UN38.3, MSDS	Model Number:	CLF-LFP-12V200Ah

Detail Information
Nominal Voltage:	12.8V	Nominal Capacity:	200Ah
Nominal Energy:	2560Wh	Battery Chemistry:	LiFePO4 / LFP
Cell Type:	A-Grade LiFePO4 Cells	Battery Configuration:	4S
Cycle Life:	More Than 4,000 Cycles At 80% DOD	Battery Management System:	Built-in BMS
Charging Method:	CC/CV	Application:	Portable Power, Solar Lighting, RV And Backup Power
Lead-Acid Replacement:	Supported	Color:	Black Or Customized
Customization:	Voltage, Capacity, Enclosure, BMS, Connector And Logo	OEM / ODM:	Available

Product Description

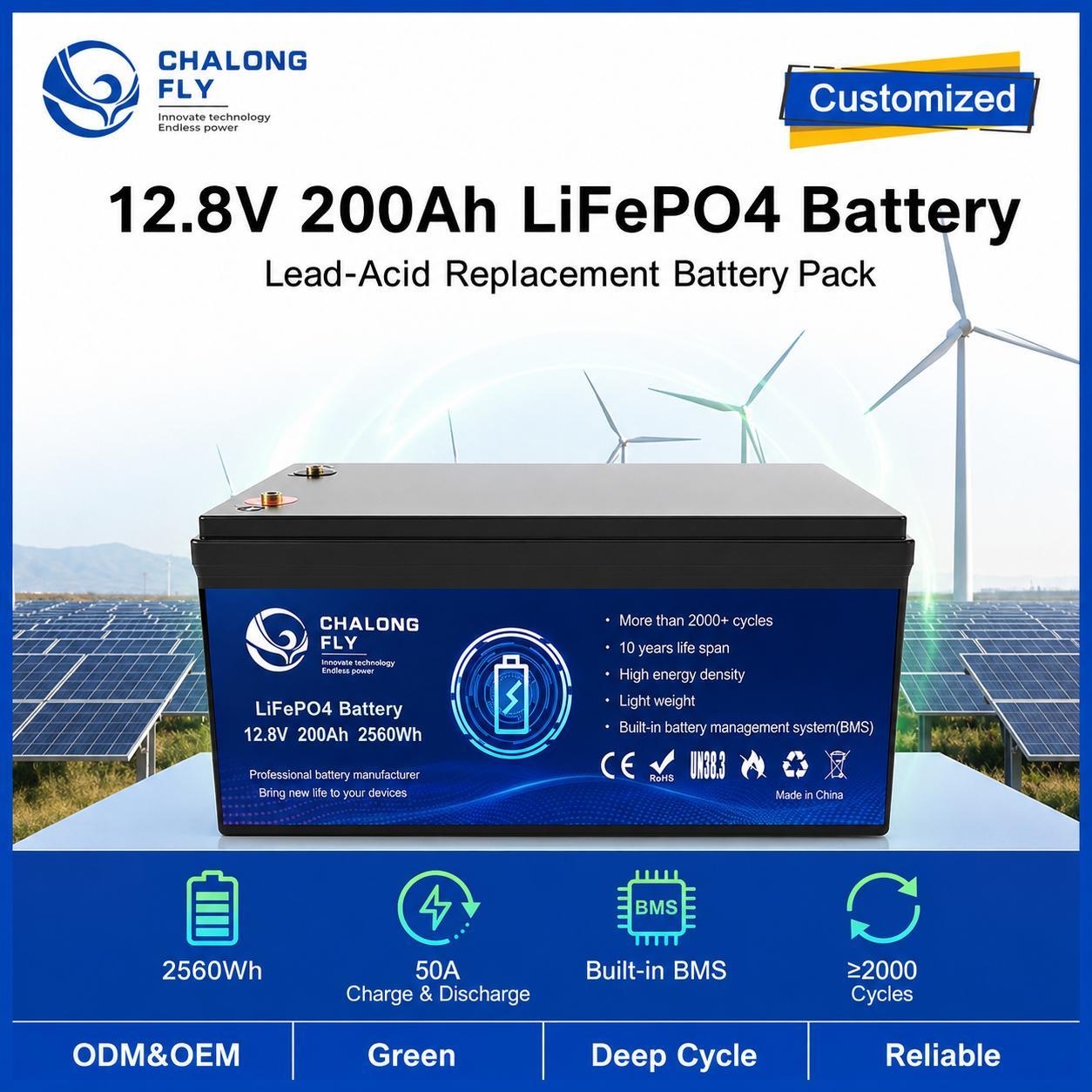

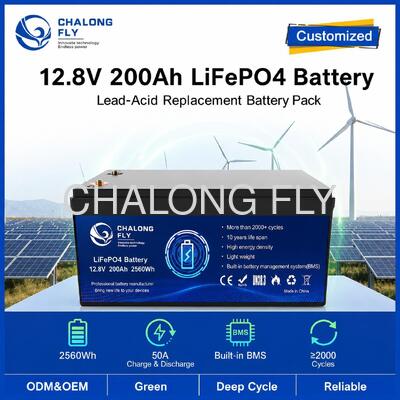

Custom 12.8V 200Ah LiFePO4 Battery Pack

High-capacity lithium iron phosphate battery with A-grade cells, built-in BMS and flexible OEM/ODM customization for portable power, solar lighting, RV and backup power applications.

Product Overview

The Chalongfly 12.8V 200Ah LiFePO4 battery pack provides 2560Wh of nominal energy for portable power stations, solar lighting systems, recreational vehicles, backup power and customized electrical equipment.

The battery uses A-grade lithium iron phosphate cells and an integrated battery management system. Compared with conventional lead-acid batteries, it provides higher usable capacity, longer cycle life, lower maintenance requirements and more stable output voltage.

Main Specifications

Product Model	CLF-LFP-12V200Ah
Nominal Voltage	12.8V
Nominal Capacity	200Ah
Nominal Energy	2560Wh
Battery Chemistry	LiFePO4 / Lithium Iron Phosphate
Cell Type	A-Grade LiFePO4 Cells
Battery Configuration	4S
Cycle Life	More Than 4,000 Cycles at 80% DOD
Battery Management System	Built-in BMS
Charging Method	CC/CV
Typical Applications	Portable Power, Solar Lighting, RV and Backup Power
Customization	Voltage, Capacity, Enclosure, BMS, Connector, Cable and Logo

Key Product Advantages

2560Wh High-Capacity Energy

The 12.8V 200Ah configuration provides 2560Wh of nominal energy for equipment requiring extended operating time and reliable DC power.

A-Grade LiFePO4 Cells

Selected lithium iron phosphate cells provide stable voltage, consistent capacity and reliable long-term performance.

More Than 4,000 Cycles

The battery is designed to provide more than 4,000 charge and discharge cycles under an 80% depth-of-discharge condition.

Integrated Battery Management System

The built-in BMS monitors battery voltage, current and temperature to support safe and stable operation.

Lead-Acid Replacement

LiFePO4 technology provides higher usable capacity, reduced maintenance and longer service life than conventional lead-acid batteries.

Flexible OEM and ODM Service

Voltage, capacity, enclosure, terminals, connectors, cable harnesses, BMS functions, labels and packaging can be customized.

Built-in BMS Protection

The integrated battery management system monitors battery operation and helps protect the cells against abnormal electrical and temperature conditions.

Overcharge Protection	Over-discharge Protection
Over-current Protection	Short-circuit Protection
Temperature Monitoring	Cell Voltage Balancing

Typical Applications

Portable Power Stations High-capacity DC energy for portable power equipment	Solar Street Lights Energy storage for outdoor solar lighting systems	RV and Campervan Auxiliary and onboard electrical power
Solar Energy Storage Small off-grid and standalone storage systems	Backup Power Emergency and standby DC power supply	Customized Equipment OEM battery solutions for electrical equipment

Golf Cart System Integration

The battery may be developed as a 12V module for compatible golf cart battery systems. Before series connection or vehicle installation, the total system voltage, discharge current, BMS configuration, charger, communication requirements and installation space must be verified.

OEM and ODM Customization

Chalongfly provides customized lithium battery solutions for equipment manufacturers, energy system suppliers, distributors and project customers.

Customized voltage and capacity
Customized enclosure dimensions and materials
Customized continuous and peak discharge current
Customized terminals, connectors and cable harnesses
Customized BMS protection parameters
Optional communication and monitoring functions
Customized labels, logo and export packaging
Battery development according to available installation space

Quality Control

Cell capacity and internal resistance matching
Battery voltage and capacity testing
Charge and discharge performance testing
BMS protection function testing
Connector and cable inspection
Final appearance and packaging inspection

Packaging and Shipping

Each battery is protected with suitable cushioning materials and packed in a strong export carton. Wooden cases or pallets can be provided for bulk orders.

Transportation documents such as UN38.3 and MSDS can be prepared according to the battery configuration and shipping requirements.

Frequently Asked Questions

How much nominal energy does this battery provide?

The 12.8V 200Ah battery provides 2560Wh of nominal energy.

Can this battery replace a lead-acid battery?

Yes. It can replace a compatible 12V lead-acid battery when the charging voltage, load current, dimensions and connectors are suitable.

Does the battery include a BMS?

Yes. The battery includes a built-in BMS. Its current rating and protection parameters can be configured for the application.

Can it be used in a golf cart?

It may be used as a customized 12V module in a compatible golf cart battery system. System voltage, BMS compatibility, discharge current and charger requirements must be confirmed before installation.

Can the enclosure and connectors be customized?

Yes. The enclosure dimensions, terminals, connectors, cable length, installation method, labels and packaging can be customized.

What information is required for customization?

Please provide the required voltage, capacity, continuous and peak current, charger, installation space, connector type and application.

Request a Customized Battery Solution

Send Chalongfly your required voltage, capacity, current, installation dimensions, connector and application information. Our team will evaluate the project and provide a suitable LiFePO4 battery solution.
