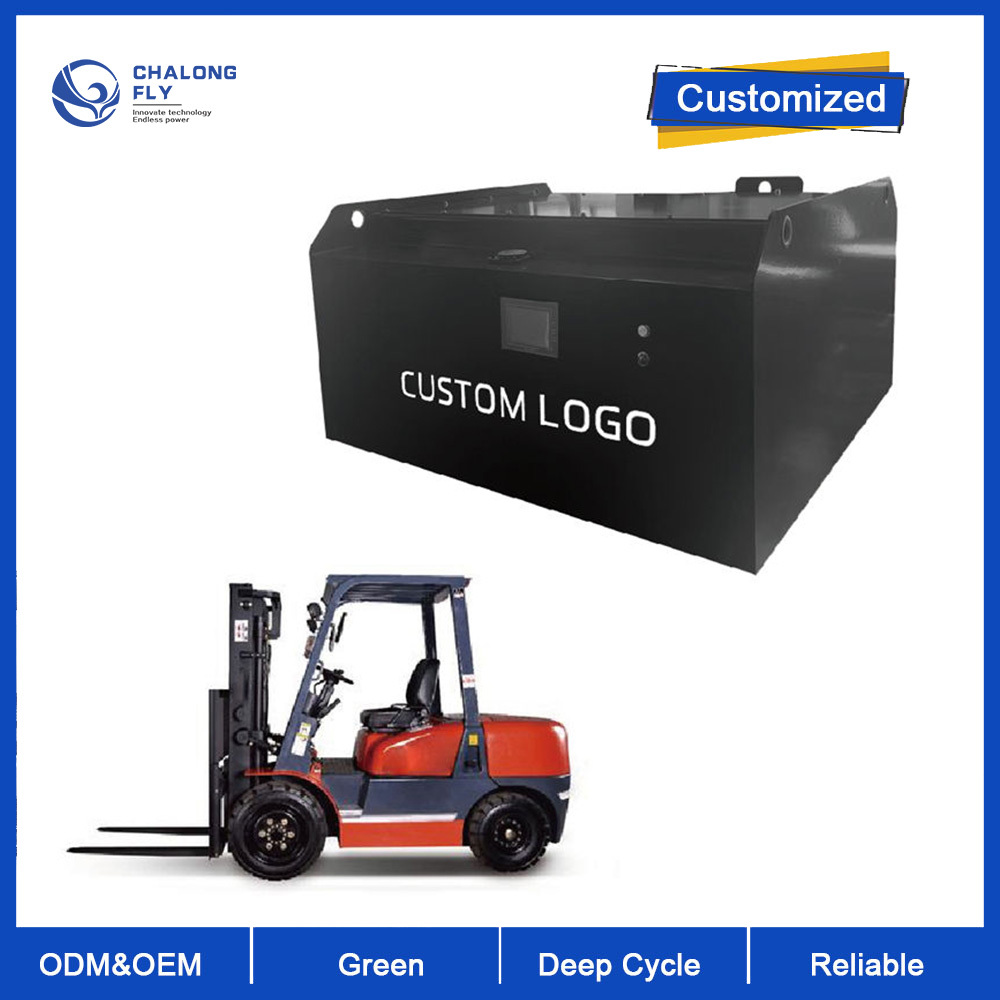

CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah High Voltage Battery Pack For Low Speed Vehicle Truck
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsAPP : +8618975107916
|
Detail Information |
|||
| Battery Model: | CLF-R3817 | Battery Cell: | Grade A |
|---|---|---|---|
| Battery Type: | Lithium | Anode Materials: | LFP/NCM |
| Nominal Voltage:: | 60V | Nominal Capacity:: | 100ah/Customized |
| Discharge Current: | 100A | Max Continuous Discharge Current: | 200A |
| Cycle Life:: | > 6000 (at 80% DoD) | Size: | 550*375*180mm/CUSTOMIZED |
| IP GRADE: | IP67 | Application:: | Forklift, Golf Carts, Low Speed Bus, Sanitation Vehicle Etc |
| OEM/ODM: | Accepatable | ||
| Highlight: | 48V 200Ah LiFePO4 forklift battery,lithium forklift battery with warranty,200Ah deep cycle forklift battery |
||
Product Description
| Parameter | Value |
|---|---|
| Rated Voltage | 48V (51.2V actual) |
| Rated Capacity | 200Ah @ 0.2C, 25℃ |
| Energy | 10.24kWh |
| Cell Type | LiFePO4 (Grade A) |
| Cycle Life | ≥6000 cycles @ 80% DOD |
| Charging Voltage | 58.4V DC (CC/CV) |
| Charging Current | 20A–40A (fast charge optional) |
| Continuous Discharge | 100A |
| Peak Discharge | 200A (30s) |
| Operating Temp (Charge) | 0℃ ~ 45℃ |
| Operating Temp (Discharge) | -20℃ ~ 60℃ |
| Storage Temp | -20℃ ~ 50℃ (50% SOC recommended) |
| Self-Discharge | ≤3% per month |
| Dimension (L*W*H) | 600*400*280mm (customizable) |
| Weight | 58kg (customizable) |
| Protection Level | IP54 (IP65 optional) |
| Communication | CAN / RS485 / Bluetooth (optional) |
| Certification | CE, RoHS, UN38.3, MSDS |
| Warranty | 5 years or 3000 cycles (whichever first) |
At 80% depth of discharge (DOD), our LiFePO4 cells deliver 6000+ cycles, maintaining over 80% initial capacity. That is 3–5 times longer than lead-acid (1000–1500 cycles). Service life reaches 5–8 years, reducing replacement frequency and total cost of ownership.
Fast Charging & High Efficiency
Supports 20A–40A fast charging: 0–80% in 2–3 hours, full charge in 3–4 hours. No memory effect; opportunity charging during breaks is allowed. Maximizes forklift uptime in multi-shift operations.
| Item | 48V 200Ah LiFePO4 | Lead-Acid Battery |
|---|---|---|
| Cycle Life | 6000+ cycles | 1000–1500 cycles |
| Charging Time | 2–3h (0–80%) | 8–12h (full) |
| Weight | 58kg | 170–200kg |
| Maintenance | Zero maintenance | Watering/inspection monthly |
| Voltage Stability | Stable throughout discharge | Drops significantly under load |
| Safety | Fire/explosion proof | Acid leakage, explosion risk |
| Environmental | No heavy metals, recyclable | Lead/cadmium pollution |
| Service Life | 5–8 years | 1–2 years |
| Total Cost | Lower (long term) | Higher (frequent replacement) |
