CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah High Voltage Battery Pack For Low Speed Vehicle Truck
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsAPP : +8618975107916
| Minimum Order Quantity : | 1-1000 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLF |
|---|---|---|---|
| Certification: | CE/ROHS/MSDS/UN38.3 | Model Number: | CLF-R5418 |
|
Detail Information |
|||
| Anode Material: | LFP | Battery Type: | LiFePO4 Lithium Battery |
|---|---|---|---|
| Voltage: | 60V | Capacity: | 120AH |
| Size: | OEM | OEM/ODM: | Yes |
| Cycle Life: | 3500 Times | BMS: | Bluetooth Function |
| Application: | Electric Bicycles/Scooters, EV, Motorcycle, E-bike Rickshaw | ||
Product Description

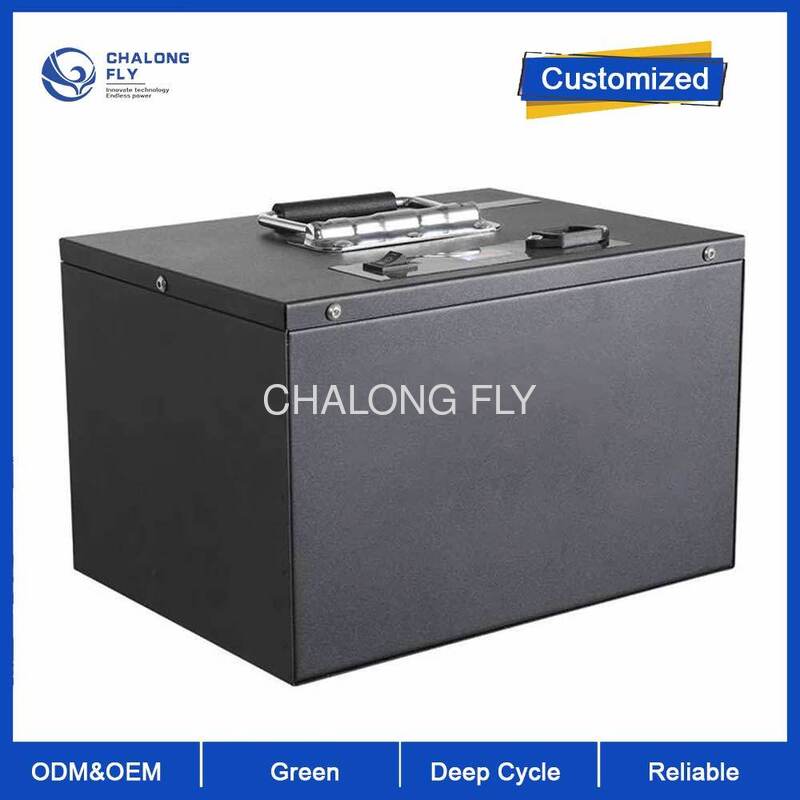

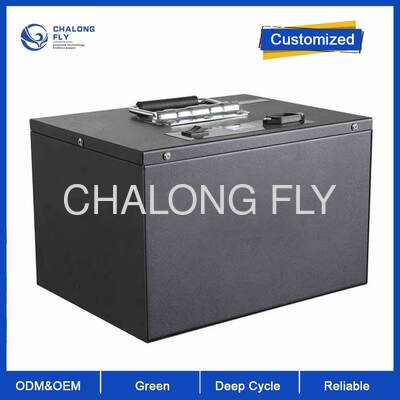

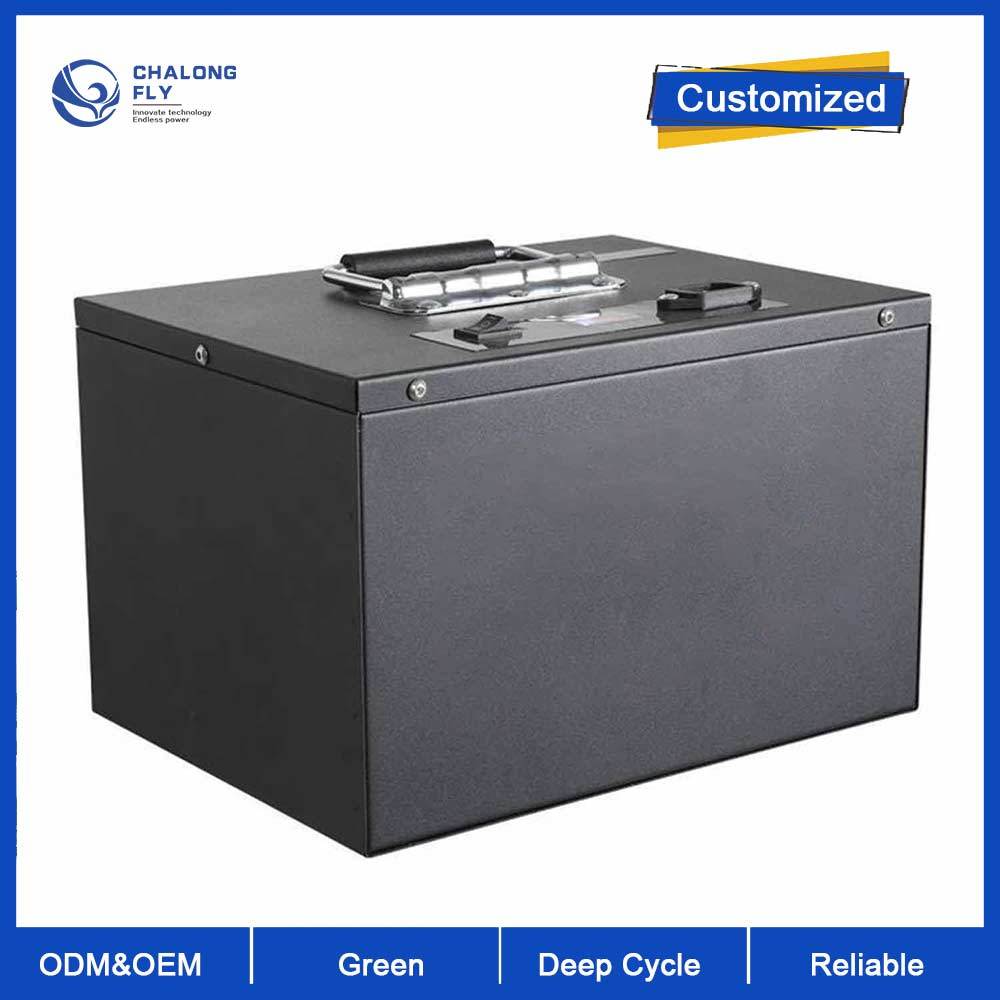

This 60V 45Ah LiFePO4 battery is specifically designed for electric tricycles, light cargo trikes, family commuters, and low-speed electric vehicles. With approximately 2.7-2.8kWh energy storage, it delivers 60-80 km real-world range per charge and supports 800-1500W motors. The built-in smart BMS ensures safety and longevity—3,000-4,000+ cycles with 5-8 years of service life. Weighing about 60% less than lead-acid batteries of equivalent capacity, it's the best choice for budget-conscious tricycle upgrades.
| Parameter | Value |
|---|---|
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Voltage | 60V / 60.8V |
| Nominal Capacity | 45Ah |
| Total Energy | 2.7 – 2.8 kWh (2,736Wh approx.) |
| Cycle Life (80% DoD) | ≥3,000 – 4,000 cycles |
| Weight | 17 – 18.5 kg |
| Dimensions (L*W*H) | 420*240*210 mm (Customizable) |
| Max. Continuous Discharge Current | 30A – 45A |
| Peak Discharge Current | 67.5A – 200A (≤30s) |
| Max. Charge Current | 10A – 22.5A |
| Charge Cut-off Voltage | 71.4V |
| Discharge Cut-off Voltage | 47.5V – 48V |
| Operating Voltage Range | 47.5V – 69.35V |
| Charge Temperature | 0℃ ~ 45℃ |
| Discharge Temperature | -20℃ ~ 60℃ |
| Cell Configuration | 3P19S / 17S1P |
| Ingress Protection | IP65 – IP67 |
| Communication (Optional) | CAN, RS485, Bluetooth, 4G |
| Certification | CE, UN38.3, MSDS, ISO9001, UL (Optional) |
![]()
![]()
