CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah High Voltage Battery Pack For Low Speed Vehicle Truck
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsAPP : +8618975107916
| Minimum Order Quantity : | 2 unit | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | Chalong Fly |
|---|---|---|---|
| Certification: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | Model Number: | CLFLE218 |
|
Detail Information |
|||
| Battery Type:: | Lifepo4 Battery | Voltage:: | 72V |
|---|---|---|---|
| Capacity:: | 130AH | Size:: | Customized |
| OEM/ODM:: | Yes | Transport Package:: | Foam & Plywood Case |
| Waterproof Standard:: | IP65 | HS Code:: | 8507600090 |
| Features:: | Cost Effective, Fast Delivery, Stable Structure | Application:: | Electric Vehicle，electric Boat，electric Yacht,marine |
Product Description

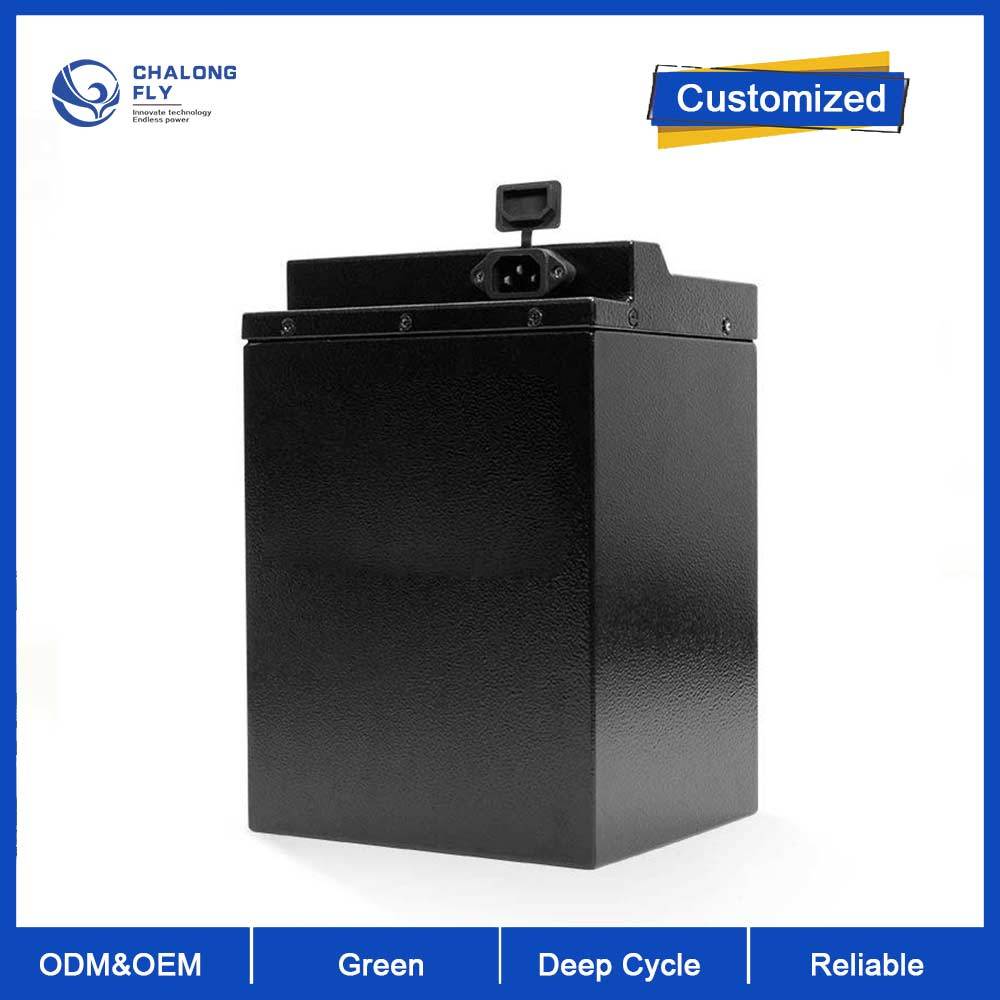

Upgrade your electric scooter or motorcycle with our 72V 130Ah lithium battery pack. Designed for high-performance two-wheelers, this battery delivers exceptional range, reliable power output, and long cycle life. Whether you are a daily commuter or a performance enthusiast, this battery ensures you ride further and faster with peace of mind.
| Specification | Details |
|---|---|
| Nominal Voltage | 72V |
| Nominal Capacity | 130Ah |
| Energy | 9.36 kWh |
| Cell Type | Prismatic Lithium Iron Phosphate (LiFePO₄) |
| Cell Grade | Grade A, brand new automotive-grade cells |
| Cycle Life | > 3500 cycles (at 80% DOD, 1C rate) |
| Max Continuous Discharge Current | 150A |
| Peak Discharge Current | 300A (for 10 seconds) |
| Recommended Charge Current | 20A (0.15C) |
| Max Charge Current | 50A (0.38C) |
| Charge Cut-off Voltage | 86.4V ± 0.2V |
| Discharge Cut-off Voltage | 60V ± 0.2V (under load) |
| BMS (Battery Management System) | Smart 200A BMS with Bluetooth monitoring |
| Protection Functions | Overcharge, over-discharge, over-current, short circuit, over-temperature |
| Balancing | Passive balancing (≥50mA) |
| Communication | CAN / RS485 (optional) |
| Dimensions (L * W * H) | 565 * 276 * 240 mm |
| Weight | Approximately 68 kg |
| Enclosure Material | Aluminum alloy with powder coating |
| Ingress Protection | IP65 (waterproof and dustproof) |
| Terminal Type | Anderson 175A connector |
| Operating Temperature (Charge) | 0°C ~ 55°C |
| Operating Temperature (Discharge) | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 35°C |
| Certifications | UN38.3, MSDS, CE, RoHS |
We use Grade A prismatic lithium iron phosphate cells sourced from top manufacturers (e.g., CATL, EVE). These cells offer excellent thermal stability, safety, and a lifespan of over 3500 cycles – nearly 10 years of daily use.
Designed for extreme durability, our 72V lithium batteries feature an IP65-rated housing. This superior ingress protection prevents dust buildup and water damage, significantly extending the battery's lifespan and ensuring rider safety in all weather conditions.
The enclosure is made of high-strength aluminum alloy with anti-corrosion coating, ensuring resistance to vibration and impact – ideal for rough road conditions.
