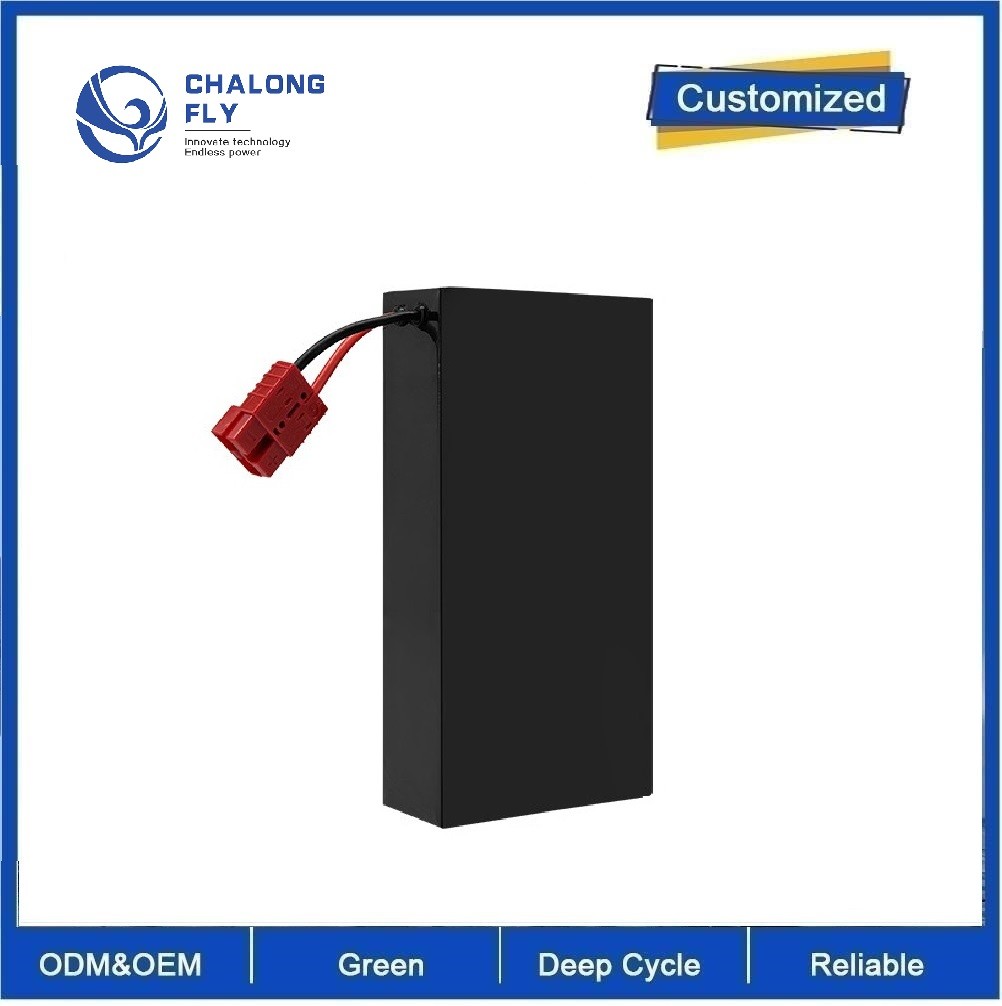

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery

Minimum Order Quantity : 10 Packaging Details : carton box+tray
Delivery Time : 30days Payment Terms : L/C,T/T
Supply Ability : 5000sets/month
Place of Origin: Hunan, Changsha Brand Name: CLF
Certification: UN38.3,MSDS Model Number: CLF-R5427

Detail Information

Brand Name: CLF Or OEM Place Of Origin: Hunan, China
Battery Type: LiFePO4/NMC Battery Battery Size: 24v 20Ah
Rated Voltage: 25.6V Capacity: 20AH
Combination: 8S1P Working Voltage: 20V-29.2V
Charge Current: 20A Continouse Discharge Current: 100A
Peak Discharge Current: 200A Weight: 3.35kg
Size: Customized Application: Electric Forklift, AGV, Ice Resurfacer, Scooter Etc.
Warranty: 2years
Highlight:

CLF Electric hydraulic jack lithium battery

,

10C high rate Discharge lithium battery

,

24V 20AH lithium battery

Product Description

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 0

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery


CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 1CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 2

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 3

Product Model


Model Capacity Battery type Dimension(mm) Weight Shell
Thickness Width Lenghth (±1kg)
48V10Ah 10Ah NCM 70 110 269 2.8kg NO
70 85 294
48V20Ah 20Ah NCM 138 110 269 5.5kg NO
138 85 294
48V30Ah 30Ah NCM 182 397 170 11.5kg NO
182 223 320
48V40Ah 40Ah LiFePO4 200 548 195 28kg Stainless steel
200 324 334
48V50Ah 50Ah LiFePO4 298 468 176 31kg Stainless steel
298 284 296
48V60Ah 60Ah LiFePO4 247 612 195 35kg Stainless steel
247 356 334
48V70Ah 70Ah LiFePO4 158 900 234 43kg Stainless steel
158 500 412
48V85Ah 85Ah LiFePO4 158 900 234 44kg Stainless steel
158 500 412
48V92Ah 92Ah LiFePO4 233 596 234 45kg Stainless steel
233 348 412
48V100Ah 100Ah LiFePO4 198 676 260 48kg Stainless steel
198 388 464
48V120Ah 120Ah LiFePO4 196 900 234 58kg Stainless steel
196 500 412
48V140Ah 140Ah LiFePO4 198 868 260 64kg Stainless steel
198 484 464
48V150Ah 150Ah LiFePO4 158 500 408 83kg Stainless steel
158 900 764
48V175Ah 175Ah LiFePO4 231 996 234 77kg Stainless steel
231 548 412
48V200Ah 200Ah LiFePO4 196 396 756 95kg Stainless steel
196 692 412
48V240Ah 240Ah LiFePO4 230 396 756 100kg Stainless steel
230 692 412

Remark:
1. An ultra-large-capacity lithium battery pack that can be customized to store up to 500 kilowatt hours of electricity;
2. Discharge current: 10A-400A, other current values ​​can also be customized;
3. The handle for weighing less than 10kg is directly above. Handles above 10kg are in the width direction;
4. It can be equipped with RS485 or RS232 or CAN communication protocol, which shall be subject to the actual situation;
5. The above are only some models. If you have other sizes and requirements, please consult and ask for relevant plans.


Application

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 4

Production Details

From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 5

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 6

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 7CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 8

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 9

CLF Electric hydraulic jack with lithium battery 10C high rate Discharge 24V 20AH lithium battery 10
