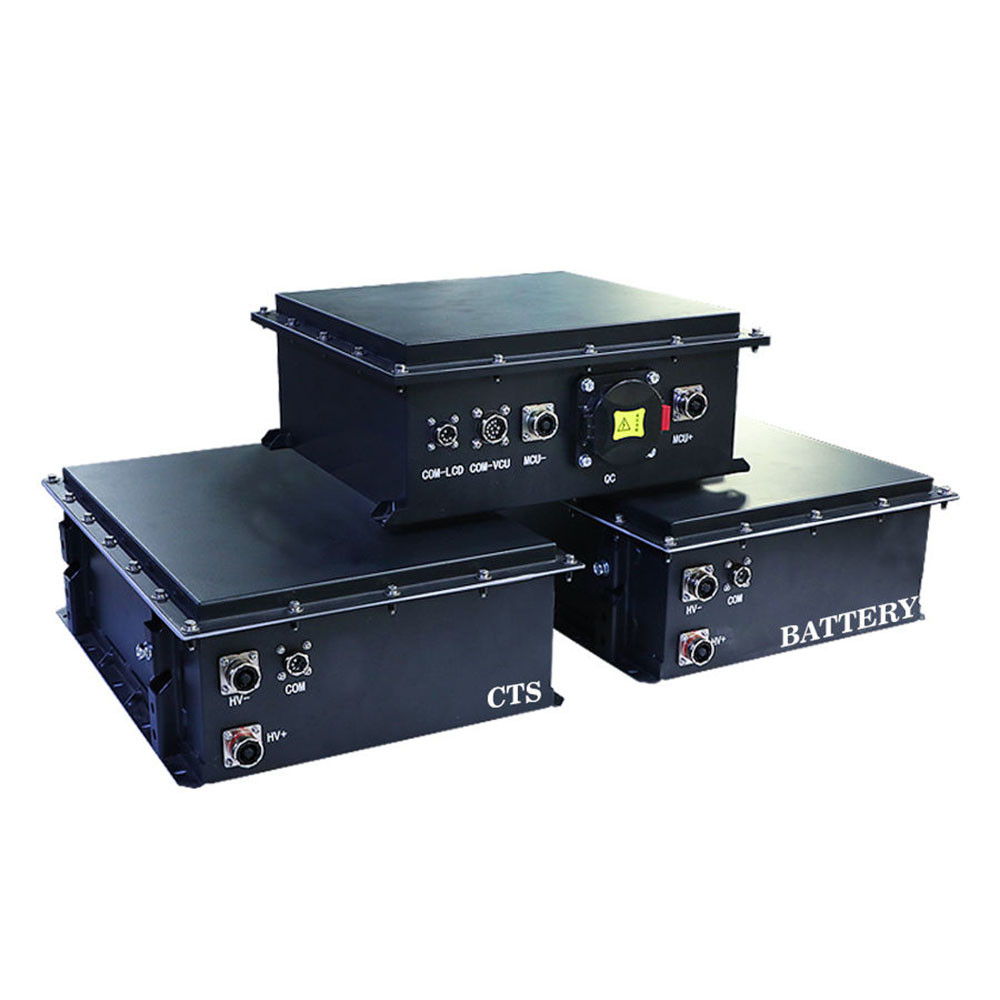

CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah High Voltage Battery Pack For Low Speed Vehicle Truck
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsAPP : +8618975107916
| Minimum Order Quantity : | 1-1000 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLF |
|---|---|---|---|
| Certification: | CE/ROHS/MSDS/UN38.3 | Model Number: | CLFC-0109 |
|
Detail Information |
|||
| Features: | Cost Effective, Fast Delivery, Stable Structure | Battery Type: | Lifepo4 Battery,li-ion Battery,lithium Battery,NMC |
|---|---|---|---|
| Voltage: | 12V/24V/48V/96V/144V | Capacity: | 40AH, 80AH, 120AH, 200AH, 300AH, 400AH, 500AH |
| Application: | Electric Vehicle, Electric Boat, Electric Yacht, Marine | Dimension: | Customized |
| OEM/ODM: | Yes | Keywords: | Lithium Battery,lifepo4 Battery Pack,nmc Battery,marine Battery |
| Battery Case: | Metal | Transport Package: | Foam & Plywood Case |
| Waterproof Standard: | IP67 | ||
| Highlight: | Marine Energy Solutions LiFePO4 Lithium Battery,12V 72V 96V LiFePO4 Lithium Battery,100AH 200AH LiFePO4 Lithium Battery |
||
Product Description
|
ELECTRICAL SPECIFICATIONS |
|
| Cell Type - Chemistry | Prismatic- LiFePO4 |
| Rated Capacity | 50Ah |
| Rated Voltage | 76.8V |
| Energy | 3.84kWh |
| Resistance | 30mΩ |
| Self Discharge | <4% per month |
| Modules in Series | 4S1P to 307.2V 50Ah battery pack |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 500*370*160 |
| Weight | 32Kg/module |
| Enclosure Protection | IP67 |
| DISCHARGE/CHARGE SPECIFICATIONS | |
| Discharge Cut-off Voltage | 60V |
| Max Continuous Discharging Current | 50A |
| Peak Discharge Current | 100A for 30 seconds |
| Recommended Discharge Current | 50A |
| CHARGE SPECIFICATIONS | |
| Charging Limited Voltage | 87.6V |
| Max Charging Current | 50A |
| Recommended Charge Current | 25A |
| TEMPERATURE SPECIFICATIONS | |
| Charge Temperature Range | 0~45ºC |
| Discharge Temperature Range | -20~60ºC |
| Recommended Operating Temperature | 15~35ºC |
| Storage Temperature & Humidity Range (Less than 1 month) |
-20~35ºC, 45~75%RH |
| Storage Temperature & Humidity Range (Less than 3 months) |
-10~35ºC, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35ºC, 45~75%RH |
| OEM | |
| Available on request | yes |
Top Automotive-Grade Cells
We have established long-term partnerships with leading battery cell brands such as EVE, BAK, and Lishen. We carefully select lithium iron phosphate cells that meet automotive-grade standards and ensure consistency through rigorous screening to provide customers with reliable battery solutions that are highly stable and have a long life (≥ 6,000 cycles).
![]()

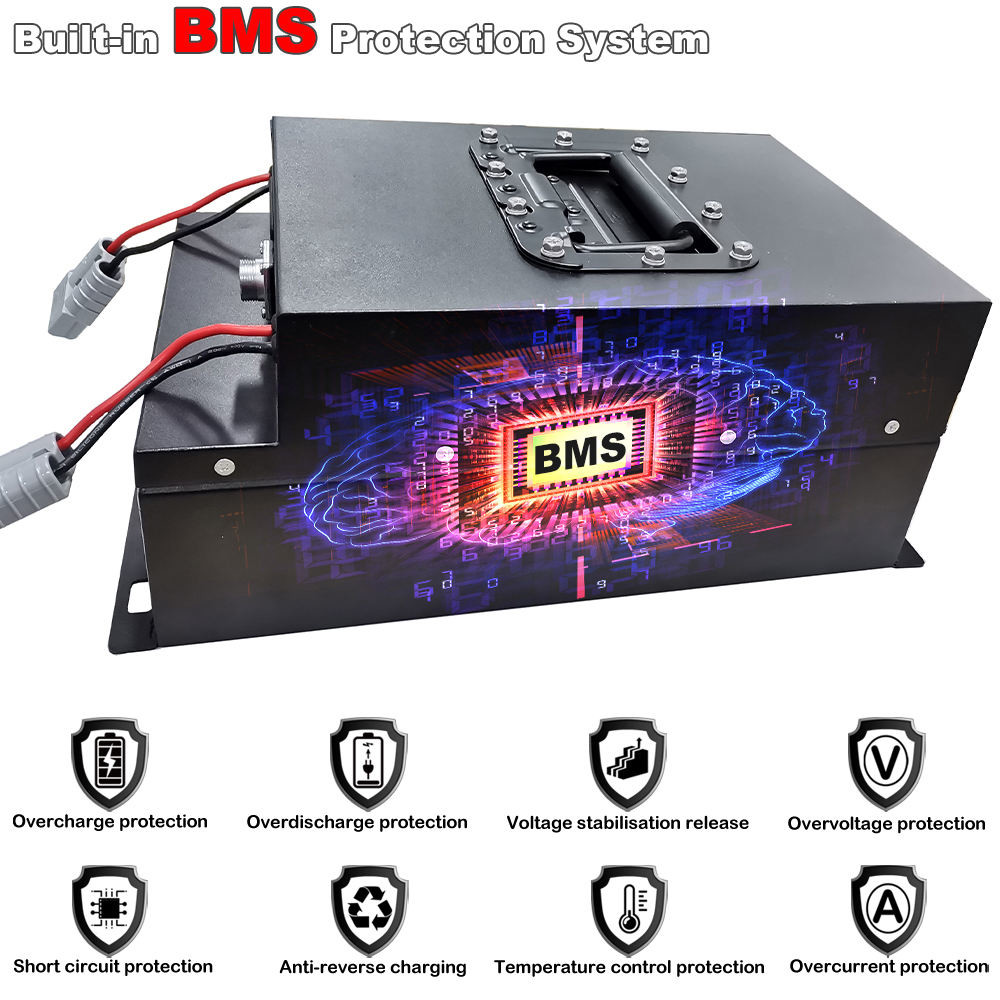

Intelligent BMS
Our BMS employs automotive-grade core chips and features a dual hardware-software architecture to provide multi-layer safety protection (over-charge/discharge, over-current, short circuit, and temperature anomalies). With high-precision cell balancing and support for CAN/RS485 communication protocols, it enables real-time monitoring of voltage, temperature, SOC, and other critical data, delivering full lifecycle intelligent management for the battery pack.
![]()
![]()
If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.
Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
