CLF Electric Forklift AGV Carrier LiFepo4 EV Lithium Battery Packs OEM ODM 24V 48V 60Ah RS485 communication

Product Description

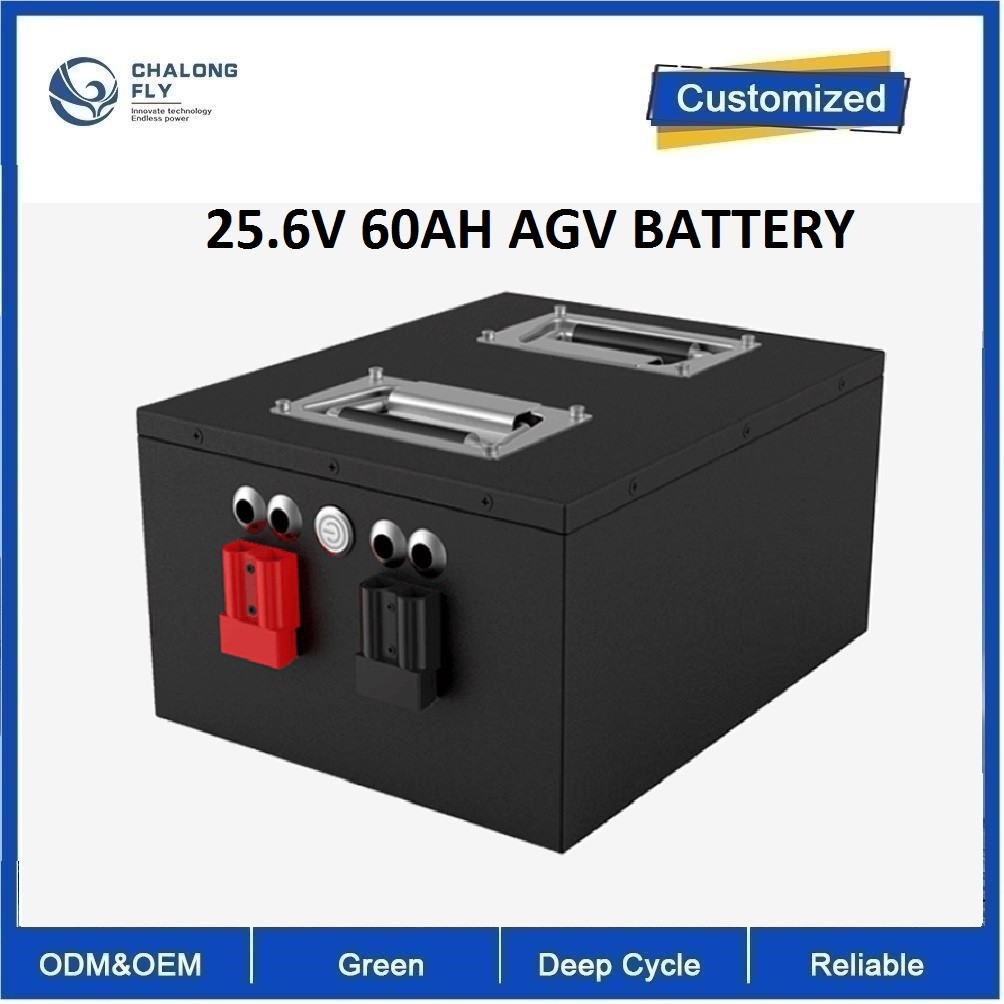

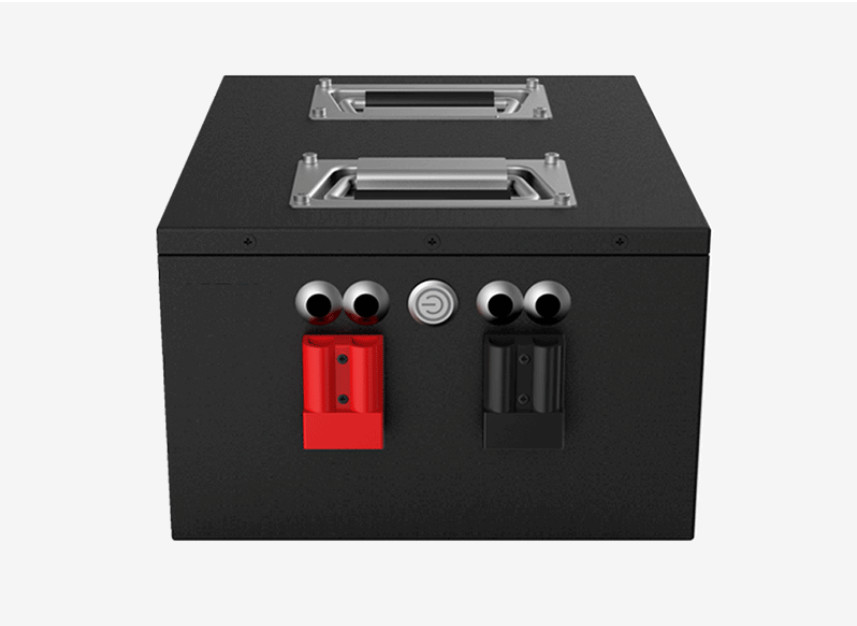

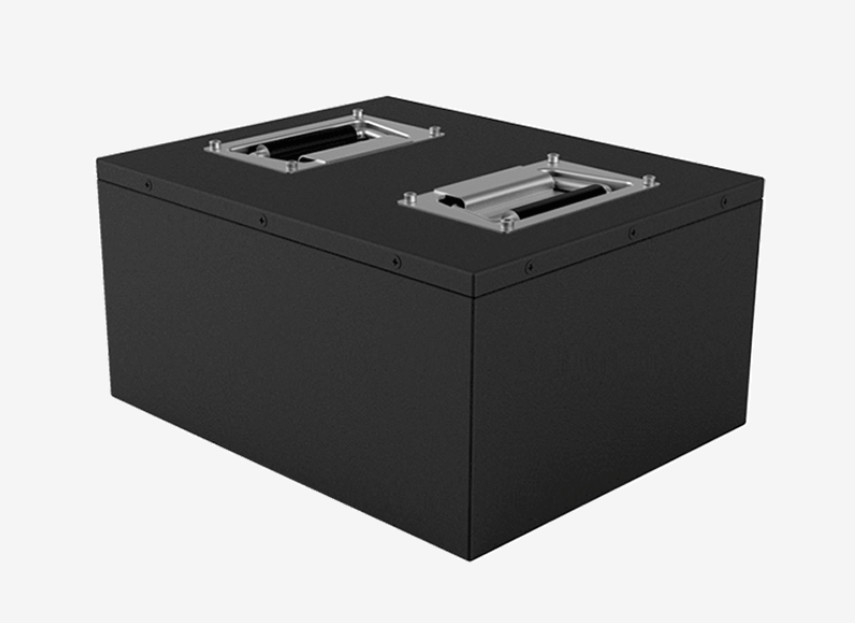

25.6V/60Ah AGV power lithium battery Parameter

Cell type: 26650/3.2V/3.5Ah

Battery specifications: 26650/8S18P/25.6V/60Ah

Nominal voltage: 25.6V

Nominal capacity: 60Ah

Charging voltage: 29.2V

Charging current: ≤30A

Discharge current: 20A

Instant discharge current: 60A

Discharge cut-off voltage: 20V

Finished internal resistance: ≤200mΩ

Product size: 304×243×152 (Max)

Battery weight: 15Kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55 ℃

Storage temperature: -20 ~ 55 ℃

Temperature protection: 65℃±5℃

Battery case: cold-rolled sheet metal

Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance and so on

Application: Robot AGV RGV

Product characteristics

Shock-proof and dust-proof: cold-rolled sheet metal, surface spray treatment, internal filled with shock-proof structure, seismic and dust-proof.

The battery pack is safe, with a temperature probe, and the temperature exceeds the automatic start protection;

High cycle life of battery pack, in line with low carbon, energy saving, environmental protection value concept;

OEM Battery parameters

Product Model

Remark:
1. An ultra-large-capacity lithium battery pack that can be customized to store up to 500 kilowatt hours of electricity;
2. Discharge current: 10A-400A, other current values ​​can also be customized;
3. The handle for weighing less than 10kg is directly above. Handles above 10kg are in the width direction;
4. It can be equipped with RS485 or RS232 or CAN communication protocol, which shall be subject to the actual situation;
5. The above are only some models. If you have other sizes and requirements, please consult and ask for relevant plans.

Production Details

From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
