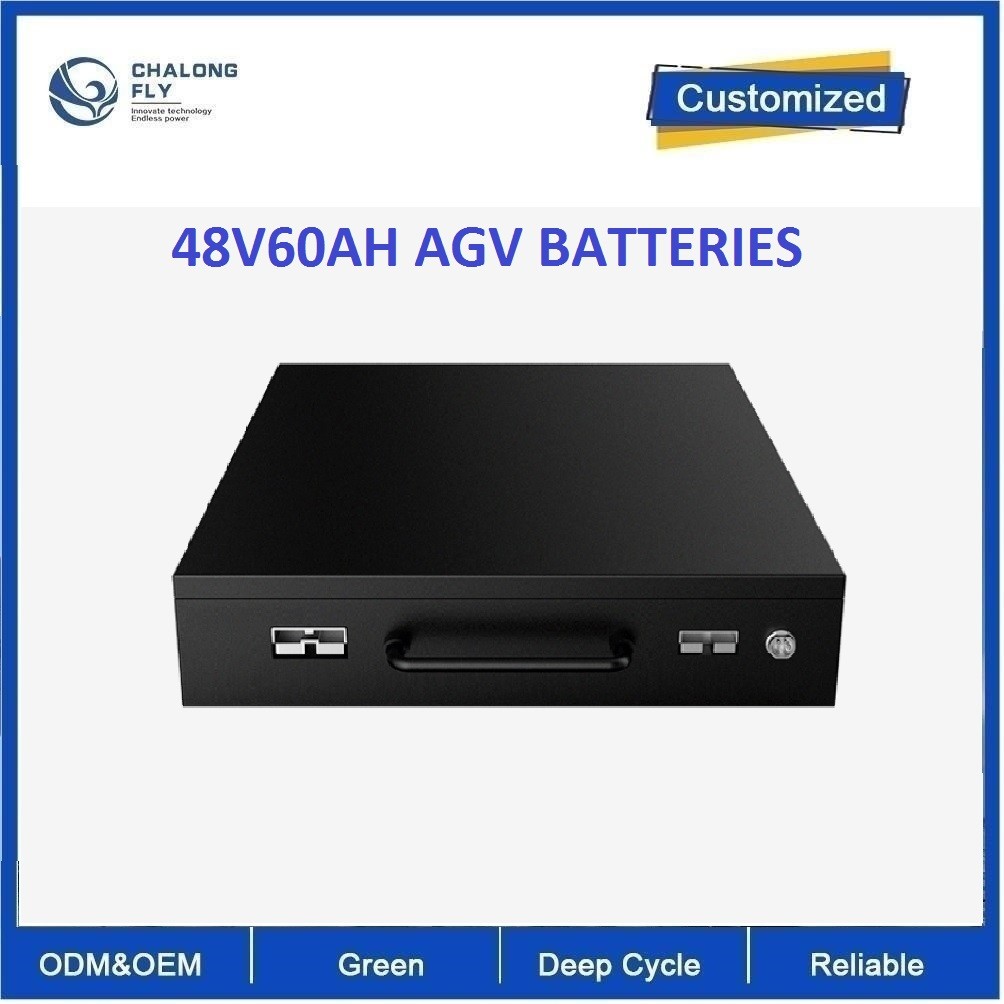

CLF Electric Forklift AGV Carrier LiFepo4 EV Lithium Battery Packs OEM ODM 24V 48V 60Ah RS485 communication

Product Description

48V/60Ah AGV power lithium battery Parameter

Cell type: 26650/3.7V/5Ah

Battery specifications: 13S12P/48V/60Ah

Nominal voltage: 48V

Nominal capacity: 60Ah

Charging voltage: 54.6V

Charging current: ≤30A

Discharge current: 100A

Instant discharge current: 150A

Discharge cut-off voltage: 39V

Internal resistance of finished product: ≤100mΩ

Battery weight: 34Kg

Product size: 400*500*90mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Temperature protection: 70℃±5℃

Battery case: sheet metal case

Communication: RS485

Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance and so on

Application: AGV vehicle

Product characteristics

High current output

The battery has built-in temperature protection

The battery comes with a power detection port

485 Communication management: SOC management, fault warning

Battery pack safety, long cycle life

Fast charge 0.5C charge

High cycle life of the battery pack, in line with the value concept of low carbon, energy saving and environmental protection

OEM Battery parameters

Product Model

Remark:
1. An ultra-large-capacity lithium battery pack that can be customized to store up to 500 kilowatt hours of electricity;
2. Discharge current: 10A-400A, other current values ​​can also be customized;
3. The handle for weighing less than 10kg is directly above. Handles above 10kg are in the width direction;
4. It can be equipped with RS485 or RS232 or CAN communication protocol, which shall be subject to the actual situation;
5. The above are only some models. If you have other sizes and requirements, please consult and ask for relevant plans.

Production Details

From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
