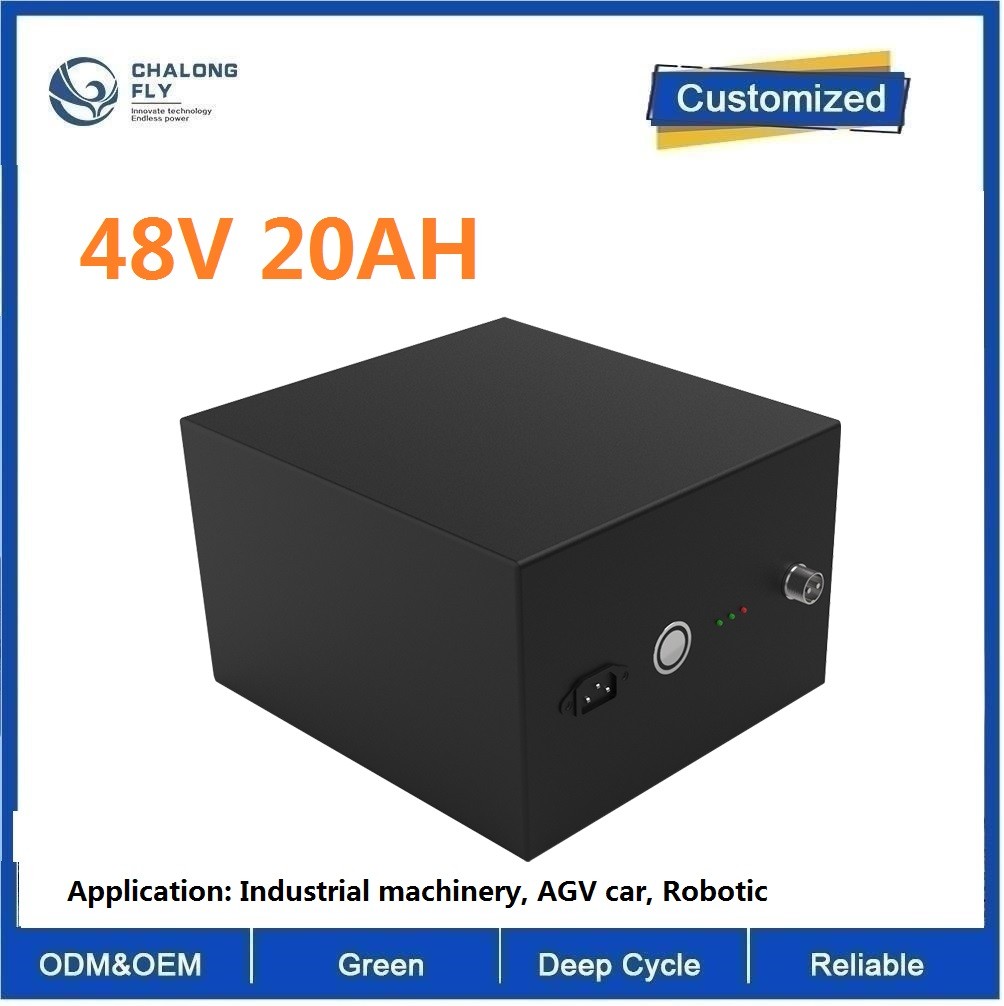

CLF OEM ODM 48V 20AH LiFePO4 Lithium Iron Battery Pack For Robots Energy Storage Truck EV Golf Carts Vehicle Motorcycle

Product Description

Lithium Iron Phosphate Battery Packs for Robotics

Parameter

Cell type: 26700/3.2V/4Ah

Battery specifications: 26700-16S6P/48V/20Ah

Nominal voltage: 48V

Nominal capacity: 24Ah

Charging voltage: 58.4V

Charging current: ≤10A

Discharge current: 20A

Instant discharge current: 50A

Discharge cut-off voltage: 40V

Finished internal resistance: ≤200mΩ

Battery weight: 15kg

Product size: 300*237*165mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 60℃

Temperature protection: 65℃±5℃

Battery case: cold-rolled plate + powder case grade

Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, 485 communication and so on

Application: Wide range of applications, industrial machinery and equipment, AGV car and so on

Features

Communication function: LCD screen display voltage and power, easy to display power;

Terminal output: the terminal output interface is used to increase conductive reliability;

Data communication management: The use of Seiko IC+TI charger management chip, accurate data transmission, accurate temperature control, to minimize security risks.

Battery pack safety, special handle, good low temperature performance, long cycle life;

High cycle life of battery pack, in line with low carbon, energy saving, environmental protection value concept;

Production Details

From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
