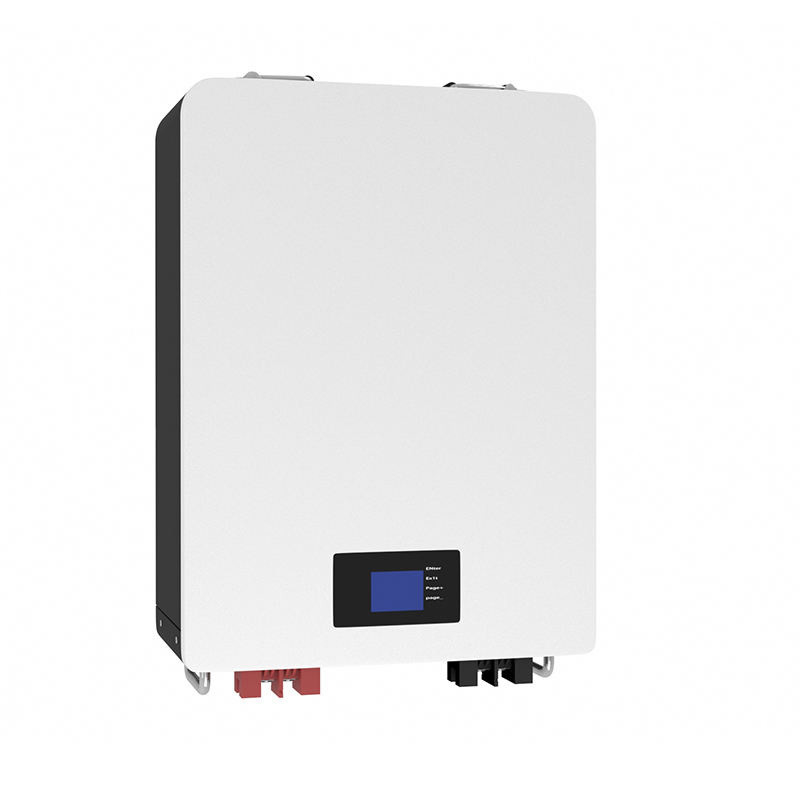

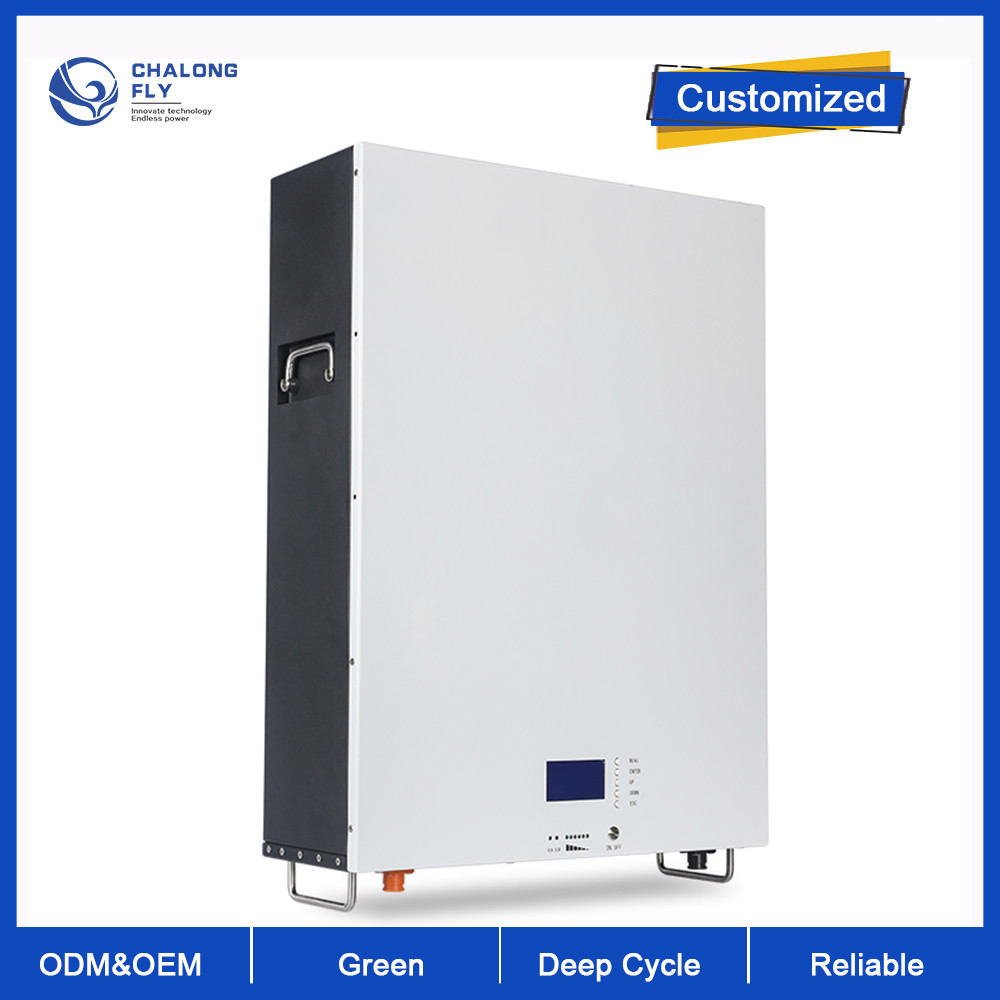

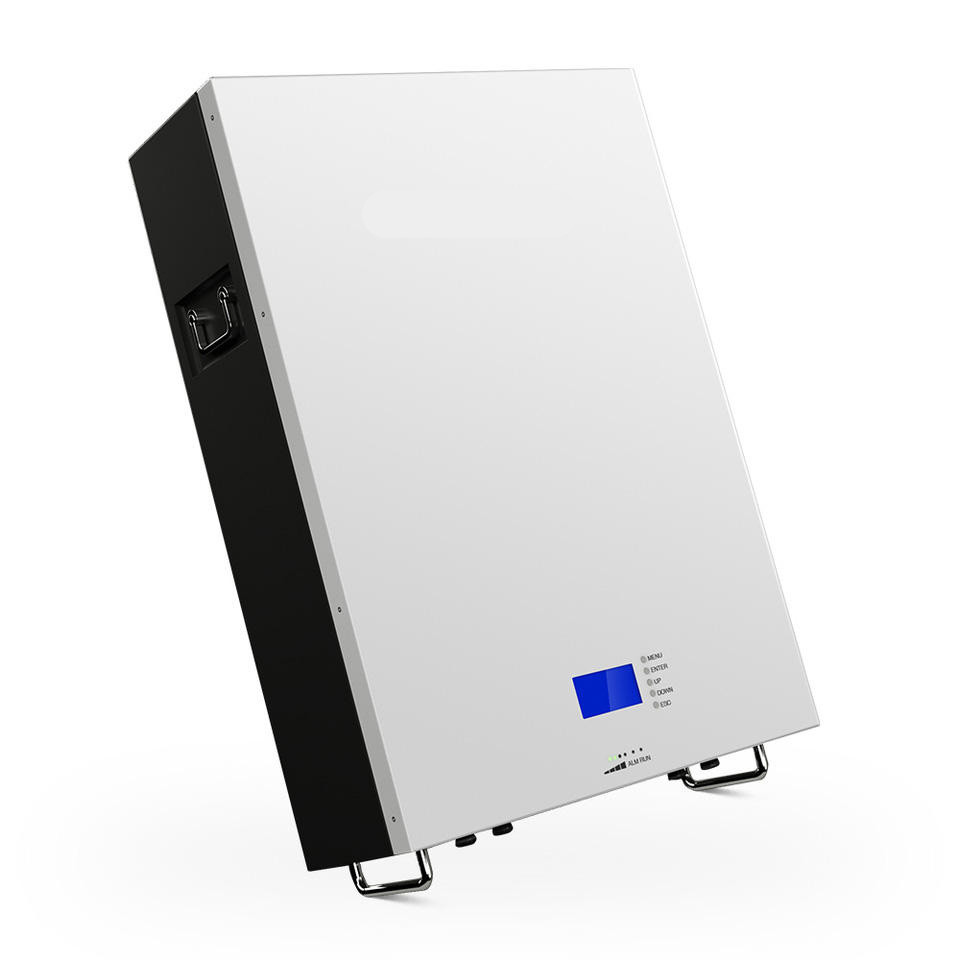

LiFePO4 Lithium Battery Powerwall Off Grid Home Solar 48V 100AH 200AH 5KW 10KW

Minimum Order Quantity : 1-1000 units Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: ISO9001, UN38.3, CE, CB,MSDS Model Number: CLTF-240

Detail Information

Rated Capacity:: 100Ah/200Ah/300Ah Nominal Voltage: 51.2V
Energy: 5120Wh Weight: 60KG
Battery Type: Li-ion (LiFePO4) AC Input Frequency: 50 / 60Hz
OEM/ODM: Available Capacity: 2.56kWh*N(N=3-8) Or 5.12Kwh*N(N=3~6)
Highlight:

Solar Lithium Battery 48V 100AH

,

Powerwall Off Grid Lithium Battery

Product Description

LiFePO4 Lithium Battery Powerwall Off Grid Home Solar 48V 100AH 200AH 5KW 10KW 0

Custom 48V 100AH 200AH Home Power Energy Storage Lifepo4 Lithium Battery Pack

If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.



Chalong Fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.

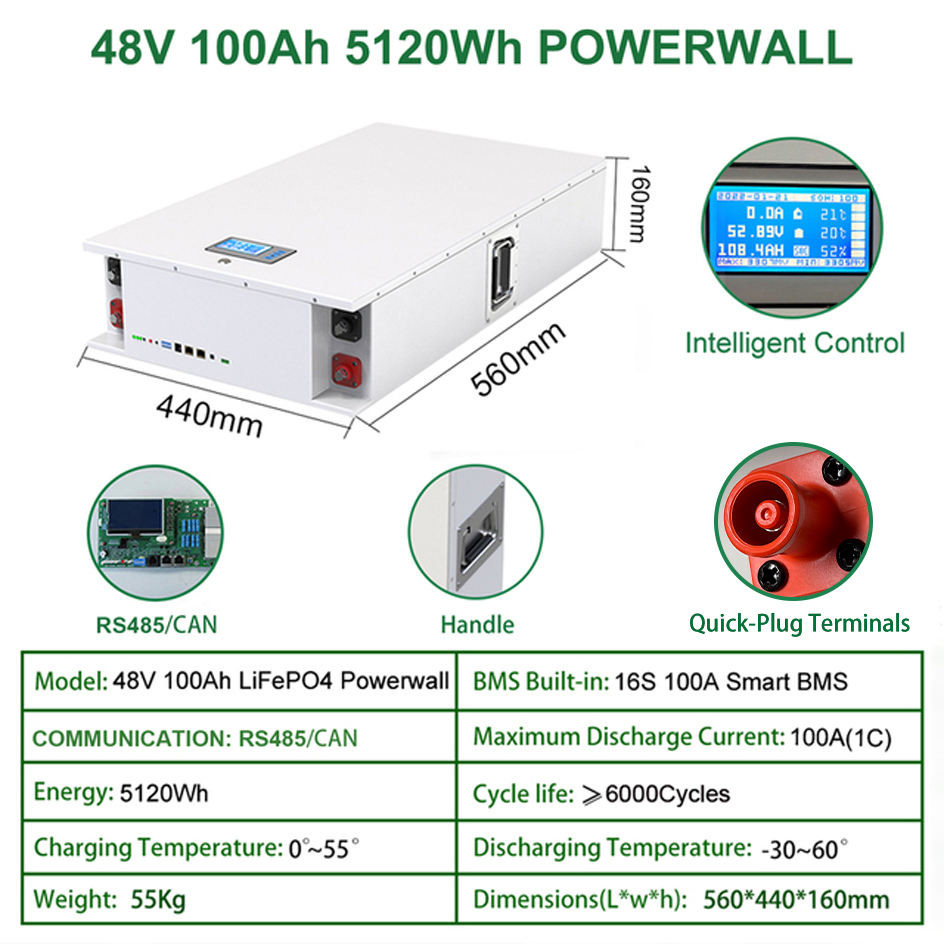

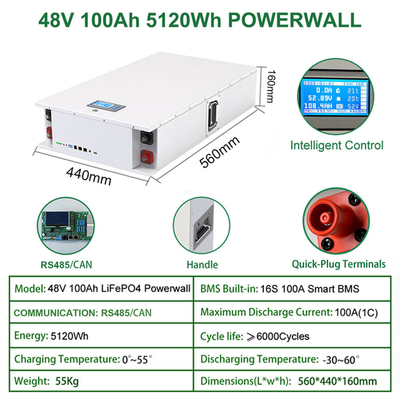

MODEL CLTF-0232
ELECTRICAL SPECIFICATIONS
Cell Type - Chemistry Prismatic- LiFePO4
Rated Capacity 100Ah
Rated Voltage 51.2V
Energy 5120Wh
Resistance 30mΩ
Self Discharge <1.5% per month
Maximum Modules in Parallel 12
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H) 720*445*220mm
Weight 60Kg
Enclosure Protection IP65
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage 48V
Max Continuous Discharging Current 100A
Peak Discharge Current 150A for 3 seconds
Recommended Discharge Current 50A
CHARGE SPECIFICATIONS
Charging Limited Voltage 57.6V
Max Charging Current 50A
Recommended Charge Current 25A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range 0~45℃
Discharge Temperature Range -20~60℃
Recommended Operating Temperature 15~35℃

Storage Temperature & Humidity Range

(Less than 1 month)

-20~35℃, 45~75%RH

Storage Temperature & Humidity Range

(Less than 3 months)

-10~35℃, 45~75%RH
Recommended Storage Temperature & Humidity Range 15~35℃, 45~75%RH



LiFePO4 Lithium Battery Powerwall Off Grid Home Solar 48V 100AH 200AH 5KW 10KW 1

LiFePO4 Lithium Battery Powerwall Off Grid Home Solar 48V 100AH 200AH 5KW 10KW 2LiFePO4 Lithium Battery Powerwall Off Grid Home Solar 48V 100AH 200AH 5KW 10KW 3LiFePO4 Lithium Battery Powerwall Off Grid Home Solar 48V 100AH 200AH 5KW 10KW 4

Features:

1. Most safe LFP battery technology, no cobalt.

2. Long lifetimes - >5000 cycles @85% DOD.

3. Easily expandable 5kWh Standard modules - up to 60kWh.

4. Standard module capacity can be customized.

5. Self-engineered BMS with cell level monitor.

6. Short circuit/ Over current/Over voltage/Over temperature protection.

7. Bluetooth APP available on request to see the status of the battery.

8. Strong steel case with white color(optional).

9. Canbus communication access.

10. IP65 waterproof.

11. OEM logo available.



LiFePO4 Lithium Battery Powerwall Off Grid Home Solar 48V 100AH 200AH 5KW 10KW 5

LiFePO4 Lithium Battery Powerwall Off Grid Home Solar 48V 100AH 200AH 5KW 10KW 6

LiFePo4 锂电池 48V 100AH 200AH 磷酸铁锂电池 OEM ODM 家用备用太阳能储能系统 8

磷酸铁锂锂电池 12V 36V 72V 20AH 30AH 50AH 80AH OEM ODM 锂离子可充电 LFP 电动滑板车电池 7

LiFePO4锂电池OEM ODM 36V 60V 72V Lifepo4电池组40AH 50AH 80AH电动滑板车电池8

LiFePO4锂电池OEM ODM 36V 60V 72V Lifepo4电池组40AH 50AH 80AH电动滑板车电池9

LiFePO4锂电池OEM ODM 36V 60V 72V Lifepo4电池组40AH 50AH 80AH电动滑板车电池10

LiFePO4锂电池OEM ODM 36V 60V 72V Lifepo4电池组40AH 50AH 80AH电动滑板车电池11

磷酸铁锂锂电池OEM ODM 36V 60V 72V Lifepo4电池组 40AH 50AH 80AH 电动滑板车电池 12 磷酸铁锂

锂电池OEM ODM 36V 60V 72V Lifepo4电池组 40AH 50AH 80AH 电动滑板车电池 13

Product Packaging

To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:

1) Inner box - Carton - Pallet- Container
2) Packaging also can be made by customers requirements

LiFePo4 Lithium Battery 48V 100AH 200AH Home Backup Lithium Ion Battery Pack OEM ODM 10KW Solar Energy Storage Battery 12LiFePo4 锂电池 48V 100AH 200AH 家用备用锂离子电池组 OEM ODM 10KW 太阳能储能电池 13

LiFePO4锂电池OEM ODM 36V 60V 72V Lifepo4电池组40AH 50AH 80AH电动滑板车电池14
