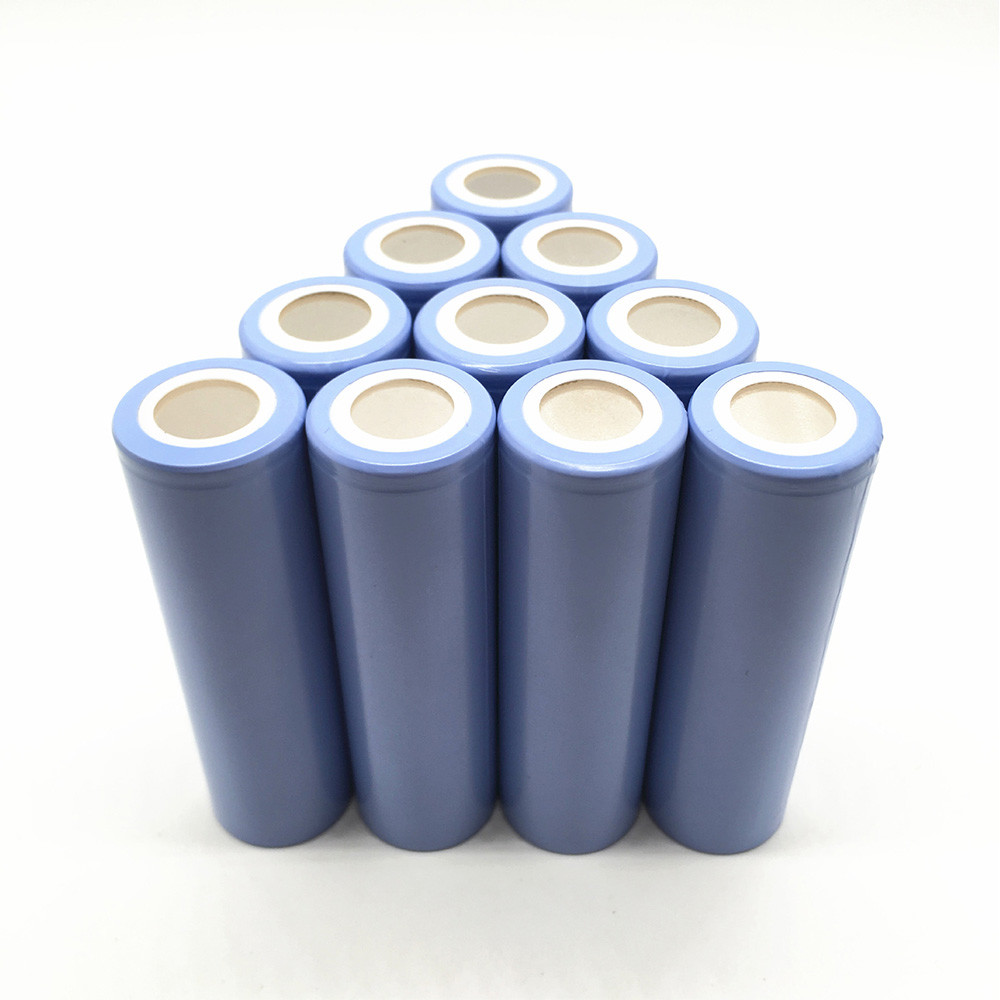

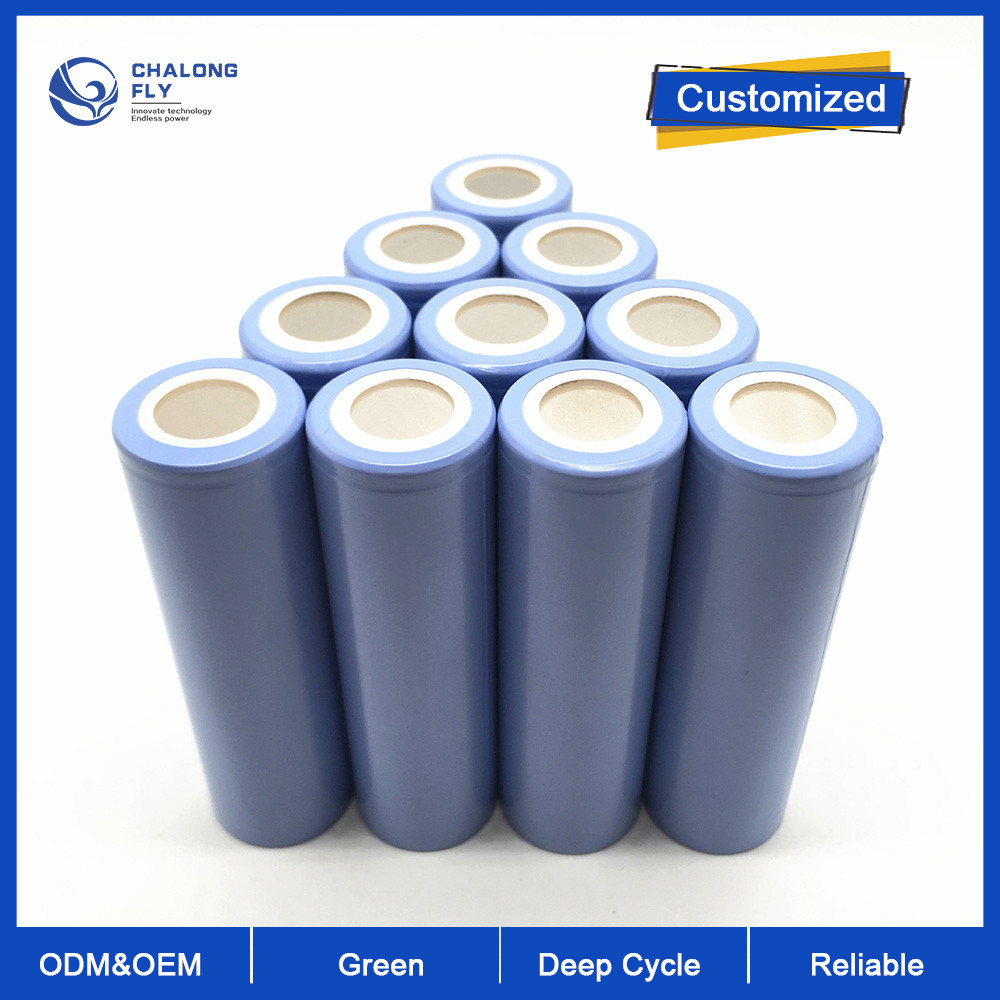

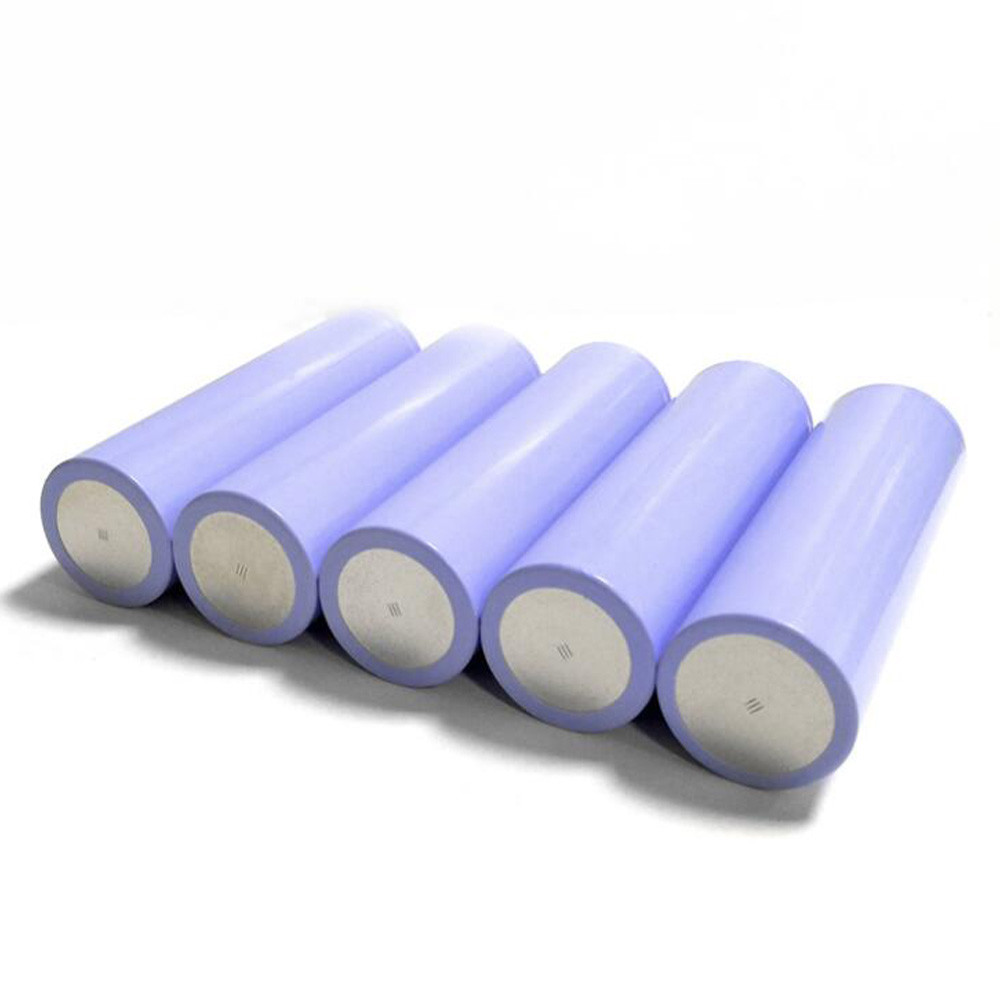

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs

Minimum Order Quantity : 100 units Price : Negotiable
Packaging Details : Wooden case and Carton boxes Delivery Time : 7-15 working days
Place of Origin: Hunan, China Brand Name: Chalong Fly
Certification: CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc Model Number: CLFLE200

Detail Information

Battery Type: Lithium Iron Phosphate Material: Lifepo4
Voltage:: 3.2V Capacity:: 3000mAh
Weight: 0.13kg Size:: 26*65(mm)
Charge Time: 3hours Charge Voltage: 3.65V±0.03V
Storage Temperature: -20~25℃ Working Temperature: -20~60℃
Internal Resistance: ≤40mΩ

Product Description

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs





If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.



Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.



OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 0OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 1





Product Specifications



No.

Items

Specifications

Remark

1

Nominal Capacity

3000mAh

0.2C Standard discharge

3

Nominal Voltage

3.2V

Mean Operation Voltage

4

Delivery voltage

3.2~3.3V

Within 10 days from Factory

5

Charge Voltage

3.65V±0.03V

By standard charge method

6

Standard charging method

0.2C constant current, 3.65V constant voltage, constant current charging ≤0.01C

Time about 6-7h(Ref)

7

Charge current

0.2C

600mA

0.5C

1500mA

8

Standard discharging method

0.2C constant current discharge to 2.0V

0.2c constant current discharge to 2.0v

9

Cell Internal Impedance

≤40mΩ

Internal resistance measured at AC 1KHZafter 50% charge

10

Maximum charge current

1C

3000mA

For continuous charging mod

11

Maximum discharge current

2C

6000mA

For continuous discharge mod

12

Operation Temperature and relative humidity Range

Charge

0~45℃

60±25%R.H.

When charge at a very low temperature such as blew 0℃, will get a lower capacity and reduce cycle life of the battery

Discharge

-20~60℃

60±25%R.H.

13

Storage temperature

-20~25℃

60±25%R.H.

Must charge once when storage exceed half year.

Must charge once which battery with protect circuit when storage exceed three months.



Product Applications

  • Large electric vehicles: buses, cars, classic tour buses and hybrid vehicles, etc.

  • Light electric vehicles: electric bicycle, golf cart, small flat battery car, forklift, cleaning car, electric wheelchair, etc.

  • Power tools: electric drill, electric saw, lawn mower, etc.

  • Energy storage equipment for solar energy and wind power generation

  • UPS and emergency lights, warning lights and mine lights (the best safety)

  • Small medical instruments and portable instruments, etc.



Product Features

  • Quality assurance.
  • Safety valve.
  • Long cycle life.
  • High voltage.
  • No memory effect.
  • Long service life.
  • Low self-discharge for long storage.
  • Pollution free for environmental protection.



Cell Intial Dimensions

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 2

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 3

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 4







:

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 5OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 6OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 7

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 8

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 9OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 10OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 11OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 12

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 13OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 14OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 15

OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 16OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 17OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 18OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 19OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 20OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 21OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 22OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 23OEM ODM LiFePO4 lithium battery Cells Customized 26650 3.2V 3.7V 3000mAh For Electric Scooter lithium battery packs 24



FAQ:

Q1. Are you a factory?

A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.



Q2. Do you accept OEM/ODM?

A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.



Q3. Can I have a sample order first?

A: Yes, sample order is acceptable.



Q4. How will my order be shipped?

A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.



Q5: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.



Q6. Can we sign a NDA in order for a long-term cooperation?

A: Yes, the client’s requirements is respected.



O7: Is there any warranty or After-Sale Service?

A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.



Q8. Why do you choose Chalong Fly?

A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
