OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh

Minimum Order Quantity : 10 units Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: Hunan,China Brand Name: Chalong Fly
Certification: ISO9001, UN38.3, CE, CB,MSDS Model Number: CLF-321

Detail Information

Rated Capacity:: 30Ah Nominal Voltage: 12.8V
Energy: 384Wh Size: 165*175*125*125mm
Highlight:

384Wh Solar Battery Storage System

,

Lithium Battery ​12V 30Ah

Product Description

OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Lithium Solar Battery Storage System LiFePO4 384Wh Rechargeable



If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.



Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.



Specifications:

Nominal Voltage 12.8V
Nominal Capacity 30Ah
Energy 384Wh
Internal Resistance 70≤mΩ
Cycle Life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity
Months Self Discharge ≤3.5% per month at 25℃
Charge Voltage 14.6±0.2V
Charge Mode(CC/CV)

At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and

then,changed continuously with constant voltage of 14.6V until the current was not

more than 0.02C5A.

Charger Current 6A
Max.Charge Current 15A
Discharge Current 6A
Max. Continuous Current 30A
Max.Pulse Current 60A(<3S)
Disxcharge Cut-off Voltage 10.0V
Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55
Cell & Method IFR32700 N60,4S5P
Plastic Case ABS
Dimension(L*W*H*TH) 165*175*125*125mm
Weight 3.9kg
Terminal

M5



Features:

1. Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

2. Built-in automatic protection for over-charge, over discharge,over current and over temperature.
3. Maintenance free.
4. Internal cell balancing.
5. Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
6. Can be charged using most standard lead-acid charges (set).

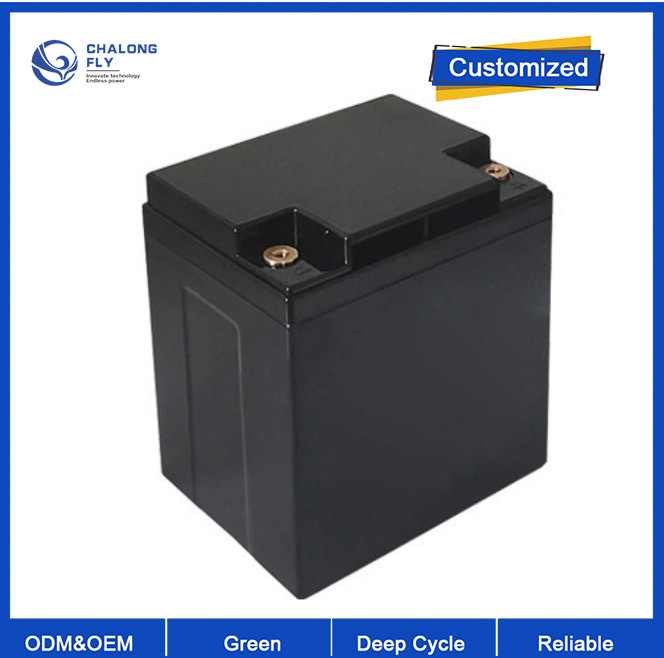

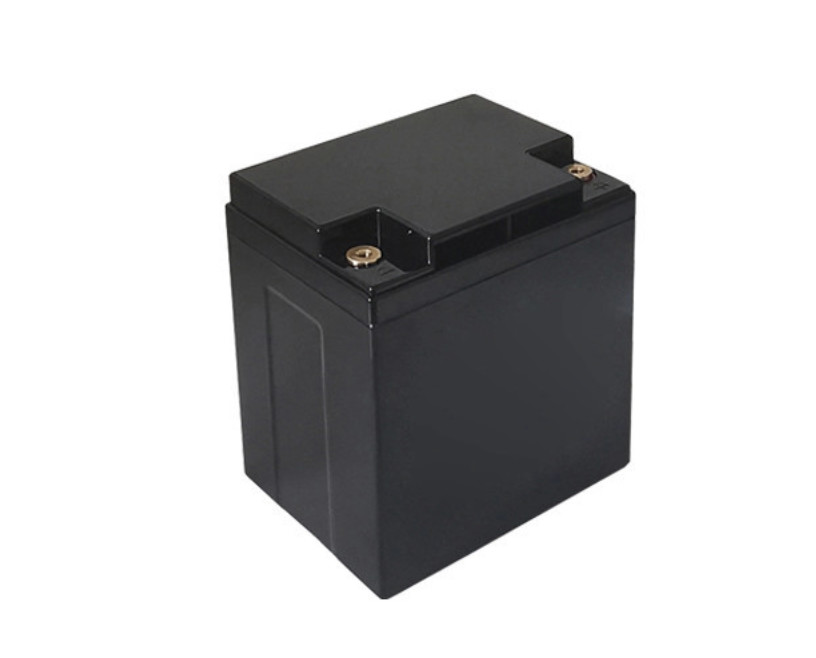

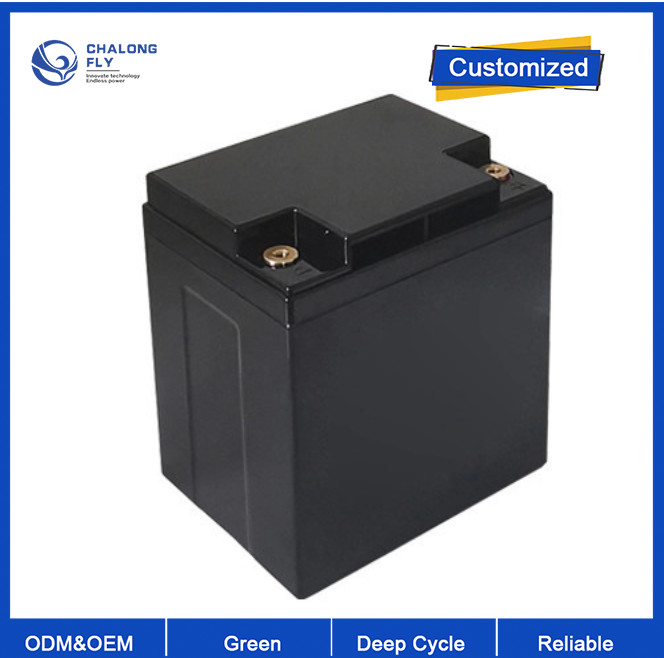

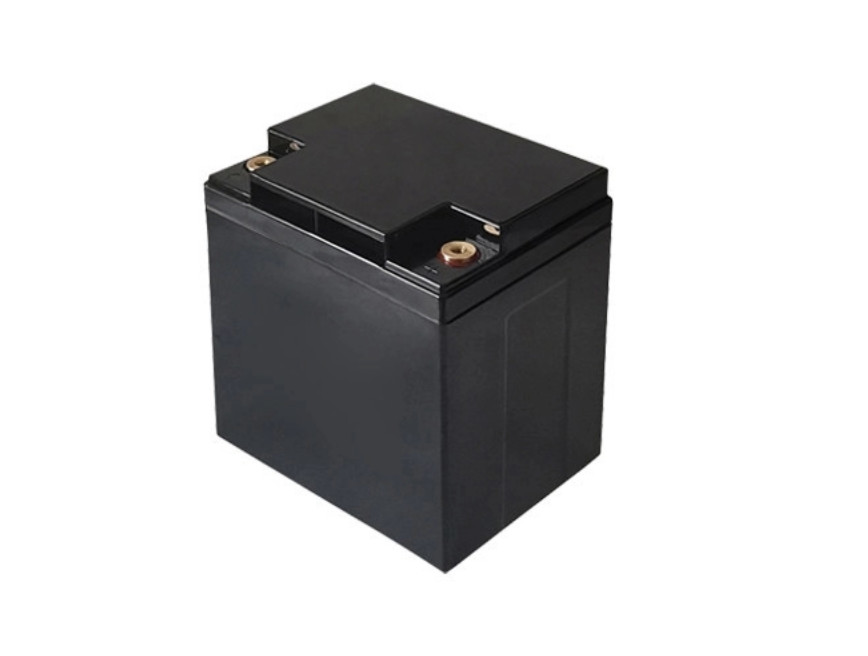

Design picture:

12V 30Ah Lithium Solar Battery Storage System Lifepo4 384Wh Rechargeable 0



OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 1OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 2OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 3

OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 4OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 5OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 6OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 7OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 8OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 9OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 10OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 11OEM ODM LiFePO4 Lithium Battery ​12V 30Ah Solar Battery Storage System 384Wh 12



FAQ:

Q1. Are you a factory?

A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.



Q2. Do you accept OEM/ODM?

A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.



Q3. Can I have a sample order first?

A: Yes, sample order is acceptable.



Q4. How will my order be shipped?

A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.



Q5: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.



Q6. Can we sign a NDA in order for a long-term cooperation?

A: Yes, the client’s requirements is respected.



O7: Is there any warranty or After-Sale Service?

A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.



Q8. Why do you choose Chalong Fly?

A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
