Lithium Battery 3.1V 50mah Sodium-ion Lithium Battery Lithium Rechargeable For 100KWH 150KWH Energy Storage System
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsApp : +8618975107916
Minimum Order Quantity : | 10-1000 units | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
Payment Terms : | T/T | Supply Ability : | 1000 units per month |
Place of Origin: | Hunan,China | Brand Name: | CLTF |
---|---|---|---|
Certification: | MSDS,UN38.3,CE,FCC,ROHS | Model Number: | CLFC-120 |
Detail Information |
|||
Nominal Voltage: | 3.7V-4.2V | Application: | Toys, Power Tools, Home Appliances, Consumer Electronics |
---|---|---|---|
Battery Type: | 21700 Rechargeable Li-ion | Certification: | MSDS,UN38.3,CE,FCC,ROHS |
The Discharge Rate: | Customized 3C 5C 10C | OEM/ODM: | Available |
Storage Temperature: | 0-45°C | Capacity: | 2000mah-3600mah |
Cycle Life: | ≥1000 Times | ||
Highlight: | 3C Rate 21700 Battery Cell,Lithium 21700 Battery Cell 3.7V |
Product Description
Please contact us if you don't see any products that match your requirements. We may not have it listed on our website yet.
Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
INR 21700 40T Battery Specification Sheet | |
Item | Specification |
Standard Discharge Capacity |
Min. 4,000mAh - Charge: 0.5C(2A), 4.20V, 0.05C(200mA) cut-off - Discharge: 0.2C(800mA), 2.5V cut-off |
Rated discharge capacity |
Min. 3,900 mAh - Charge:1.5C(6A), 4.20V, 0.025C(100mA)cut-off - Discharge: 10A, 2.5V cut-off |
Nominal voltage | 3.6V |
Standard charge | CCCV, 2A, 4.20 V, 200mA cut-off |
Rated charge | CCCV, 6A, 4.20 V, 100mA cut-off |
Charging time | Standard charge : 180min / 200mA cut-off Rated charge: 70min / 100mA cut-off |
Max. continuous discharge | (Surface temperature) 35A(Without temperature cut) 45A(With 80℃ temperature cut) |
Discharge cut-off voltage | 2.5V (End of discharge) |
Cycle life |
Capacity ≥ 2,400mAh/ after 250cycles - Charge : 6A, 4.20V, CCCV 100mA cut-off |
Retention characteristics |
Capacity recovery(after the storage) ≥ 3,510 mAh - Charge : 6A, 4.20V, CCCV 100mA cut-off |
Cell weight | 70.0g max |
Cell dimension | Height: Max 70.30mm Diameter: Max 21.22mm |

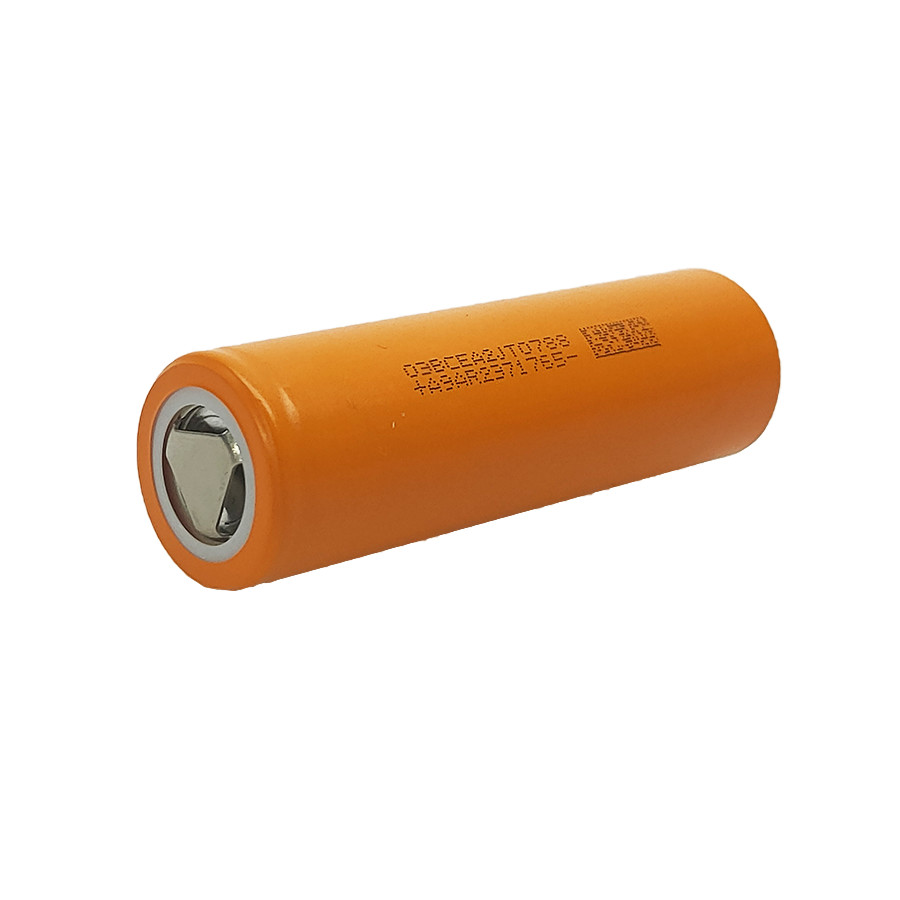

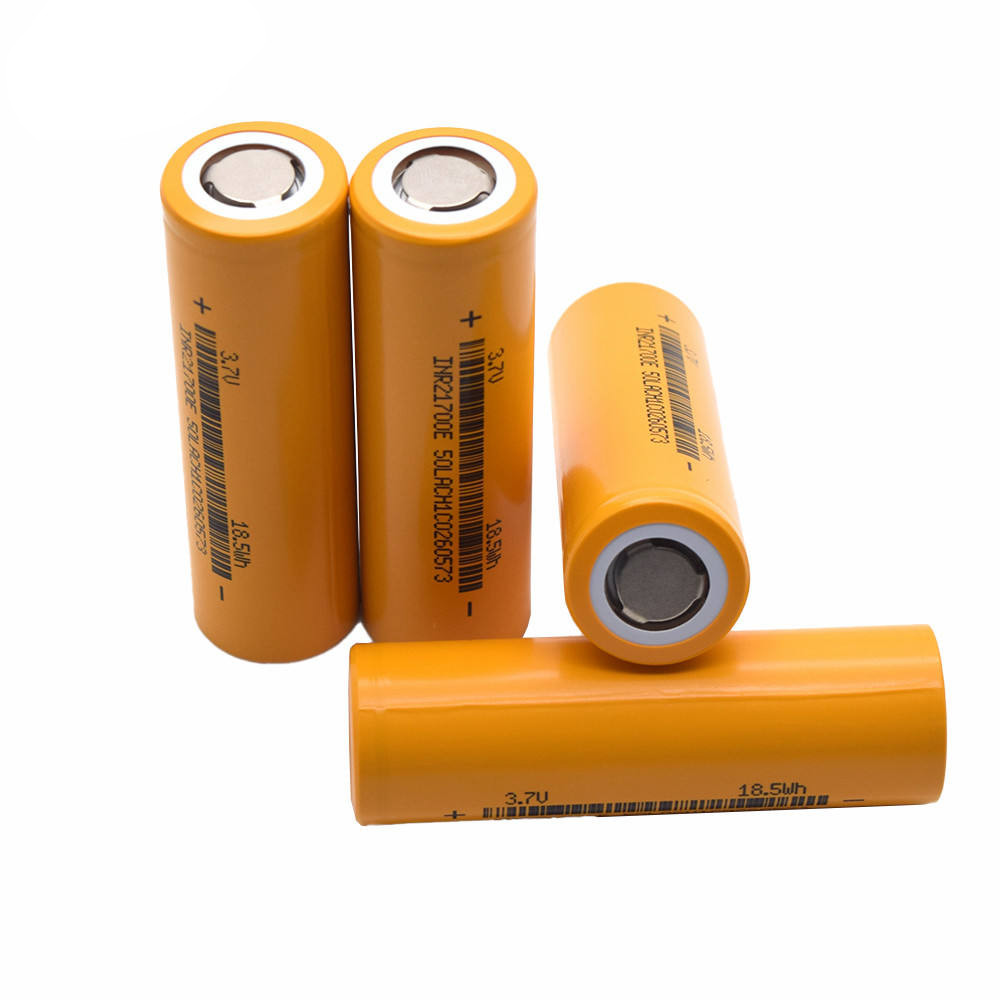

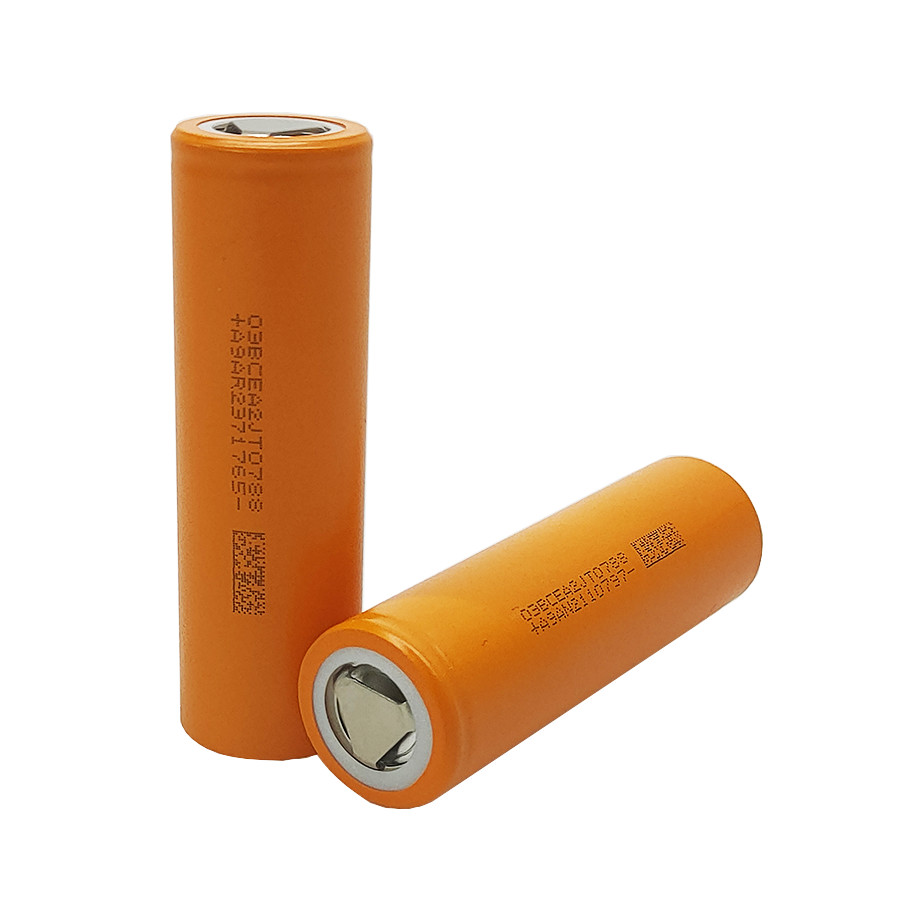

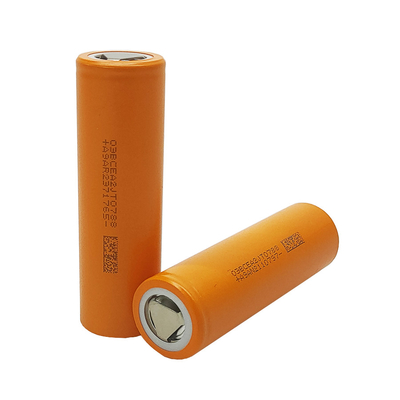

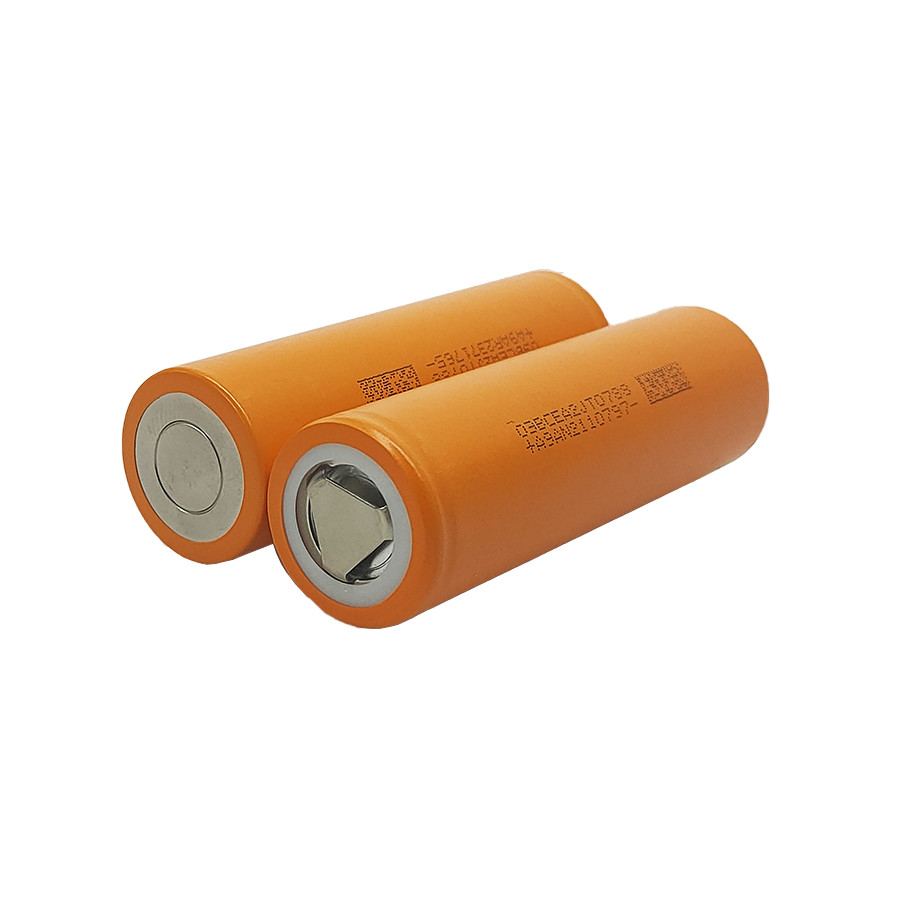

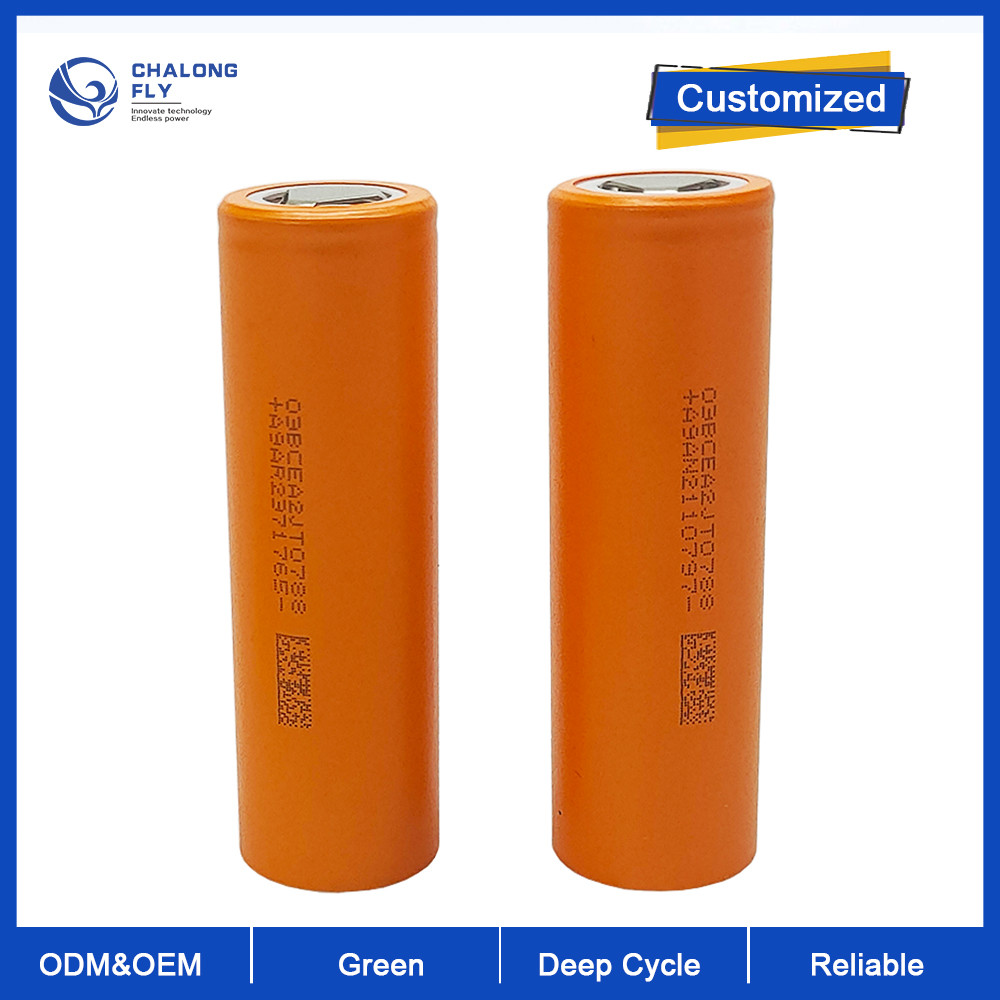

Product Show:
