Rechargeable Deep Cycle Lifepo4 Battery Pack 12V 150Ah For Home Solar Storage

Minimum Order Quantity : 50 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE/IEC/RoHS/UN38.3/FCC Model Number: CLFC-108

Detail Information

Nominal Voltage: 12.8Volts Nominal Capacity: 150Ah
Energe: 1920Wh Charge Current: 75A
Cycle Life: 2000 Cycles Application: BOATS, Golf Carts, Electric Vehicles, Solar Energy Storage System
Certification: CE/IEC/RoHS/UN38.3/FCC OEM/ODM: Avaiable
Weight: 17.5kg Casing: Plastic
High Light:

Deep Cycle Lifepo4 Battery Pack 12V

,

Rechargeable Lifepo4 Battery Pack 150Ah

Product Description

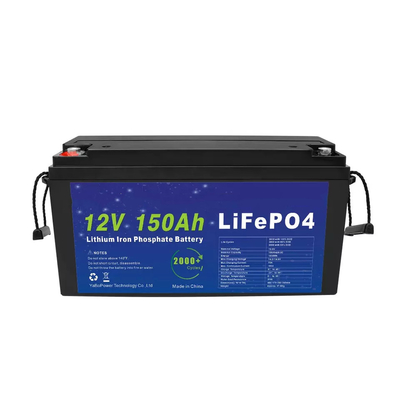

Large Capacity 12V 150Ah Rechargeable Deep Cycle Lifepo4 Battery Pack For Home Solar Storage

Electrical
Characteristics
Nominal Voltage
12.8V
Nominal Capacity
150Ah@0.2C
Energy
1920Wh
Internal Resistance
≤40mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V
Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
Charging Current
75A
Max.Charging Current
100A
Standard Discharging
Discharging Current
75A
Max. Continuous Current
100A
Max.Pulse Current
200A(<3S)
Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
Cell & Format
IFR32700 N60,4S25P
Casing
Plastic
Dimension(L*W*H*TH)
485*170*240*240
Weight
Approx. 17.5Kg
Terminal
M8



Rechargeable Deep Cycle Lifepo4 Battery Pack 12V 150Ah For Home Solar Storage 0



Product Show:



Rechargeable Deep Cycle Lifepo4 Battery Pack 12V 150Ah For Home Solar Storage 1Rechargeable Deep Cycle Lifepo4 Battery Pack 12V 150Ah For Home Solar Storage 2Rechargeable Deep Cycle Lifepo4 Battery Pack 12V 150Ah For Home Solar Storage 3Rechargeable Deep Cycle Lifepo4 Battery Pack 12V 150Ah For Home Solar Storage 4





Feature



◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.



◆ Built-in automatic protection for over-charge, over-discharge, over current, and over temperature.


◆ Free of maintenance.


◆ Internal cell balancing.


◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.


◆ Can be charged using most standard lead-acid charges (set).


◆ Wider temperature range:-20℃~60℃.


◆ Support for Series application expansion (up to 51.2V) and two in parallels.





Product Application:

Products are widely used in hybrid wind off-grid power stations, household energy storage power generation systems, monitoring systems, equipment, street lamp, outdoors, electric cars, electric sightseeing cars, street cleaners, sanitation trucks, the uninterrupted power source(UPS), communication base station, and emergency EPS system, etc. The company has advanced manufacturing equipment, manufacturing technique, and detection technology, especially with the manufacturing technology of nano-silicon colloid electrolytes.



Rechargeable Deep Cycle Lifepo4 Battery Pack 12V 150Ah For Home Solar Storage 5





FAQ:



1, How much does shipping cost?

The quotation is FOB/CIF/EXW in our company.



2, What is the price of your products?

The battery has different prices according to different specifications and capacities. If you have any questions, please consult the salesmen.



3, Where the product can be used?

Company products can be widely used in a variety of conditions, you can use our battery if you need electricity. (Usage: Home power system, Power station system, Uninterruptible power supply, Emergency power supply, Solar Street light, monitoring system, automation equipment, Electric-vehicle, etc.) If you want to know more detailed information, please contact the salesmen.



4, What are the advantages of your company's products?

The advantages of batteries are low-temperature resistance, heavy load discharge performance, long operating life, and good duration performance.
