LiFePO4 Lithium Battery Custom 48V 60V 72V 30AH 60AH 120AH Lithium Ion Battery Pack For E-Scooter/Wheelchair/Motorcycle
LiFePO4 Lithium Battery Custom 48V 60V 72V 30AH 60AH 120AH Lithium Ion Battery Pack For E-Scooter/Wheelchair/Motorcycle LiFePO4 Lithium Battery Custom 48V 60V 72V 30AH 60AH 120AH Lithium Ion Battery Pack For E-Scooter/Wheelchair/Motorcycle
Contact Now

LiFePO4 Lithium Battery Custom 48V 60V 72V 30AH 60AH 120AH Lithium Ion Battery Pack For E-Scooter/Wheelchair/Motorcycle

Minimum Order Quantity : 10-1000 units Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE/ROHS/UL/UN38.3/CB/MSDS Model Number: CLFC-101

Detail Information
Voltage: 24V/36V/48V/60V/72V/96V Battery Type: LiFePO4 Lithium Battery
Capacity: 20AH-200AH Application: Toys, Power Tools, Home Appliances, Golf Carts, BOATS, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Certification: CE/ROHS/MSDS/UN38.3 OEM/ODM: Available
Usage: UPS System Battery
Highlight:

12V 20Ah Deep Cycle Batteries

,

Sealed Maintenance Free Lead Acid Batteries

Product Description

CUSTOM 60V 72V 20AH 30AH 45AH 50AH 65AH 80AH Lifepo4 Lithium Electric Scooter Battery Pack

If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.

Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.

Function Parameter
Norminal Battery Energy3900wh
Norminal Capacity65Ah
Norminal Voltage60V
Internal Resistance≤22mΩ
Cycle Life>6000
Months Self Discharge<3%
Charge Data
DC Normal Charge Voltage54.75±1Vdc
Charge Mode0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
Recommended Charger Current≤50A
Allowed Max. Charge Current50Adc
Charge Cut-off Voltage54.75±1Vdc
Discharge Data
Continuous Discharge Current50A
Allowed Max. discharge current100A (option:100Adc)
Rang of DC discharge voltage37.5V-54.75Vdc
Working Condition
Charge Temperature0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
Enclosure Protection LevelIP20
Mechanical Data
Cell & Method48V100Ah, Prismatic
Shell materialIron
Features:
  • Lighter weight, smaller size.
  • High temperature performance.
  • Extremely safe, no explosion, no fire under collision.
  • Strong over-discharge resistance and charge retention.
  • Strong charging acceptance and quick-charging capability.
  • Maintenance-free and no acid or water for maintenance in usage.
  • Large capability and long life for all high power output applications.
  • Environmentally friendly non-toxic, non-contaminating, no rare metal.
  • Low self-discharge and good discharge performance at low temperature.
  • Excellent large current discharge performance especially in startup and climbing.

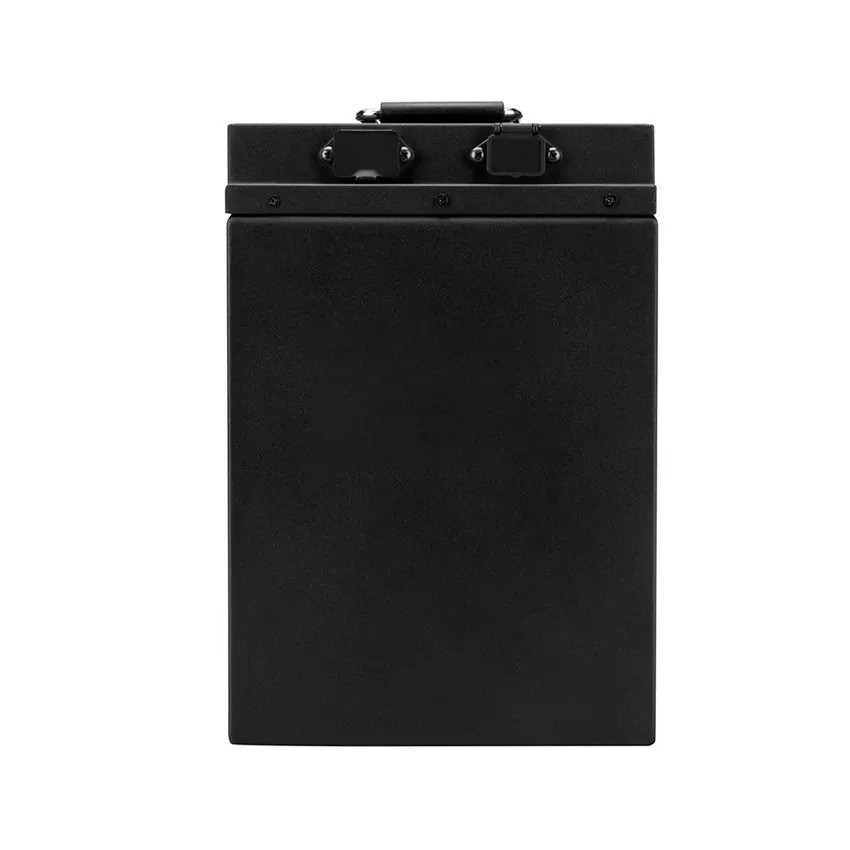

LiFePO4 Lithium Battery Custom 48V 60V 72V 30AH 60AH 120AH Lithium Ion Battery Pack For E-Scooter/Wheelchair/Motorcycle 0

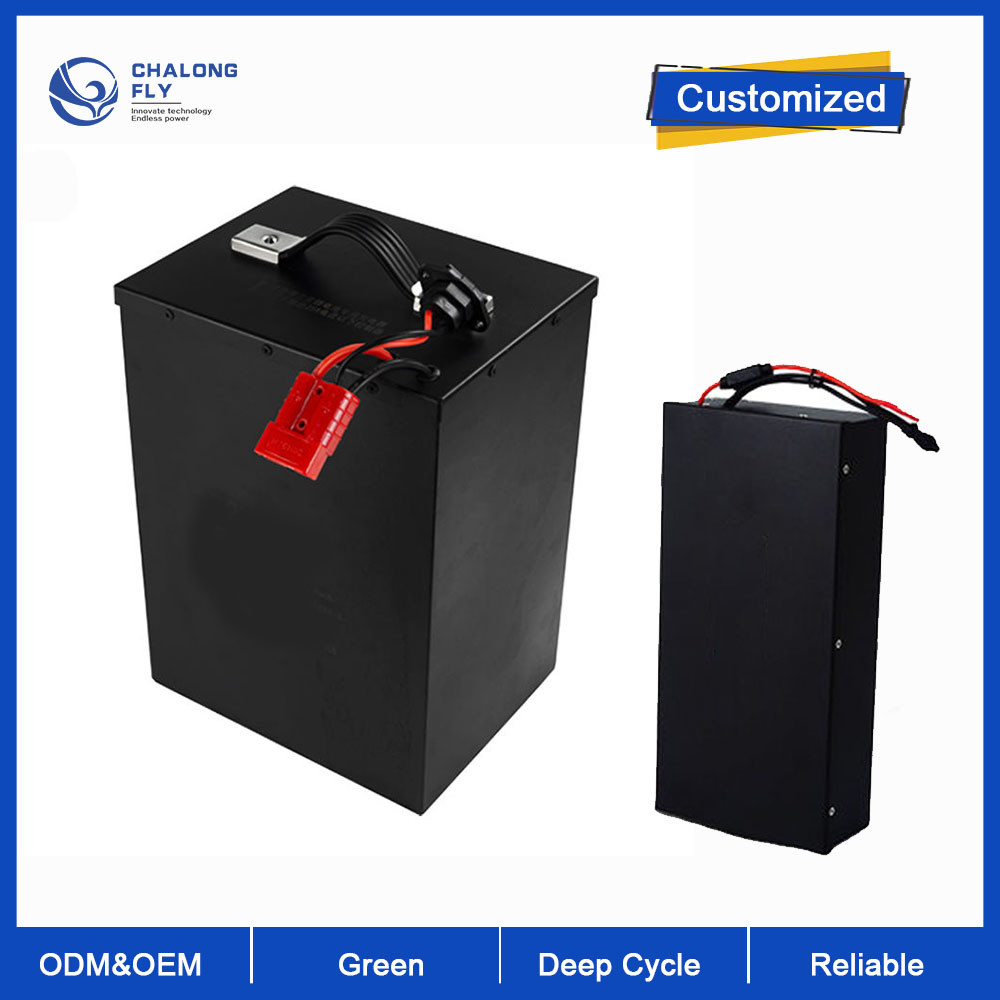

LiFePO4 Lithium Battery Custom 48V 60V 72V 30AH 60AH 120AH Lithium Ion Battery Pack For E-Scooter/Wheelchair/Motorcycle 1

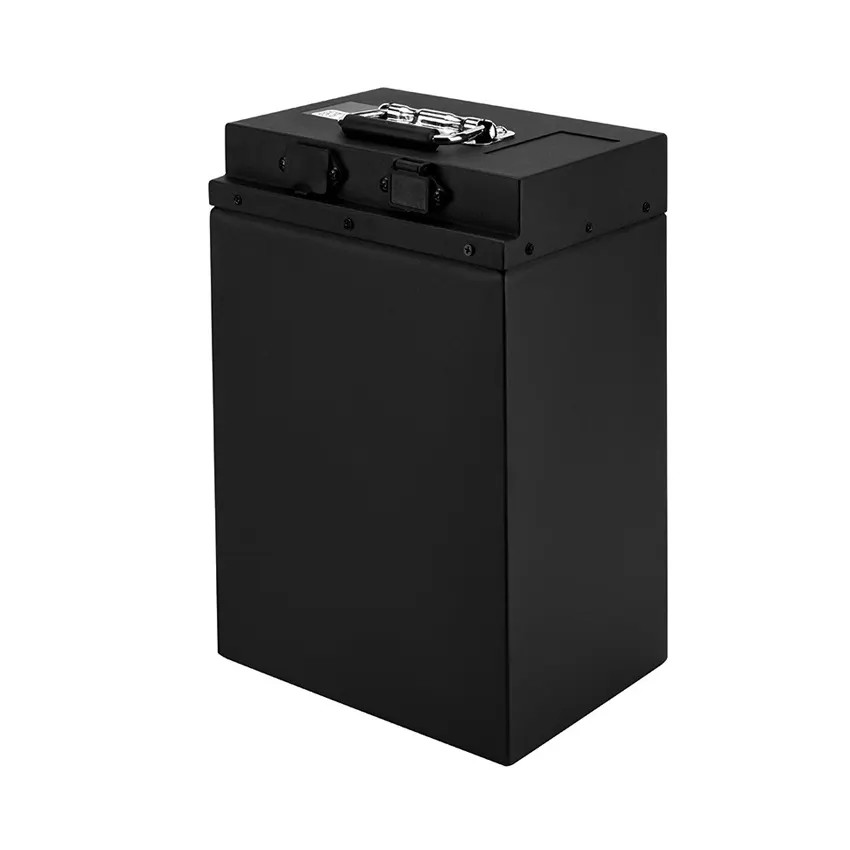

LiFePO4 Lithium Battery Custom 48V 60V 72V 30AH 60AH 120AH Lithium Ion Battery Pack For E-Scooter/Wheelchair/Motorcycle 2

FAQ
Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable
Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.
Q3. Can I have a sample order first?
A: Yes, sample order is acceptable
Q4. How will my order be shipped?
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline andsea shipping
Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Q6. Can we sign a NDA in order for a long-term cooperation?
A: Yes, the client's requirements is respected.
O7: Is there any warranty or After-Sale Service?
A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.
Q8. Why do you choose Chalong Fly?
A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, andhave developed many public technology solutions.
