Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLF
Certification: CE Model Number: CLF-R48100

Detail Information

Voltage: 48V Capacity: 100Ah
Cell Type: LiFePo4 Load Power (W): 5kw, 2.5kw
System Type: Off-Grid Solar System Mounting Type: Rack Mounting
Maximum Discharging Current: 1C BMS Integrated: Yes
Working Temperature Range: 0℃ - 45℃ Lifespan: 6000 Cycles
Application: Residential Storage System, Cabinet Storage System,wind Power System,
Highlight:

48v Ground Mounted Lithium Ion Battery

,

3.2V LiFePO4 Lithium Ion Battery

Product Description

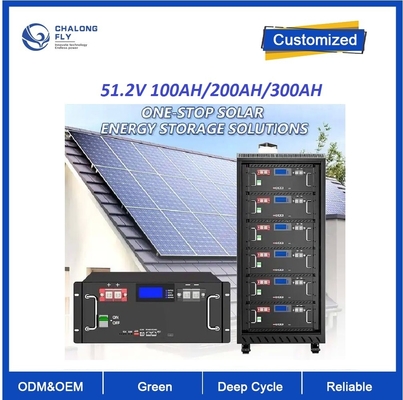

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 0

 51.2v 100ah LiFePO4 Residential Home Energy Storage System ESS Rack Mounted Lithium Ion Battery



CLF-R48100 is a 48V 100Ah lifepo4 battery pack, design for Home Energy Storage System expendable solution

CLF-R48100 battery with BMS is a flexible combination solution. Add more units can increase the voltage or capacity. This can meet different application requirements. Widely used in microgrid energy storage, photovoltaic energy storage, computer data ROM stand-by power, UPS, etc.

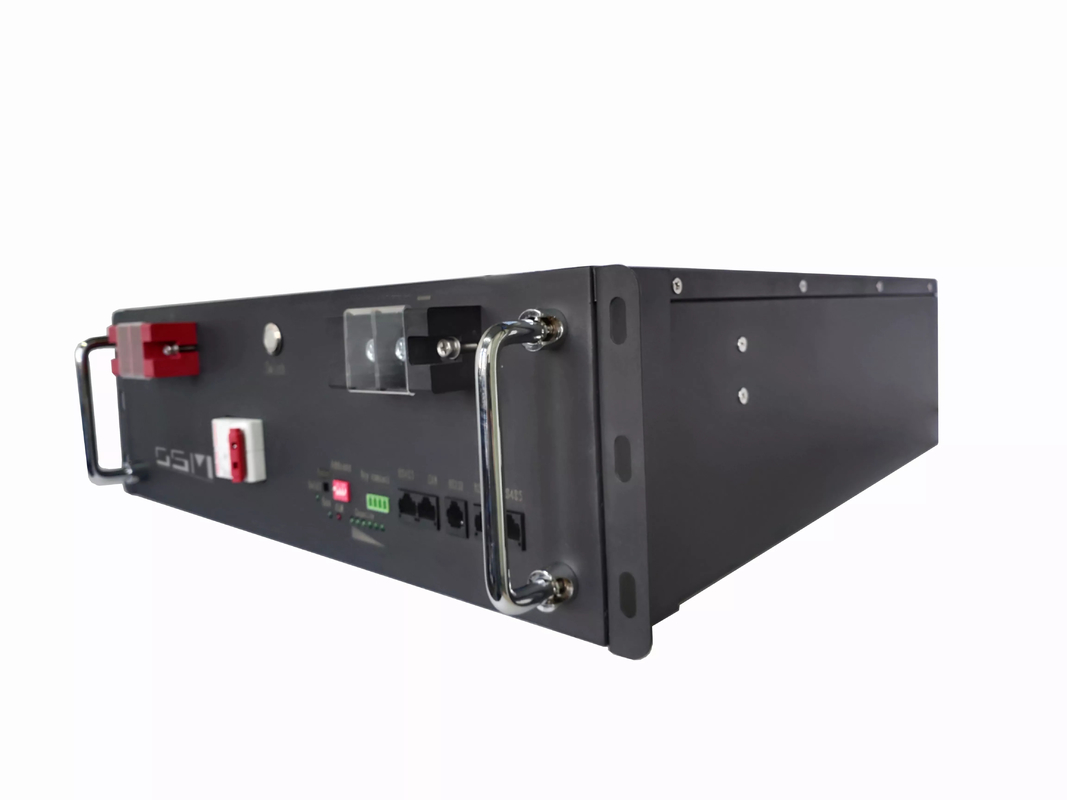

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 1

Specification:

Item 19’ Rack Battery Pack Description
Product Name CLF-R4850 CLF-R48100 CLF-R48150
Ah Capacity 51.2V 50Ah 51.2V 100Ah 51.2V 150Ah
Energy Capacity 2.56kWh 5.12kWh 7.68kWh
Cell Type 3.2V LiFePO4 prismatic cells
Cell Number 16 cells 32 cells 48 cells
Cell Capacity 50Ah
Cell Connection 16S 2P16S 3P16S
Typical Voltage 51.2VDC
Working Voltage Range 44.8V-57.6V
Dynamic voltage difference between cells ≤50mv
Maximum Discharging Current 1C
Maximum Charging Current 1C
BMS Integrated Yes
BMS Communication CAN, RS485, RS232
BMS Active Equalization Yes
SOC Range 5% - 100%
Usable Capacity 2.4kWh 4.8kWh 7.2kWh
Lifespan 5000 cycles
Warranty 9MWh per kWh BTT or 5 years, depends on which one comes sooner
Working Temperature Range Charging, 0℃ - 45℃. Discharging, -10℃ - 45℃
Storage Temperature Range -20℃ - 45℃
Power Connection IP67 push and plug connector

Self-consumption

25℃ 40%SOC

2% per month
Dimensions

3.5U

300x150x428mm

3.5U

483x160x428mm

4U

620x210x383mm

Weight 24KG 46KG 73KG



Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 2

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 3



48v rack battery

48v 100ah battery is made of prismatic lithium iron phosphate cells. This cell is widely apply to home energy storage system. This 48v 100ah batteries support to expand capacity in the same voltage platform through multiple cabinets in parallel, applied to microgrid energy storage, photovoltaic energy storage. A customized battery management system (BMS) adopts real-time data acquisition, real-time data analysis. It has the monitoring and controlling functions, such as detection, early warning, alarm, automotive power-function and etc., as to ensure the safe and reliable operation of the system. Besides the standard low voltage energy storage system. This same rack mount battery could be customized as hybrid solar systems .

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 4



About Home Solar Energy storage system

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 5

What is Home Solar Energy storage system?

With the increased use of solar power,solar batteries are more popular with homeowners who want to offset electricity costs and
those living or camping off-grid. A whole home solar energy storage system, comes with solar panel, solar controller, inverter and home battery.
Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 6

Residential Lithium storage battery

A home battery takes energy independence to a new level. Not only can use stored solar energy during the night to save electric
bills, but also during power outages as backup battery to protect and power user's home without relying on the electric utility.
Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 7

Inverter & Battery operating Modes

1) Grid-tie mode: using solar energy directly. 2) Hybrid mode: Stores excess solar energy during the day to be used in the evening.
3) Backup mode: Power home while a grid outage.
4) Off-grid mode: use excess solar to charge the battery and power the loads.

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 8
Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 9

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 10

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 11Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 12

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 13

Customized Home Residential Industrial Energy System ESS Rack Mounted LiFePO4 Lithium Ion Battery 48v 100ah 3.2V ESS 14





FAQs:


Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!


Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed


Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.


Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.


Contact us for more informations!
