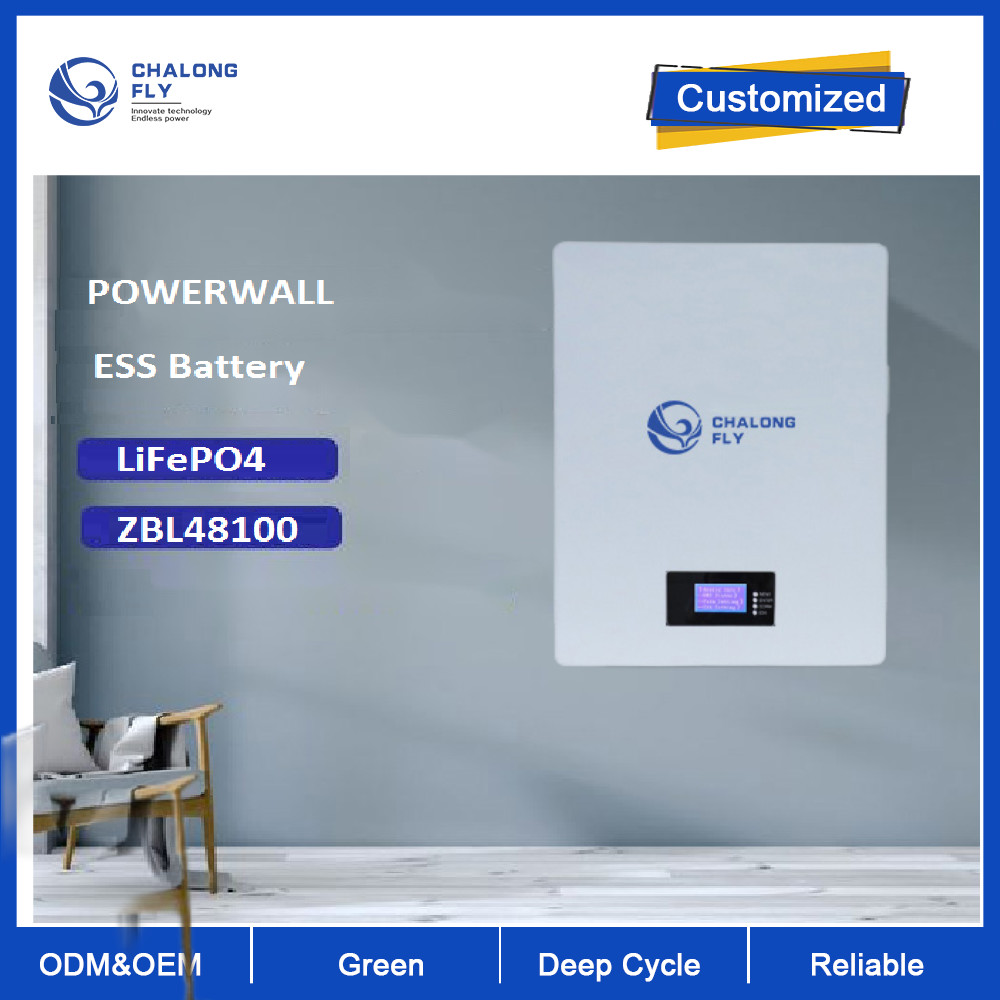

Powerwall 100Ah 5KW Lifepo4 Rechargeable Battery Wall Mounted For Solar Power System

Minimum Order Quantity : 10 units Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: ISO9001, UN38.3, CE, CB,MSDS Model Number: CLTF-0237

Detail Information

Rated Capacity:: 100Ah Nominal Voltage: 48V
Type: LiFePo4 Size: 680* 485* 180mm
High Light:

100Ah 5KW Lifepo4 Rechargeable Battery

,

Powerwall Lifepo4 Rechargeable Battery

,

Solar Power System 5KW Lifepo4 Battery

Product Description

Rechargeable Lifepo4 Powerwall 100Ah 5KW Lifepo4 Storage Battery For Solar Wall Mounted Power System



Specifications:

No. Item General Parameter Remark
1 Combination method 16S2P
2 Rated Capacity 100Ah Standard discharge after Standard charge
3 Factory Voltage 51V-53V(40-60%) Mean Operation Voltage
4 Voltage at end of discharge 40-44V Discharge Cut-off Voltage
5 Charging Voltage 56-58V
6 Internal Impedance ≤60mΩ Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
7 Standard charge Constant Current 20A Constant Voltage see No.5 0.02CA cut-off Charge time : Approx 6h Limiting current 20A
8 Standard discharge Constant current:20A end voltage see NO.4
9 Maximum Continuous Charge Current 100Ah ≥10ºC
10 Maximum Continuous Disharge Current 100Ah ≥10ºC
11 Operation Temperature Charge: 0~45 60±25%R.H. Bare Cell
Discharge -20~55
12 Storage Temperature Range Less than 12 months :-10~35 60±25%R.H. Bare Cell at the shipment state
less than 3 months: -10~45
Less than 7 day : -20~65
13 Dimensions 680*485*180 (220)mm Include Bracket
14 Weight Approx :70kg



Features:

1. High Energy: 5KWh energy storage, can meet 1 day electricity usage of Home.

2. Bank-up function: no need worry of out of electricity when any emergency situation.

3. Solar system. can work with Solar panels to storage Solar energy. save money and eco friendly

4. Save electricity fee. can adjust electricity usage when high price, and save more money.

5. Long service life: Lifepo4 battery Prismatic cell, can service 3000 times when left 80% energy, that is mean can service 10~15 years when High frequency of use.

6. Safe. Lifepo4 battery has no possibility of explosion when any usage condition, it is very safe to place it in house.

7. Save space . Wall mounted design, don't take up space.



Powerwall 100Ah 5KW Lifepo4 Rechargeable Battery Wall Mounted For Solar Power System 0Powerwall 100Ah 5KW Lifepo4 Rechargeable Battery Wall Mounted For Solar Power System 1Powerwall 100Ah 5KW Lifepo4 Rechargeable Battery Wall Mounted For Solar Power System 2Powerwall 100Ah 5KW Lifepo4 Rechargeable Battery Wall Mounted For Solar Power System 3



FAQs:


Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!


Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed


Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.


Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
