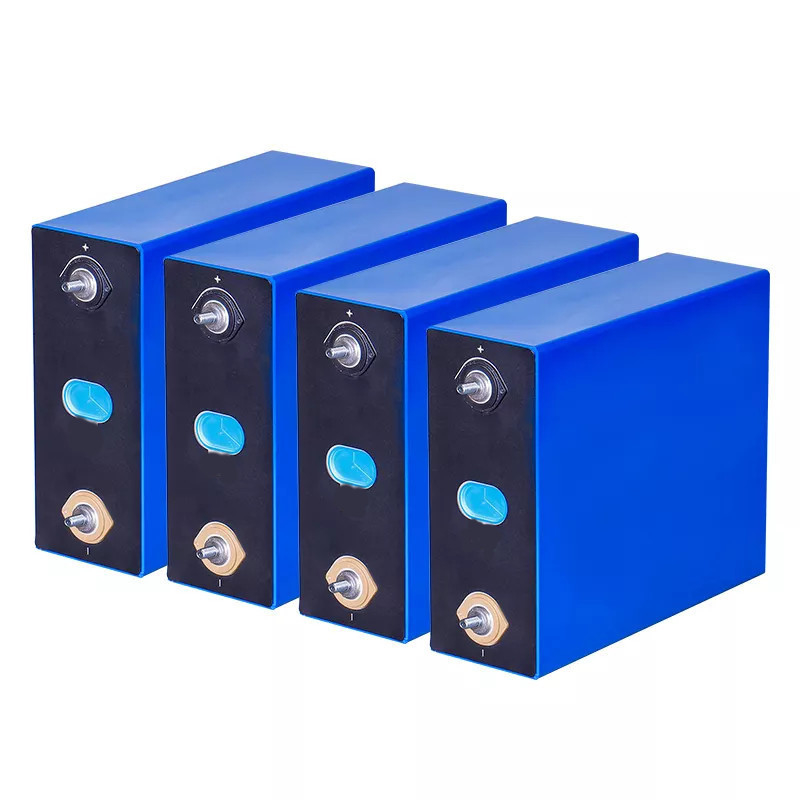

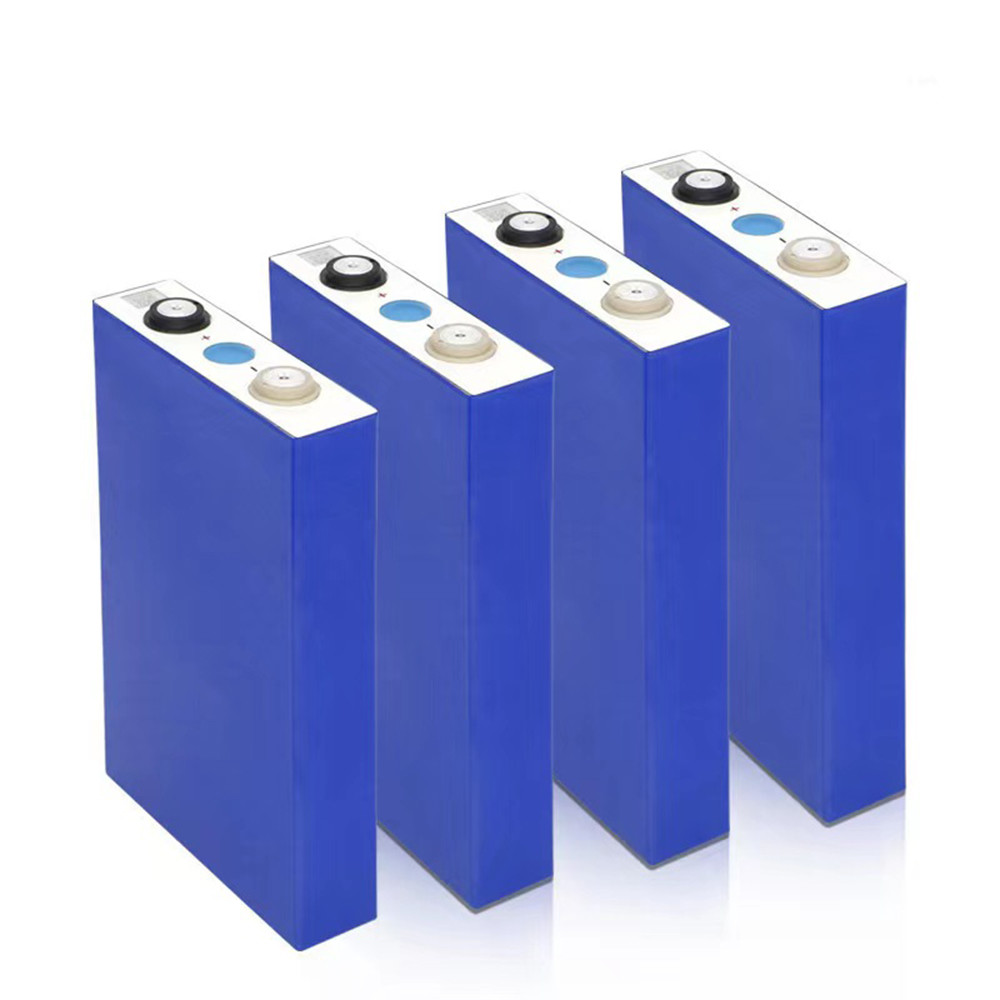

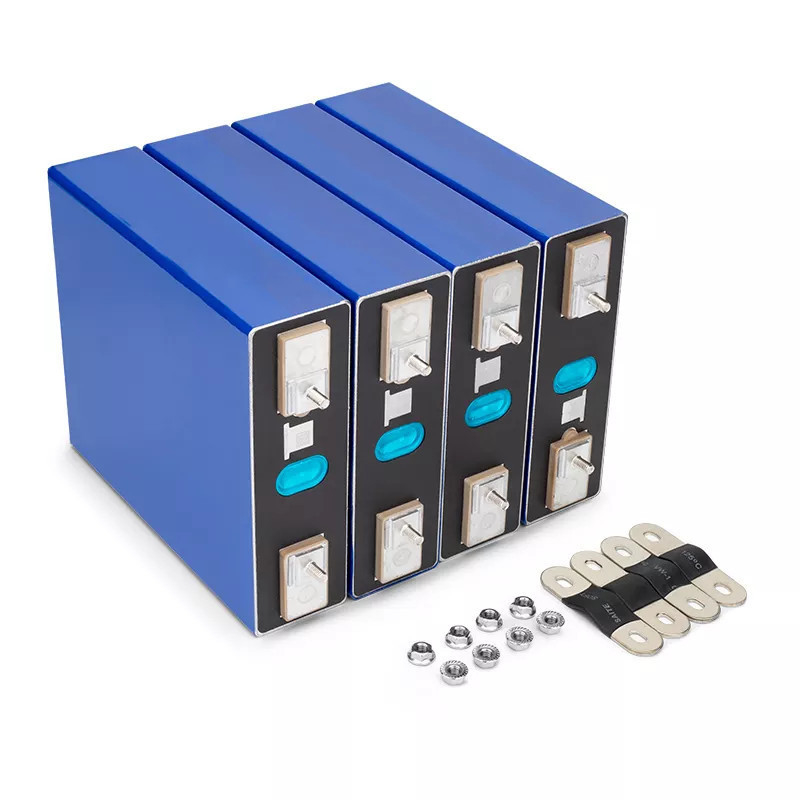

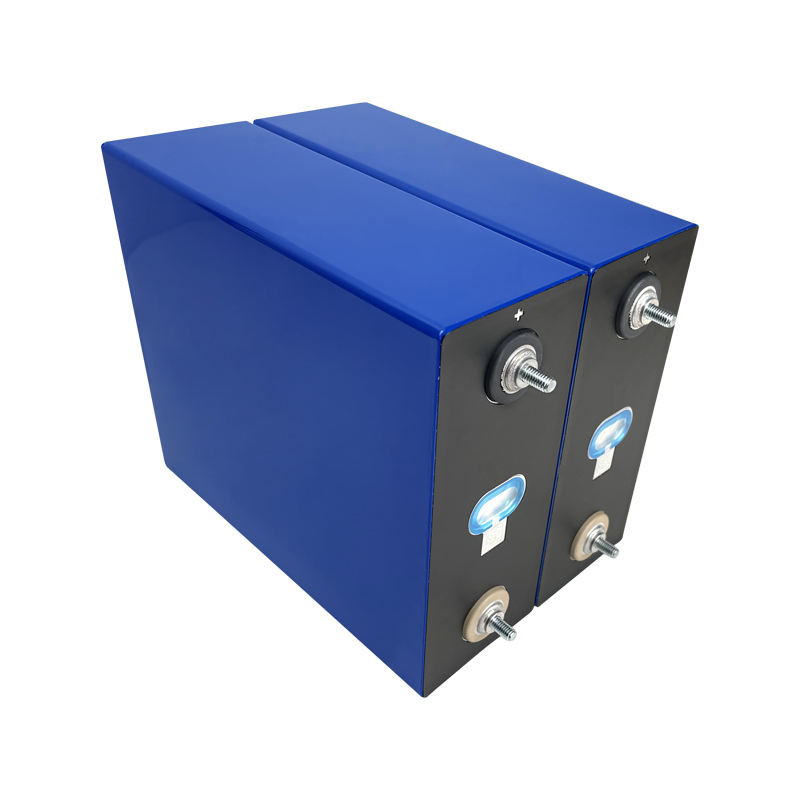

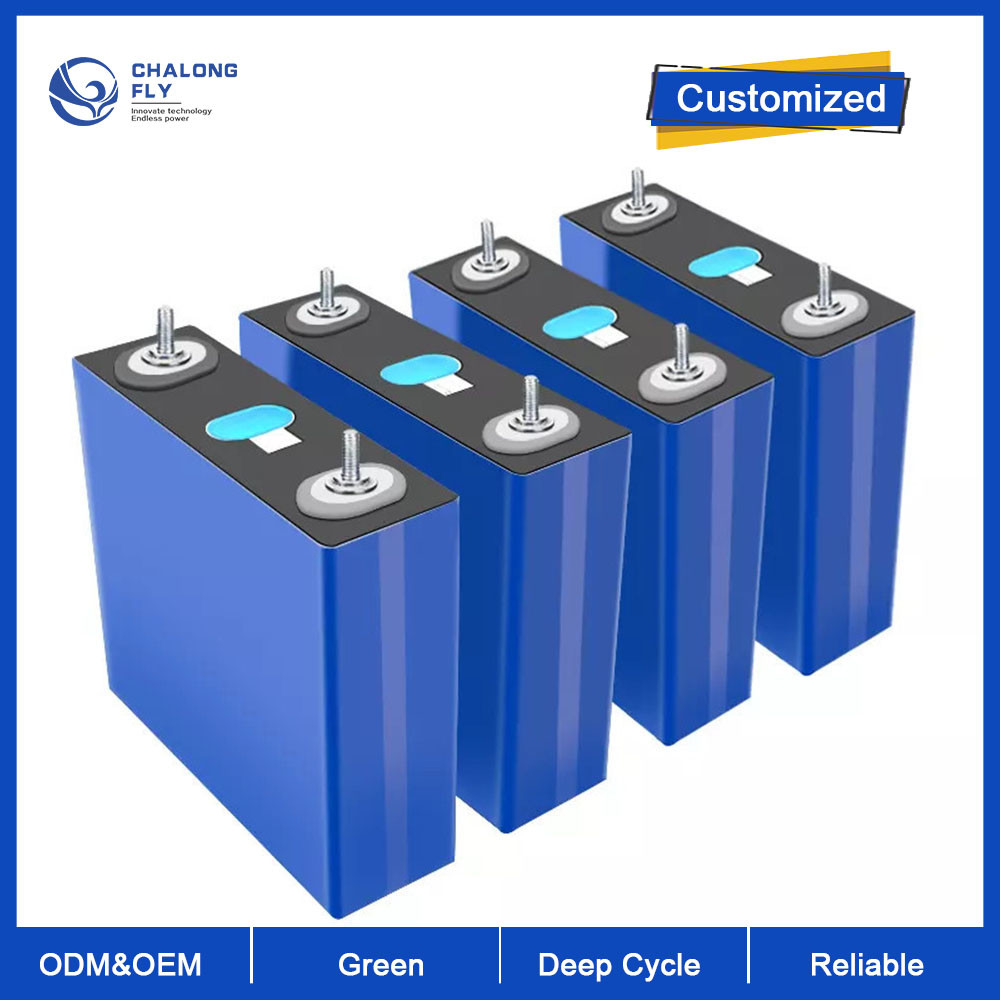

Lithium Battery 3.1V 50mah Sodium-ion Lithium Battery Lithium Rechargeable For 100KWH 150KWH Energy Storage System
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsAPP : +8618975107916
| Minimum Order Quantity : | 10-1000 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | ISO9001, UN38.3, CE, CB,MSDS | Model Number: | CLTF-0217 |
|
Detail Information |
|||
| Rated Capacity:: | 50AH/100AH/200AH/280AH/302AH/320AH | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Battery Type: | Lithium/LiFePo4 / NMC Battery | Battery Size: | 3.2v Lifepo4 Prismatic Cell |
| Certification: | CE/ROHS/MSDS/UN38.3 | Type: | 3.2V 280Ah LifePO4 Prismatic Cell |
| Usage: | Electric Vehicle, RV, Power, Boats, Golf Carts, Car | ||
| Highlight: | 3.2V 206ah Square Shell Cell,206Ah AL Shell Cell,Square LFP E Scooter Battery Pack |
||
Product Description
If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.
Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
| Item | Specification | Notes |
| Cell model | CLTF-0217 | *LFP |
| Shell | AL | *Prismatic |
| Nominal Capacity | 206Ah |
*2.5~3.65V *25A discharge current & Initial Status |
| Minimum Capacity | 206Ah |
*2.5~3.65V, at 23±2℃ *25A discharge current &Initial Status |
| Nominal Voltage | 3.2V | *N.A. |
| Operating Voltage Range | 2.50-3.65V | *100%DOD |
| Charging Voltage | 3.65V | *N.A. |
| Standard Charging Method | CCCV and CC is 0.5C | *N.A. |
| Max.Charge Current | 0.5C/2h | *Temperature23±2℃ |
| Standard Discharging Method | 0.5C/2h | *Constant Current Discharge with 0.5C |
| Max.Discharge Current |
1C/120s 2C/10s |
*Discharge Time: 1C Less than 120 s(at23±2℃) 2C Less than 10 s(at23±2℃) |
| Initial Inner Resistance(1KHz) | ≤0.4 mΩ |
*Initial Status *50% SOC |
| Cell Weight | 4.18Kg±30g | *N.A. |
| Self-discharge | ≤4% per month |
*25℃/50%SOC/within 3 months since date of manufacture |
| Cycle life | About 3000cycles | *at 25℃&Standard charge and discharge |
| Operating Temperature | 0℃～55℃ | *Charging Operating |
| -20℃～60℃ | *Discharging Operating |
Features:
1. Long cycle life: 6000times cycles,
2. Small size and lightweight: LiFePO4 battery size and weight is 1/3 of Lead acid battery
3. <1% low self-consuming rate
4. Built-in automatic protection for over-charge, over-discharge, over-current, and over-temperature control.
5. Can be charged using most standard lead-acid charges.
6. Green energy to protect our world better.
