CLF OEM ODM Golf Cart Forklift Motorcycle Lifepo4 Lithium Battery 36V 48V 72V BMS CAN RS485 6000cycles Lead Acid
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | ISO9001, UN38.3, CE, CB,MSDS | Model Number: | CLTF-0206 |
|
Detail Information |
|||
| Rated Capacity:: | 60Ah | Nominal Voltage: | 72V |
|---|---|---|---|
| Dimensions: | 410*235*170mm | Cell Type: | LiFePo4 |
| High Light: | LiFePo4 E Scooter Battery Pack 72V,EV NMC Pouch Cell |
||
Product Description

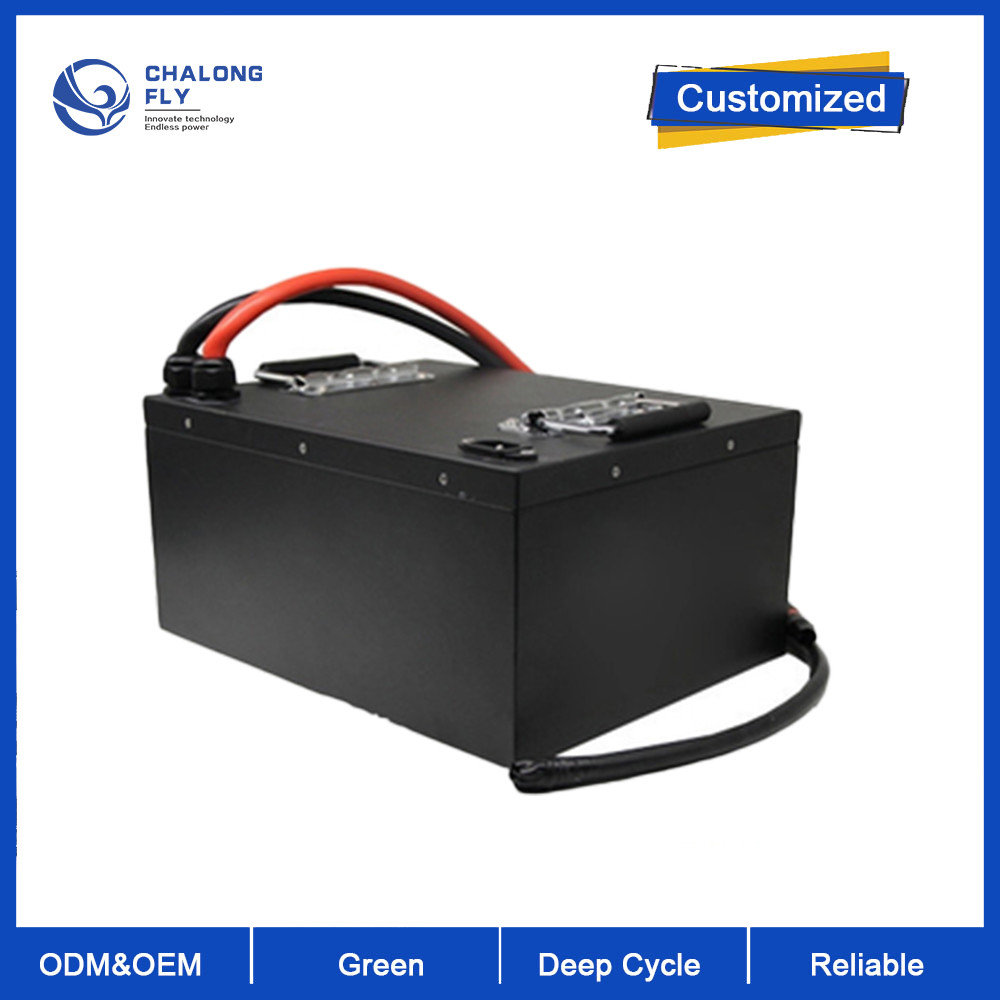

LiFePo4 E Scooter Battery Pack, 72V 60Ah EV/Truck Battery, 72V 60Ah NMC Pouch Cell
Specifications:
| Model | CLTF-0206 |
| ELECTRICAL SPECIFICATIONS | |
| Cell Type - Chemistry | NMC 60Ah pouch cell |
| Rated Capacity | 60Ah |
| Rated Voltage | 72V |
| Energy | 4320Wh |
| Resistance | 10mΩ |
| Self Discharge | <1.5% per month |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 410*235*170mm |
| Weight | About 24Kg |
| Enclosure Protection | IP67 |
| DISCHARGE/CHARGE SPECIFICATIONS | |
| Discharge Cut-off Voltage | 60V |
| Max Continuous Discharging Current | 50A |
| Peak Discharge Current | 80A for 3 seconds |
| Recommended Discharge Current | 50A |
| CHARGE SPECIFICATIONS | |
| Charging Limited Voltage | 84V |
| Max Charging Current | 50A |
| Recommended Charge Current | 15A |
| TEMPERATURE SPECIFICATIONS | |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
|
Storage Temperature & Humidity Range (Less than 1 month) |
-20~35℃, 45~75%RH |
|
Storage Temperature & Humidity Range (Less than 3 months) |
-10~35℃, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35℃, 45~75%RH |
| OEM | |
| Available on request | |
Applications:
72V 60Ah battery can be used for E-bike,E-scooter,E-wheelchair,Self-balancing scooter and other samll electric vehicle,etc.
Features:
1. Long lifetimes - >2000 cycles @80% DOD.
2. Easily replacement the original lead acid battery.
3.Self-engineered BMS with cell level monitor.
4. Short circuit/ Over current/Over voltage/Over temperature protection.
5. Bluetooth APP available on request to see the status of the battery.
6. Strong metal black color case with Anderson terminal.
7. OEM logo available. You can sent us your company logo before place the order.
FAQs:
Q: Are you manufacturer?
A: We are manufacturer, and we sincerely welcome you to visit our factory!
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Thanks to send us your requirements to custom the batteries.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Contact us for more information!
